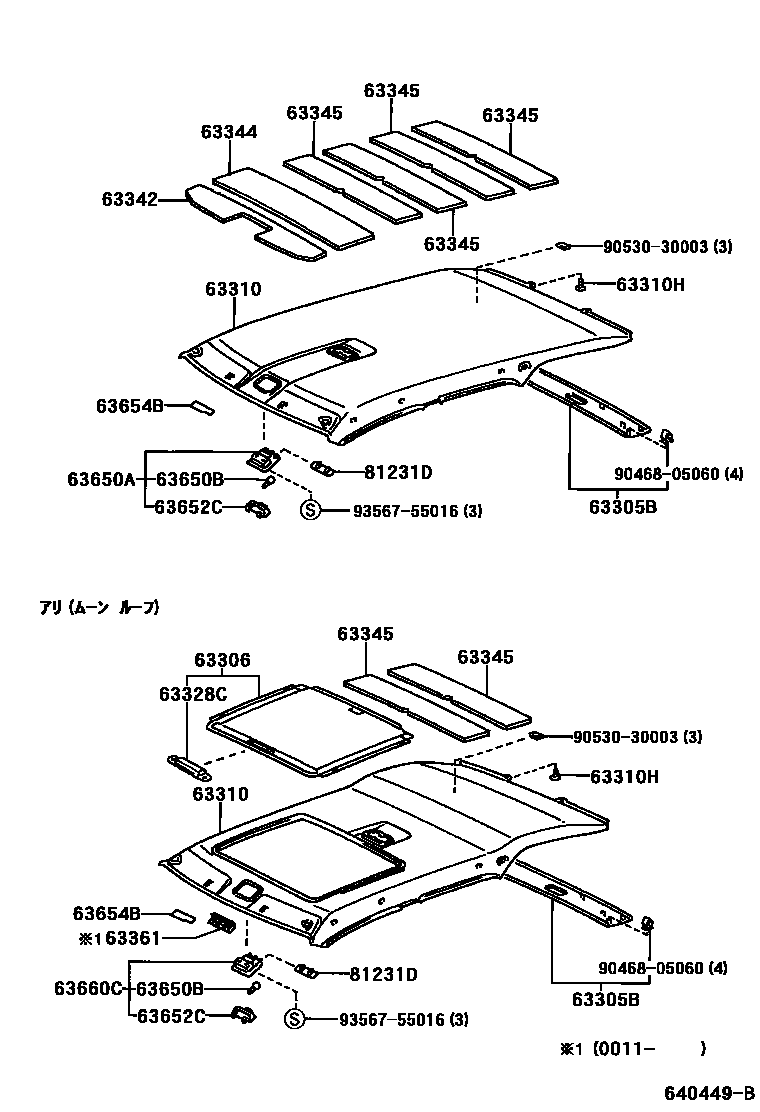

ROOF HEADLINING & SILENCER PAD

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main63305-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main63305-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

63306TRIM SUB-ASSY, SUNSHADE

main63306-48010-A0iMCU1#,SXU1#199712-199901

IVORY,TRIM0#

main63306-48010-A1iMCU1#,SXU1#199901-200011

IVORY,TRIM0#

main63306-48010-A2iACU1#,MCU1#200011

IVORY,TRIM0#

main63306-48010-B1iMCU1#,SXU1#199712-199901

MEDIUM GRAY,TRIM1#

main63306-48010-B2iMCU1#,SXU1#199901-200011

MEDIUM GRAY,TRIM1#

main63306-48010-B3iACU1#,MCU1#200011

LT.GRAY,TRIM2#

63310HEADLINING ASSY, ROOF

main63310-48010-A0iMCU1#,SXU1#199712-200011

IVORY,TRIM0#

main63310-48010-B1iMCU1#,SXU1#199712-200011

MEDIUM GRAY,TRIM1#

main63310-48030-A0iMCU1#,SXU1#199712-200011

main63310-48030-B1iMCU1#,SXU1#199712-200011

main63310-48050-A0iACU1#,MCU1#200011

IVORY,TRIM0#

main63310-48050-B0iACU1#,MCU1#200011

LT. GRAY,TRIM2#

main63310-48070-A0iACU1#,MCU1#200011

main63310-48070-B0iACU1#,MCU1#200011

63310HCLIP(FOR ROOF HEADLINING)

main90467-08056-C0×2iACU1#,MCU1#200107

BLACK,TRIM0#,2#

main90467-08186×2iMCU1#,SXU1#199712-200011

main90467-08186-C0×2iACU1#,MCU1#200011-200107

BLACK,TRIM0#,2#

63328CKNOB, SUNSHADE TRIM

main63328-12030-A1iACU1#,MCU1#,SXU1#199806

IVORY,TRIM0#

main63328-12030-B0iACU1#,MCU1#200011

LT.GRAY,TRIM2#

main63328-12030-B2iMCU1#,SXU1#199712-200011

BLUE GRAY,TRIM1#

63342PAD, ROOF SILENCER, NO.2

main63342-48010iACU1#,MCU1#,SXU1#199712

63344PAD, ROOF SILENCER, NO.4

main63344-48010iACU1#,MCU1#,SXU1#199712

63345PAD, ROOF SILENCER, NO.5

main63345-22050×2iACU1#,MCU1#,SXU1#199712

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-48020iACU1#,MCU1#200011

63650ABOX ASSY, ROOF CONSOLE

main63650-0W010-A1iMCU1#,SXU1#199712-199803

IVORY,TRIM0#

main63650-0W010-B1iMCU1#,SXU1#199712-199803

MD.GRAY,TRIM1#

main63650-0W011-A1iACU1#,MCU1#,SXU1#199803

IVORY,TRIM0#

main63650-0W011-B0iMCU1#,SXU1#199901-200011

BLUE GRAY,TRIM1#

main63650-0W011-B1iMCU1#,SXU1#199803-199901

MD.GRAY,TRIM1#

main63650-0W011-B3iACU1#,MCU1#200011

LT.GRAY,TRIM2#

63650BBULB, ROOF CONSOLE BOX

main90084-98049iACU1#,MCU1#,SXU1#199712

63652CCOVER, ROOF CONSOLE BOX

main63652-AA020-A1iMCU1#,SXU1#199712-199803

IVORY,TRIM0#

main63652-AA020-B3iMCU1#,SXU1#199712-199803

MD.GRAY,TRIM1#

main63652-AA021-A1iACU1#,MCU1#,SXU1#199803

IVORY,TRIM0#

main63652-AA021-B0iACU1#,MCU1#200011

LT.GRAY,TRIM2#

main63652-AA021-B1iMCU1#,SXU1#199901-200011

BLUE GRAY,TRIM1#

main63652-AA021-B3iMCU1#,SXU1#199803-199901

MD.GRAY,TRIM1#

63654BCOVER, ROOF CONSOLE BOX, INNER

main63654-33010iACU1#,MCU1#,SXU1#199712

63660CBOX ASSY, ROOF CONSOLE W/O RELAY

main63660-0W010-A1iMCU1#,SXU1#199712-199803

IVORY,TRIM0#

main63660-0W010-B2iMCU1#,SXU1#199712-199803

MD.GRAY,TRIM1#

main63660-0W011-A1iACU1#,MCU1#,SXU1#199803

IVORY,TRIM0#

main63660-0W011-B0iACU1#,MCU1#200011

LT.GRAY,TRIM2#

main63660-0W011-B1iMCU1#,SXU1#199901-200011

BLUE GRAY,TRIM1#

main63660-0W011-B2iMCU1#,SXU1#199803-199901

MD.GRAY,TRIM1#

81231DLENS, COURTESY

main81231-0W010iACU1#,MCU1#,SXU1#199712

main81231-AA010iACU1#,MCU1#,SXU1#199712

9046805060

main90468-05060

9053030003

main90530-30003

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
