17781BSEAL, AIR CLEANER INLET

main17781-20020i199712

51481BBRACKET, UNDER GUARD, FRONT RH

main51481-48010i199712

51482BRACKET, UNDER GUARD, FRONT LH

main51482-48010i199712

51485BRACKET, UNDER GUARD, REAR NO.1

main51485-48010i199712

main51486-48010i199712

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-48901i199712

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-48901i199712

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-48900i199712-200011

main57101-48902i200011

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-48900i199712-200011

main57102-48902i200011-200302

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-33020i199712

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-33020i199712

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-48010i199712-200011

main57107-48011i200011

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-48010i199712-200011

main57108-48011i200011

57111MEMBER, FRONT SIDE, RH

main57111-48010i199712

57112MEMBER, FRONT SIDE, LH

main57112-48010i199712

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-48010i199712

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-48010i199712-200004

main57114-48011i200004

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-48010i199712

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-48010i199712

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-48010i199712

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-48010i199712

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-48010i199712

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-48010i199712

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-48010i199712

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-48010i199712

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-48010i199712

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-48010i199712

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-48010i199712

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-48010i199712

57417CREINFORCEMENT, FRONT FLOOR UNDER

main57417-48901i199712

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-48901i199712

57448ABRACKET, DIFF LOCK LEVER MOUNT, NO.1

main57448-48010i199712

57449ABRACKET, DIFF LOCK LEVER MOUNT, NO.2

main57449-48010i199712-199809

main57449-48011i199809

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-48010i199712

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-48010i199712

57458APLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH

main57458-48010i199712-200301

main57458-48011i200301

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-48010i199712-200206

main57459-48011i200206-200301

main57459-48012i200301

57468DBRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-48010i199712

57469CBRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57468-48010i199712

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-48901i199712-200212

main57601-48906i200212

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-48901i199712-200212

main57602-48906i200212

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57652-48901i199712

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-48900i200007-200212

main57615-48901i199712-200007

main57615-48902i200212

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-48900i200007-200212

main57616-48901i199712-200007

main57616-48902i200212

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-48010i199712-200207

main57653-48011i200207

main57653-48020i200011-200207

main57653-48021i200207

57663EMEMBER, REAR FLOOR CROSS, CENTER

main57663-48010i199712-200007

main57663-48011i200007-200011

main57663-48020i200011-200206

main57663-48021i200206

57665BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57665-48010i200011

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-48010i199712

58117BREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-48010i199712

main58117-48020i199712

58118DREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-48010i199712

main58118-48020i199712

58255GMEMBER, FRONT FLOOR CROSS

main58255-48010i199712

58365DBRACKET, FUEL TANK SUPPORT, RH

main58365-48010i199712

58366BBRACKET, FUEL TANK SUPPORT, LH

main58366-48010i199712-200007

main58366-48011i200007

7402BATTERY CARRIER

→ Go to FIG 74-02

5717148010BRACKET, CROSSMEMBER FLOOR, NO.1

main57171-48010

9018906006

main90189-06006

9018906150

main90189-06150

9033330008

main90333-30008

9095001259

main90950-01259

9095001451

main90950-01451

9095001512

main90950-01512

9095001513

main90950-01513

9095001539

main90950-01539

9095001618

main90950-01618

9095001685

main90950-01685

9095001762

main90950-01762

9095001808

main90950-01808

9095001833

main90950-01833

9095001841

main90950-01841

9095001890

main90950-01890

9095001948

main90950-01948

9095001955

main90950-01955

9095001956

main90950-01956

9095001966

main90950-01966

9095006001

main90950-06001

91511B0610

main91511-B0610

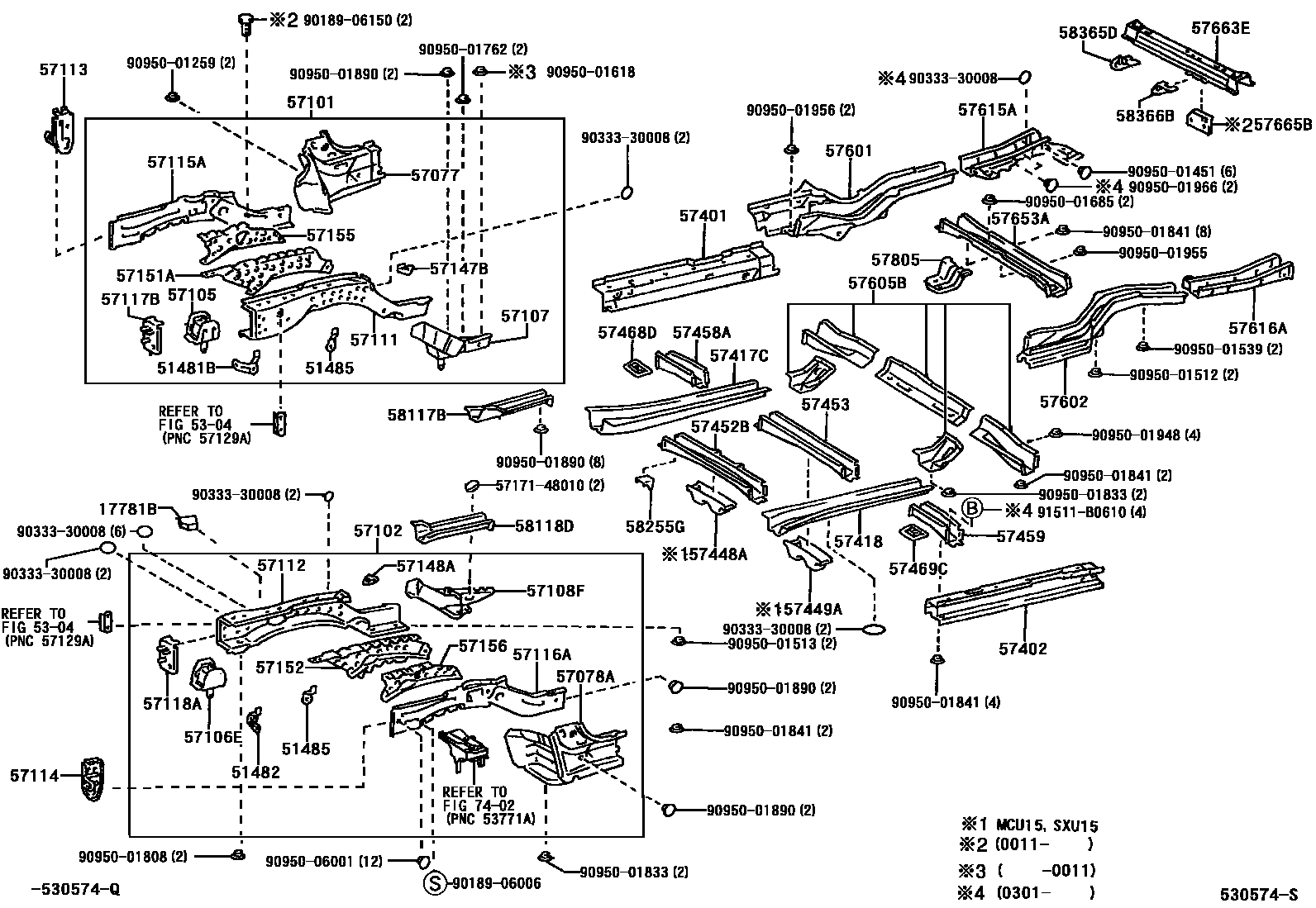

FLOOR SIDE MEMBER
