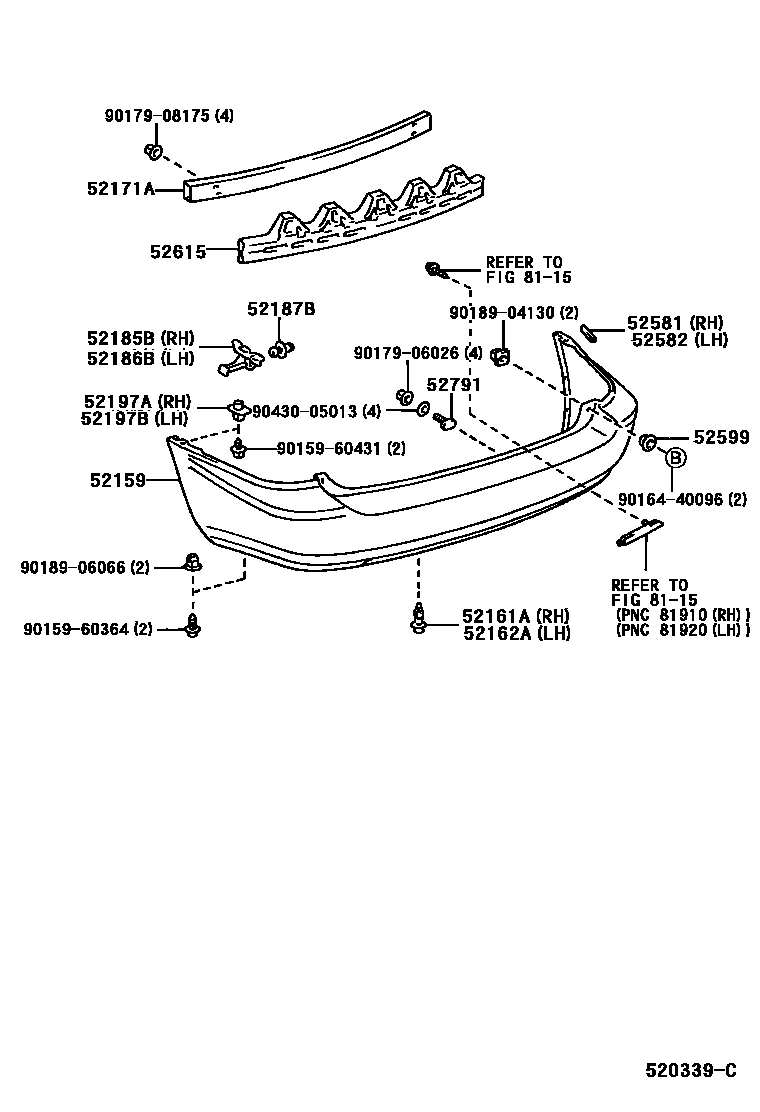

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
LT.GRAY M.M.,065
LT.GRAIGE ME.,4P2
GRAY M.M.,1C6
DK. GRAY M.,202
RED MC.,3M8
DK. GRAY M.,202
GRAYISH BLUE M.M.,8P6
DK.BLUE ME,8P4
YELLOW SILVER,057
YELLOW SILVER,057
GRAY ME.,6R1
GRAY ME.,6R1
GRAY ME.,1C0
NIGHT BLUE M,8L4
GRAY ME.,1C0
52161APIECE, REAR BUMPER, RH
52162APIECE, REAR BUMPER, LH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187BGUIDE, REAR BUMPER LOCATION
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52599STOPPER, REAR BUMPER, UPPER
52615ABSORBER, REAR BUMPER ENERGY
52791BOLT, BUMPER MOULDING SET, NO.1
8115REFLEX REFLECTOR
9015960364
main90159-60364
9015960431
main90159-60431
9016440096
main90164-40096
9017906026
main90179-06026
9017908175
main90179-08175
9018904130
main90189-04130
9018906066
main90189-06066
9043005013
main90430-05013
23 parts on this diagram · 1 diagram in section
