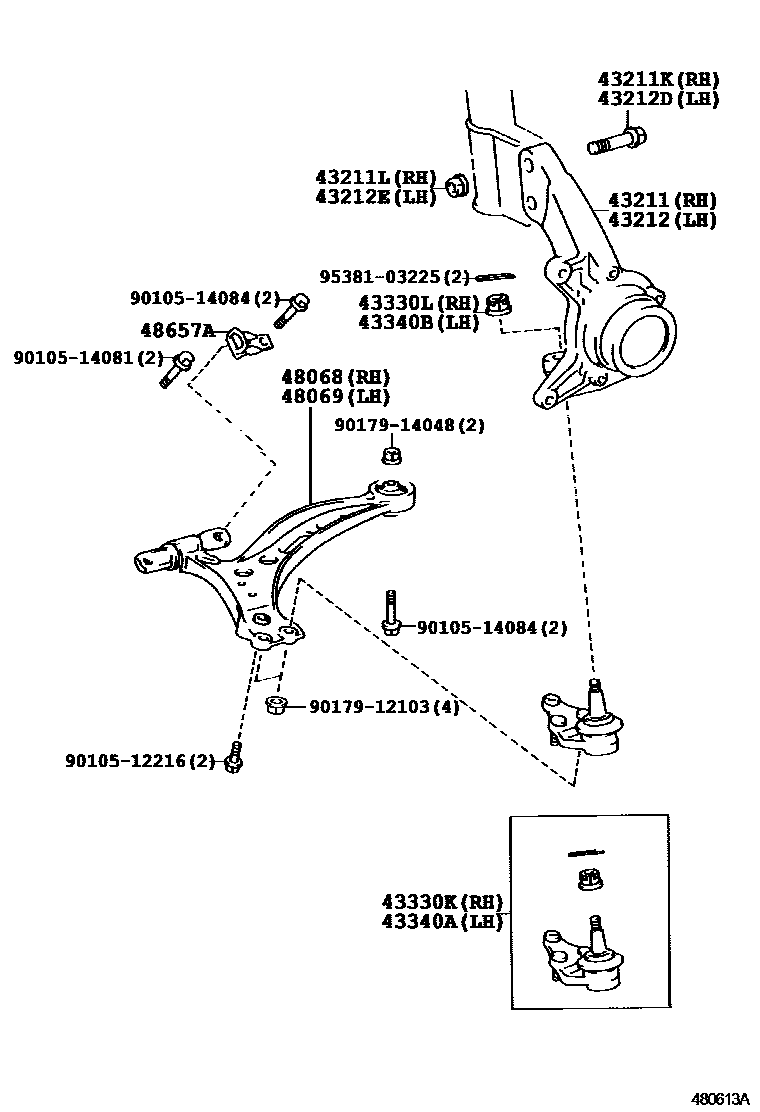

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-33070iACU1#,MCU1#,SXU1#199712

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17001×2iACU1#,MCU1#,SXU1#199712

main90105-17003iACU1#,MCU1#,SXU1#199712

main90105-17004iACU1#,MCU1#,SXU1#199712

main90105-17005iACU1#,MCU1#,SXU1#199712

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-17001×2iACU1#,MCU1#,SXU1#199712

43212KNUCKLE, STEERING, LH

main43212-33070iACU1#,MCU1#,SXU1#199712

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17001×2iACU1#,MCU1#,SXU1#199712

main90105-17003iACU1#,MCU1#,SXU1#199712

main90105-17004iACU1#,MCU1#,SXU1#199712

main90105-17005iACU1#,MCU1#,SXU1#199712

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-17001×2iACU1#,MCU1#,SXU1#199712

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39435iACU1#,MCU1#,SXU1#199712

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iACU1#,MCU1#,SXU1#199712

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39435iACU1#,MCU1#,SXU1#199712

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iACU1#,MCU1#,SXU1#199712

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-48010iACU1#,MCU1#,SXU1#199712

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-48010iACU1#,MCU1#,SXU1#199712

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-33020×2iACU1#,MCU1#,SXU1#199712

9010512216

main90105-12216

9010514081

main90105-14081

9010514084

main90105-14084

9017912103

main90179-12103

9017914048

main90179-14048

9538103225

main95381-03225

19 parts on this diagram · 1 diagram in section
