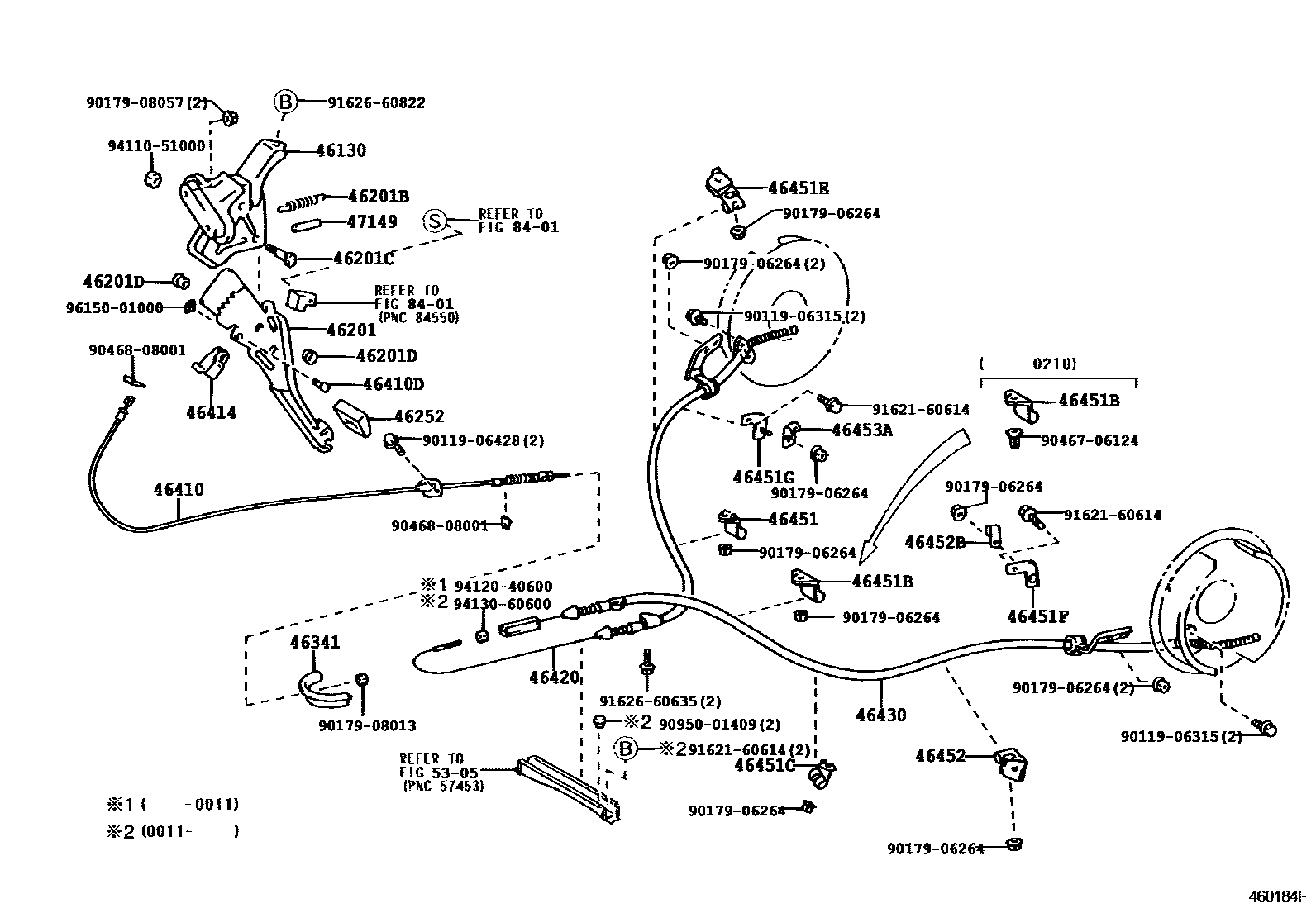

PARKING BRAKE & CABLE
46130BRACKET ASSY, PARKING BRAKE PEDAL
46201PEDAL SUB-ASSY, PARKING BRAKE
46201BSPRING, TENSION
46201CSHAFT, PEDAL
46201DBUSH(FOR PARKING BRAKE PEDAL)
46252PAD, PARKING PEDAL
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
46410DPIN(FOR PARKING BRAKE FRONT CABLE)
46414CLEVIS, PARKING CABLE
46420CABLE ASSY, PARKING BRAKE, NO.2
46430CABLE ASSY, PARKING BRAKE, NO.3
46451BRACKET, CABLE SUPPORT
46451BBRACKET, PARKING BRAKE CABLE SUPPORT
46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451EBRACKET, CABLE GUIDE SUPPORT, NO.1
46451FBRACKET, CABLE SUPPORT
46451GBRACKET, CABLE SUPPORT
46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452BBRACKET, CABLE SUPPORT, NO.2
46453ABRACKET, CABLE SUPPORT, NO.3
47149DAMPER, RETURN SPRING
5305FLOOR SIDE MEMBER
8401SWITCH & RELAY & COMPUTER
9011906315
main90119-06315
9011906428
main90119-06428
9017906264
main90179-06264
9017908013
main90179-08013
9017908057
main90179-08057
9046706124
main90467-06124
9046808001
main90468-08001
9095001409
main90950-01409
9162160614
main91621-60614
9162660635
main91626-60635
9162660822
main91626-60822
9411051000
main94110-51000
9412040600
main94120-40600
9413060600
main94130-60600
9615001000
main96150-01000
39 parts on this diagram · 2 diagrams in section
