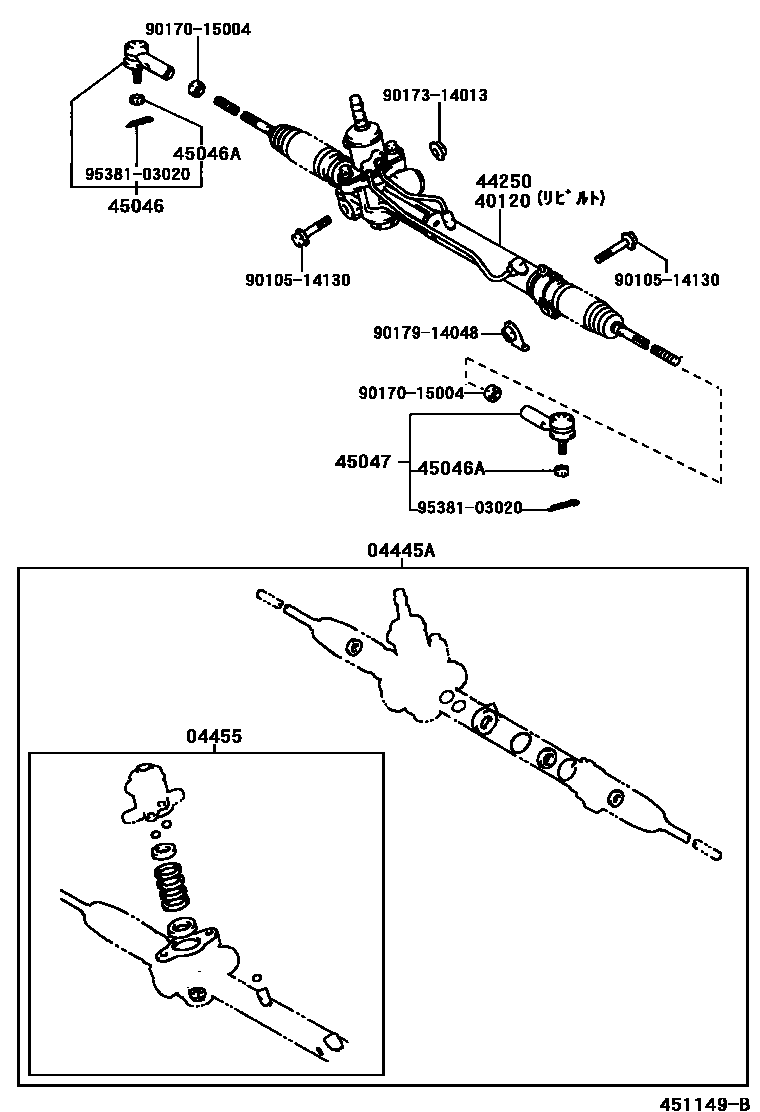

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-33080iMCU1#,SXU1#199712-200011

main04445-48020iACU1#,MCU1#200011

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-33020iMCU1#,SXU1#199712-200011

main04455-48020iACU1#,MCU1#200011

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-48010iMCU1#,SXU1#199712-200007

sub40120-48030

main40120-48030iMCU1#,SXU1#200007-200011

sub40120-48031

main40120-48031iACU1#,MCU1#200011

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-48010iMCU1#,SXU1#199712-200007

sub44250-48030

main44250-48030iMCU1#,SXU1#200007-200011

sub44250-48031

main44250-48031iACU1#,MCU1#200011-200209

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iACU1#,MCU1#,SXU1#199712

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iACU1#,MCU1#,SXU1#199712

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iACU1#,MCU1#,SXU1#199712

9010514130

main90105-14130

9017015004

main90170-15004

9017314013

main90173-14013

9017914048

main90179-14048

9538103020

main95381-03020

12 parts on this diagram · 4 diagrams in section
