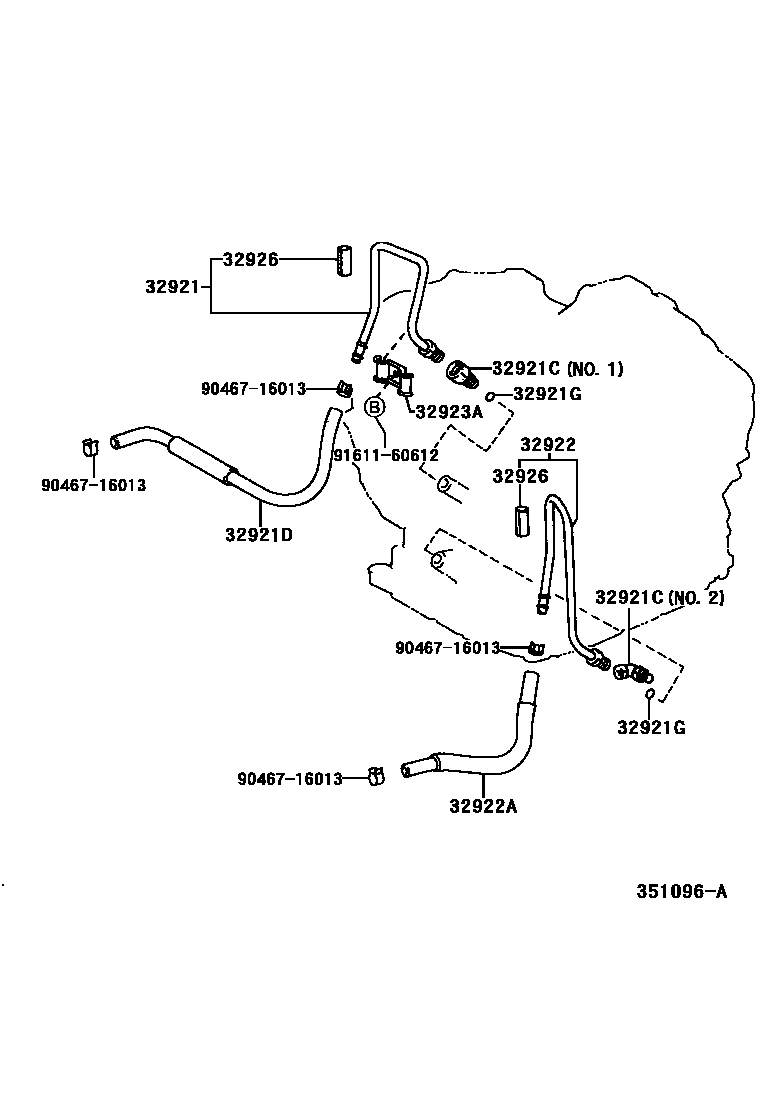

OIL COOLER & TUBE (ATM)

0001 1U140E,U140F 0002 1U140E,U140F 0003 1U140F,U241E

32921TUBE, OIL COOLER INLET, NO.1

main32921-48020iMCU1#,SXU1#199712-200012

main32921-48080iACU1#200011-200012

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iSXU1#199810-200011

main90404-16031iACU1#,MCU1#199810

main90407-16010iACU1#,MCU1#,SXU1#199712

32921DHOSE(FOR OIL COOLER INLET)

main90445-17115iMCU1#,SXU1#199712-200012

main90445-17170iACU1#,MCU1#200012

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACU1#,MCU1#,SXU1#199712

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-48020iMCU1#,SXU1#199712-200012

main32922-48030iACU1#200011

main32922-48070iMCU1#200012

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-48010iMCU1#,SXU1#199712-200012

main32942-48020iMCU1#200012

main90445-17169iACU1#200011

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iACU1#,MCU1#,SXU1#199712

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iACU1#,MCU1#,SXU1#199712

9046716013

main90467-16013

9161160612

main91611-60612

10 parts on this diagram · 3 diagrams in section
