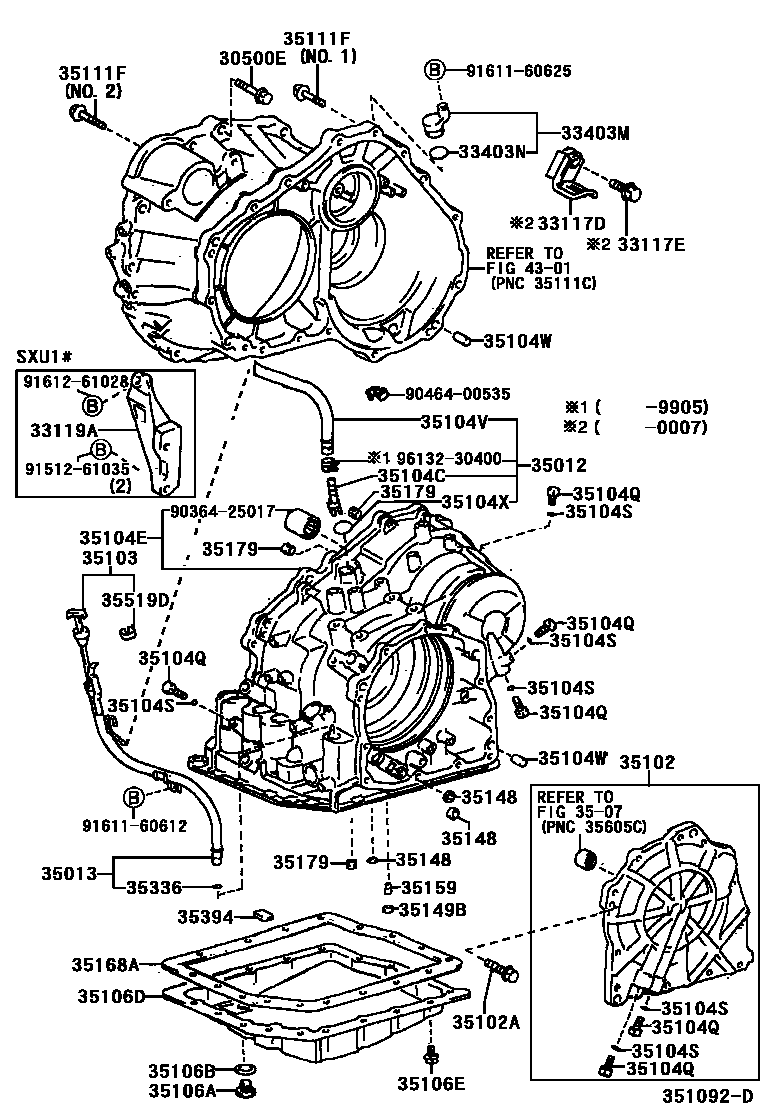

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U140E,U140F 0002 1U140F,U241E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iSXU1#199712-200011

main90105-10425iMCU15,SXU1#199712

main90119-12168×3iACU1#,MCU1#199712

main90119-12250iMCU1#199712

main91612-61050iACU1#200011

main91612-61065iACU1#200011

main91619-61265iMCU1#199712

main91651-61022×2iSXU1#199712-200011

main92412-H1055iMCU10199712

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-21010iMCU1#,SXU1#199712-200007

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iMCU1#,SXU1#199712-200007

33119APLATE, STIFFENER, LH(ATM)

main33119-32020iSXU1#199712-200011

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iACU10200011

main33403-21020iACU15,MCU1#,SXU1#199712

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-18018iACU15,MCU1#,SXU1#199712

main96711-24018iACU10200011

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-48010iMCU1#,SXU1#199801

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-48020iMCU1#199712-200011

main35013-48030iSXU1#199712-200011

main35013-48040iACU1#200011

main35013-48050iMCU1#200011

3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

→ Go to FIG 35-07

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-28010iACU15200011

main35102-28020iACU10200011

main35102-48010iMCU1#,SXU1#199712-200010

main35102-48011iMCU1#,SXU1#200010

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iACU1#,MCU1#,SXU1#199712

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-48011iMCU15,SXU15199712-199804

main35103-48013iMCU15,SXU15199804-199908

main35103-48014iMCU15,SXU15199908-200011

main35103-48021iMCU10,SXU10199712-199804

main35103-48023iMCU10,SXU10199804-199908

main35103-48024iMCU10,SXU10199908-200011

main35103-48040iMCU10200011

main35103-48050iACU15,MCU15200011

main35103-48060iACU10200011

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iACU1#,MCU1#,SXU1#199712

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-21010iMCU1#,SXU1#199712-200010

main35104-21011iMCU1#,SXU1#200010

main35104-28080iACU15200011-200108

main35104-28081iACU15200108

main35104-28090iACU10200011-200108

main35104-28091iACU10200108

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×8iACU1#,MCU1#,SXU1#199712

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×8iACU1#,MCU1#,SXU1#199712

35104VHOSE (FOR BREATHER PLUG)

main35121-48010iACU1#200011

main90445-11140iMCU1#,SXU1#199712

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×4iACU1#200011

main90250-10036×4iMCU1#,SXU1#200009

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iACU1#,MCU1#,SXU1#199712

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iACU1#,MCU1#,SXU1#199712

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iACU1#,MCU1#,SXU1#199712

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-21010iMCU1#,SXU1#199712-199804

main35106-21020iMCU1#,SXU1#199804-200102

main35106-28080iACU10200011

main35106-28090iACU15200011

main35106-33030iMCU1#200102

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iACU1#,MCU1#,SXU1#199712

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08066iACU1#200108

main90105-08233×8iACU15,MCU1#,SXU1#199712

main90105-08353×7iACU10,MCU1#; ACU15200108

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010×3iACU1#,MCU1#,SXU1#199712

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iACU1#,MCU1#,SXU1#199712

35159GASKET, BRAKE DRUM

main35159-21010iACU1#,MCU1#,SXU1#199712

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iACU1#,MCU1#,SXU1#199712-200205

main35168-21011iMCU1#200205

35179GASKET, OVERDRIVE BRAKE

main35179-32010×3iMCU1#,SXU1#199712-200010

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iACU1#,MCU1#,SXU1#199712

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iACU1#,MCU1#,SXU1#199712-200012

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iACU10,MCU10,SXU10199908

main35519-21020iMCU15,SXU15199712-199908

main35519-30010iMCU10,SXU10199712-199908

main35519-52010iACU15,MCU15,SXU15199908

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9036425017

main90364-25017

9046400535

main90464-00535

9151261035

main91512-61035

9161160612

main91611-60612

9161160625

main91611-60625

9161261028

main91612-61028

9613230400

main96132-30400

40 parts on this diagram · 2 diagrams in section
