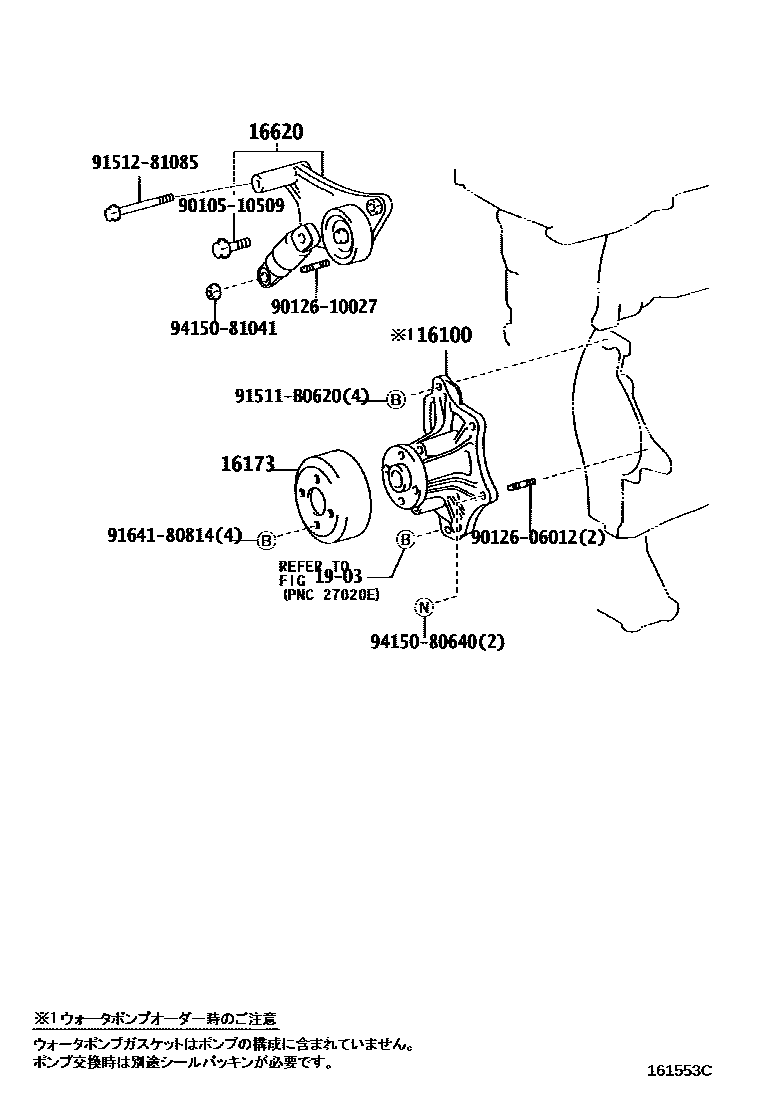

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i2AZFE..ACU1#200011

main16100-29085i1MZFE..MCU1#199712

main16100-79185i5SFE..SXU1#199712

16173PULLEY, WATER PUMP

main16173-28020i2AZFE..ACU1#200011

16620TENSIONER ASSY, V-RIBBED BELT

main16620-28010i2AZFE..ACU1#200011-200111

main16620-28011i2AZFE..ACU1#200111

1903ALTERNATOR

→ Go to FIG 19-03

9010510509

main90105-10509

9012606012

main90126-06012

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

12 parts on this diagram · 3 diagrams in section
