VENTILATION HOSE

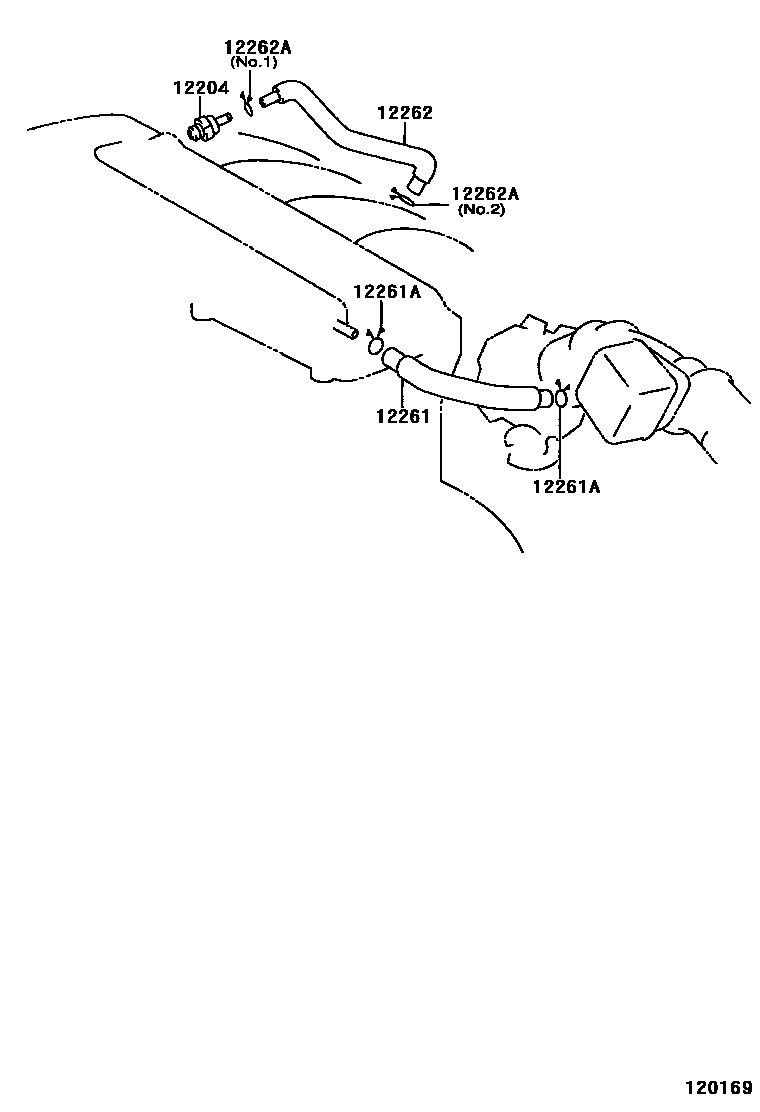

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-20010i199712-200101
main12204-20040i200101
main12204-28020i200011
main12204-74030i199712
12261HOSE, VENTILATION
main12260-74060i199712-199904
main12261-20011i199712
main12261-28030i200011
main12261-74230i199904
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i199712
main90467-15016i199712
sub96135-51400
main90467-16003i199712
sub96134-51500
main90467-19003i200011
12262HOSE, VENTILATION, NO.2
main12261-20020i199712
main12262-28020i200011-200104
sub12262-28021
main12262-28021i200104
main12262-74100i199712
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i200011
main90467-14043i199712
main90467-16035i200011
main90467-17011i199712
sub96134-51700
main90467-20005i199712-200204
sub96134-41900
main96134-41900i200204

5 parts on this diagram · 3 diagrams in section
