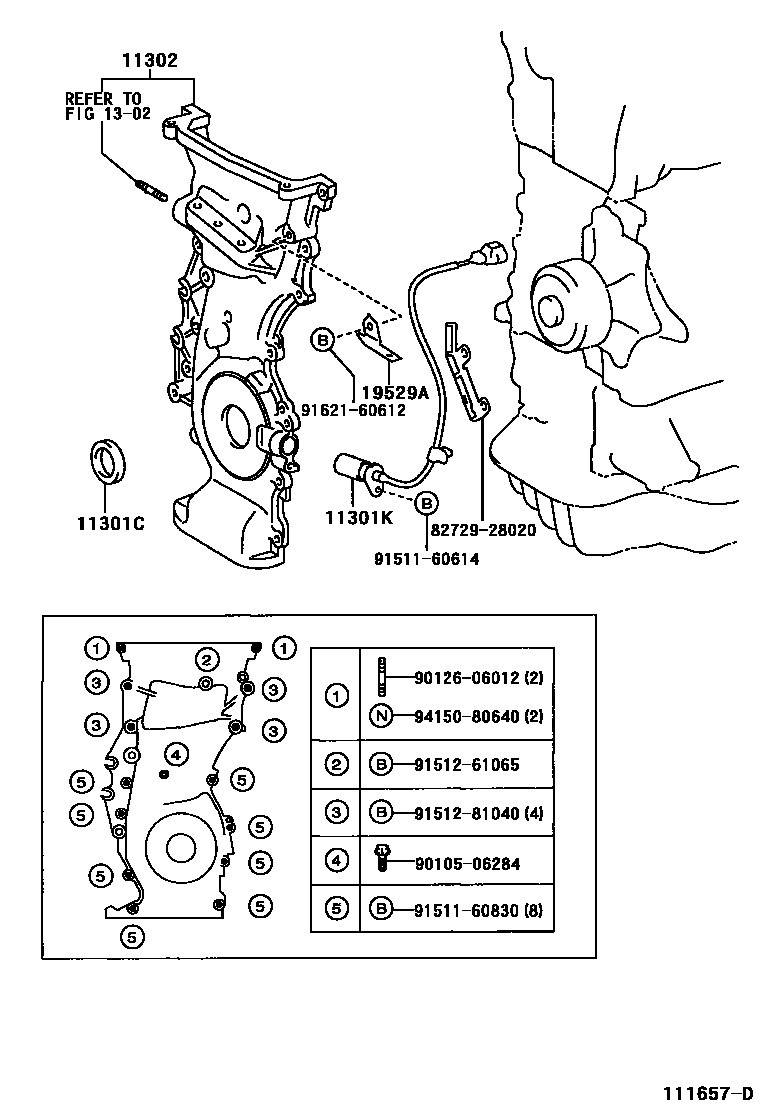

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38078i2AZFE..ACU1#200011-200212

sub90311-38089

main90311-38084i2AZFE..ACU1#200212-200302

11301KSENSOR, CRANK POSITION

main90919-05047i2AZFE..ACU1#200011

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-74040i5SFE..SXU1#199712

main11310-28070i2AZFE..ACU1#200011

1302

19529ACLAMP

main19529-28010i2AZFE..ACU1#200011

8272928020

main82729-28020

9010506284

main90105-06284

9012606012

main90126-06012

9151160614

main91511-60614

9151160830

main91511-60830

9151261065

main91512-61065

9151281040

main91512-81040

9162160612

main91621-60612

9415080640

main94150-80640

14 parts on this diagram · 3 diagrams in section
