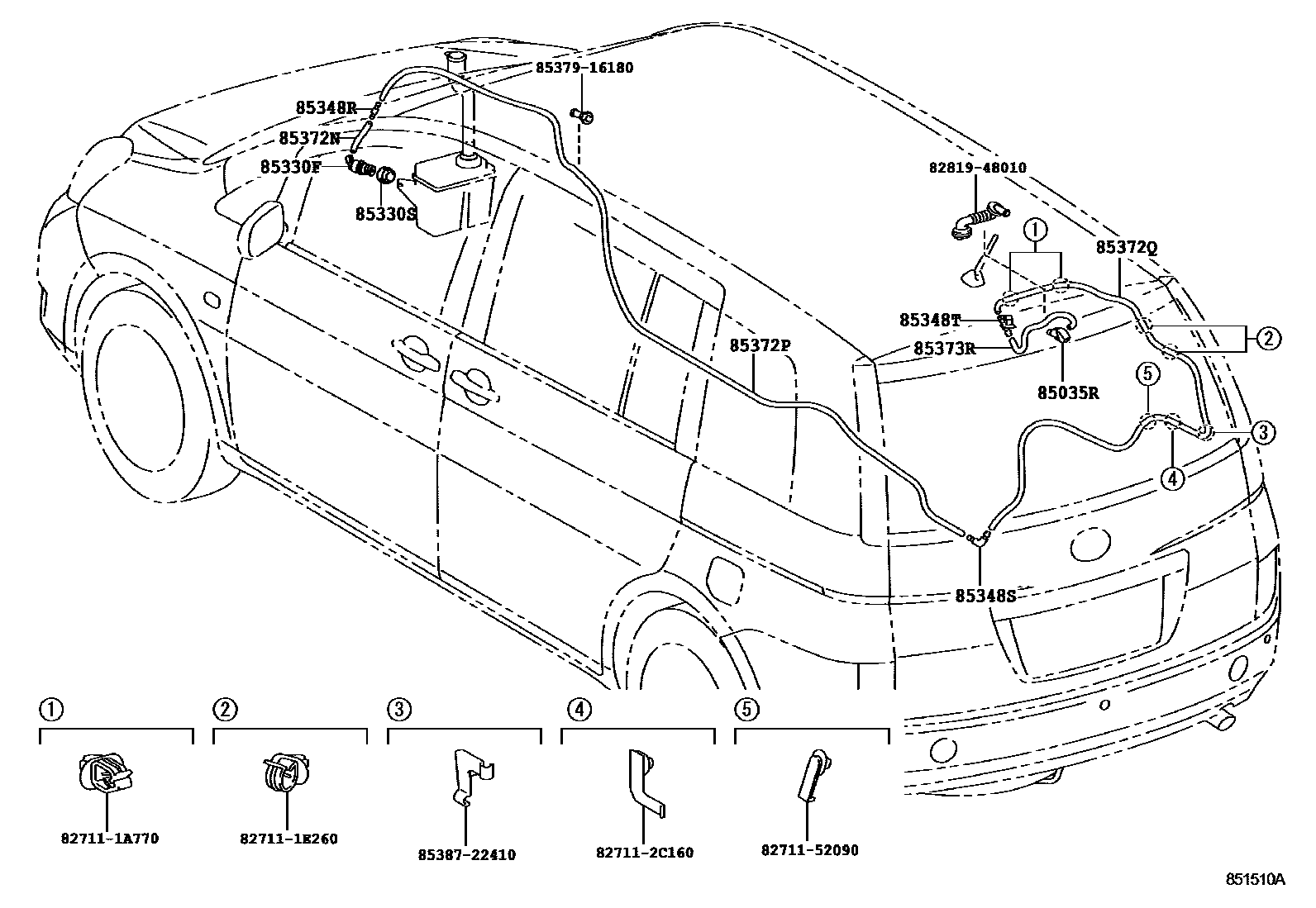

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-44040iZGM1#200909

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iANM1#,ZNM10200409-200909

85330SBUSH, REAR WASHER JAR

main85336-60300iANM1#,ZNM10200409-200909

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iANM1#,ZNM10200409-200909

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iANM1#,ZNM10200409-200909

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-20800iANM1#,ZNM10200409-200909

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iANM1#,ZNM10200409-200909

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59167iANM1#,ZNM10200409-200909

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33589iZGM1#200909

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080supersedes 90099-33299iZGM1#200909

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C160

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8281948010GROMMET, WIRING HARNESS

main82819-48010

8537916180JOINT

main85379-16180

8538722410CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410

17 parts on this diagram · 1 diagram in section
