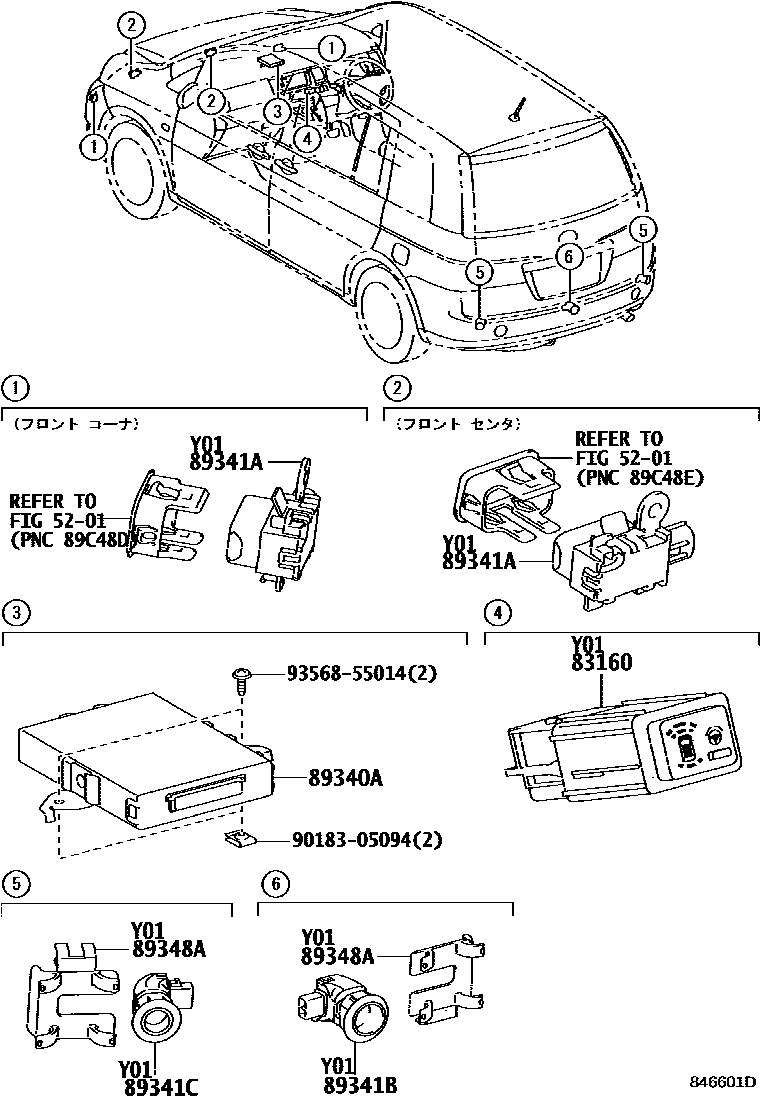

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

83160INDICATOR ASSY, CLEARANCE WARNING

main83160-44010iZGM1#..G,L200909-201604

main83160-44020iANM1#,ZNM10..G,L200409-200512

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-44070iANM10,ZNM10..G,L200409-200501

main89340-44071iANM10,ZNM10..G,L200502-200512

main89340-44090iANM15..G,L200409-200503

main89340-44091iANM15..G,L200512-200705

main89340-44140iANM10,ZNM10..G,L200705-200909

main89340-44150iANM15..G,L200705-200909

main89340-44160iZGM10,11..G,L200909-201604

main89340-44170iZGM15..G,L200909-201310

89341ASENSOR, ULTRASONIC, NO.1

main89341-44150-A0×4iANM1#,ZNM10..G,L; ANM15..G,L200409-200705

main89341-44150-A4×4iANM1#,ZNM10..G,L; ANM15..G,L200705-200909

main89341-44150-B0×4iANM1#,ZNM10..G,L; ANM15..G,L200409-200909

main89341-44150-C1×4iZGM15..G,L201106-201310

main89341-44150-C2×4iANM1#,ZNM10..G,L; ANM15..G,L200409-200909

main89341-44150-D0×4iANM1#,ZNM10..G,L200409-200512

main89341-44150-E0×4iANM1#,ZNM10..G,L200512-200705

main89341-44150-E4×4iZGM1#..G,L; ZGM15..G,L201206-201310

main89341-44150-E5×4iZGM1#..G,L201310-201604

main89341-44150-F0×4iZGM1#..G,L; ZGM15..G,L201106-201206

main89341-44150-G2×4iANM1#,ZNM10..G,L; ANM15..G,L200705-200909

main89341-44150-H0×4iZGM1#..G,L; ZGM15..G,L200909-201106

main89341-44150-J0×4iANM1#,ZNM10..G,L200512-200705

main89341-44150-J1×4iANM1#,ZNM10..G,L200409-200512

main89341-44150-J5×4iZGM1#..G,L; ZGM15..G,L200909-201106

89341BSENSOR, ULTRASONIC, NO.2

main89341-44160-A0iANM1#,ZNM10..G,L; ANM15..G,L200409-200705

main89341-44160-A1iANM1#,ZNM10..G,L; ANM15..G,L200705-200807

main89341-44160-B0iANM1#,ZNM10..G,L; ANM15..G,L200409-200807

main89341-44160-C1iANM1#,ZNM10..G,L; ANM15..G,L200409-200807

main89341-44160-D0iANM1#,ZNM10..G,L; ANM15..G,L200409-200705

main89341-44160-E0iANM1#,ZNM10..G,L; ANM15..G,L200409-200705

main89341-44160-G0iANM1#,ZNM10..G,L; ANM15..G,L200705-200807

main89341-44160-J0iANM1#,ZNM10..G,L; ANM15..G,L200409-200705

main89341-44160-J1iANM1#,ZNM10..G,L; ANM15..G,L200409-200807

main89341-44160-J2iANM1#,ZNM10..G,L; ANM15..G,L200705-200807

main89341-44161-A1iANM1#,ZNM10..G,L; ANM15..G,L200808-200909

main89341-44161-B0iZGM1#..G,L200909-201604

main89341-44161-C1iZGM1#..G,L; ZGM15..G,L200909-201106

main89341-44161-C2iZGM1#..G,L201106-201604

main89341-44161-E1iZGM1#..G,L; ZGM15..G,L201206-201310

main89341-44161-E2iZGM1#..G,L201310-201604

main89341-44161-F0iZGM1#..G,L; ZGM15..G,L201106-201206

main89341-44161-G0iANM1#,ZNM10..G,L; ANM15..G,L200808-200909

main89341-44161-H0iZGM1#..G,L; ZGM15..G,L200909-201106

main89341-44161-J1iANM1#,ZNM10..G,L; ANM15..G,L200808-200909

main89341-44161-J2iANM1#,ZNM10..G,L; ANM15..G,L200808-200909

89341CSENSOR, ULTRASONIC, NO.3

main89341-30010-A2×2iANM1#,ZNM10..G,L200409-200512

main89341-30010-A6×2iANM1#,ZNM10..G,L; ANM15..G,L200705-200909

main89341-30010-B2×2iANM1#,ZNM10..G,L200512-200909

main89341-30010-C0×2iZGM15..G,L201106-201310

main89341-30010-C2×2iZGM1#..G,L; ZGM15..G,L200909-201106

main89341-30010-D1×2iANM1#,ZNM10..G,L; ANM15..G,L200409-200705

main89341-30010-E0×2iANM1#,ZNM10..G,L; ANM15..G,L200409-200705

main89341-30010-E7×2iZGM1#..G,L; ZGM15..G,L201206-201310

main89341-30010-E8×2iZGM1#..G,L201310-201604

main89341-30010-F0×2iZGM1#..G,L; ZGM15..G,L201106-201206

main89341-30010-G4×2iANM1#,ZNM10..G,L; ANM15..G,L200705-200909

main89341-30010-H0×2iZGM1#..G,L; ZGM15..G,L200909-201106

main89341-30010-J2×2iANM1#,ZNM10..G,L; ANM15..G,L200409-200705

main89341-30010-J3×2iZGM15..G,L200909-201310

main89341-30010-J9×2iANM1#,ZNM10..G,L; ANM15..G,L200705-200909

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-44010×2iANM1#,ZNM10..G,L200409-200512

9018305094

main90183-05094

9356855014

main93568-55014

9 parts on this diagram · 1 diagram in section
