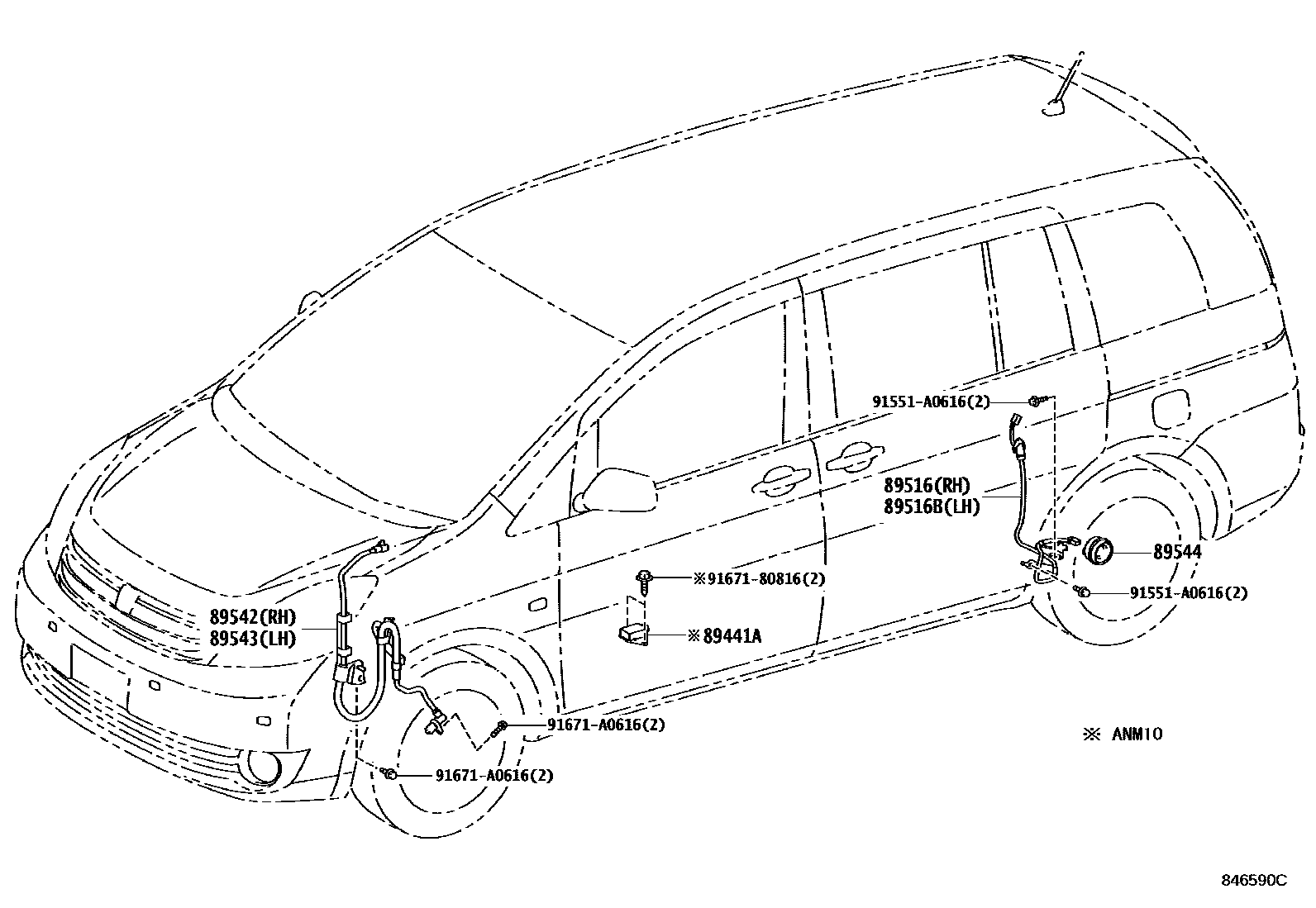

ABS & VSC

0001 1 0002 1 0003 1 0004 1

89441ASENSOR, DECELERATION

main89441-12060iZGM1#200909-201310

main89441-42010iANM15200409-200909

main89441-52020iANM10200409-200909

89516WIRE, SKID CONTROL SENSOR

main89516-44080iANM10,ZNM10200409-200909

main89516-44100iZGM10,11200909

89516BWIRE, SKID CONTROL SENSOR

main89516-44090iANM10,ZNM10200409-200909

main89516-44110iZGM10,11200909

89542SENSOR, SPEED, FRONT RH

main89542-44040iANM1#,ZNM10200409-200909

main89542-44050iZGM1#200909-201603

main89542-44060iZGM1#201604

89543SENSOR, SPEED, FRONT LH

main89543-44040iANM1#,ZNM10200409-200909

main89543-44050iZGM1#200909-201603

main89543-44060iZGM1#201604

89544SENSOR, SKID CONTROL

main89544-32040×2iANM10,ZNM10200409-200909

91551A0616

main91551-A0616

9167180816

main91671-80816

91671A0616

main91671-A0616

9 parts on this diagram · 4 diagrams in section
