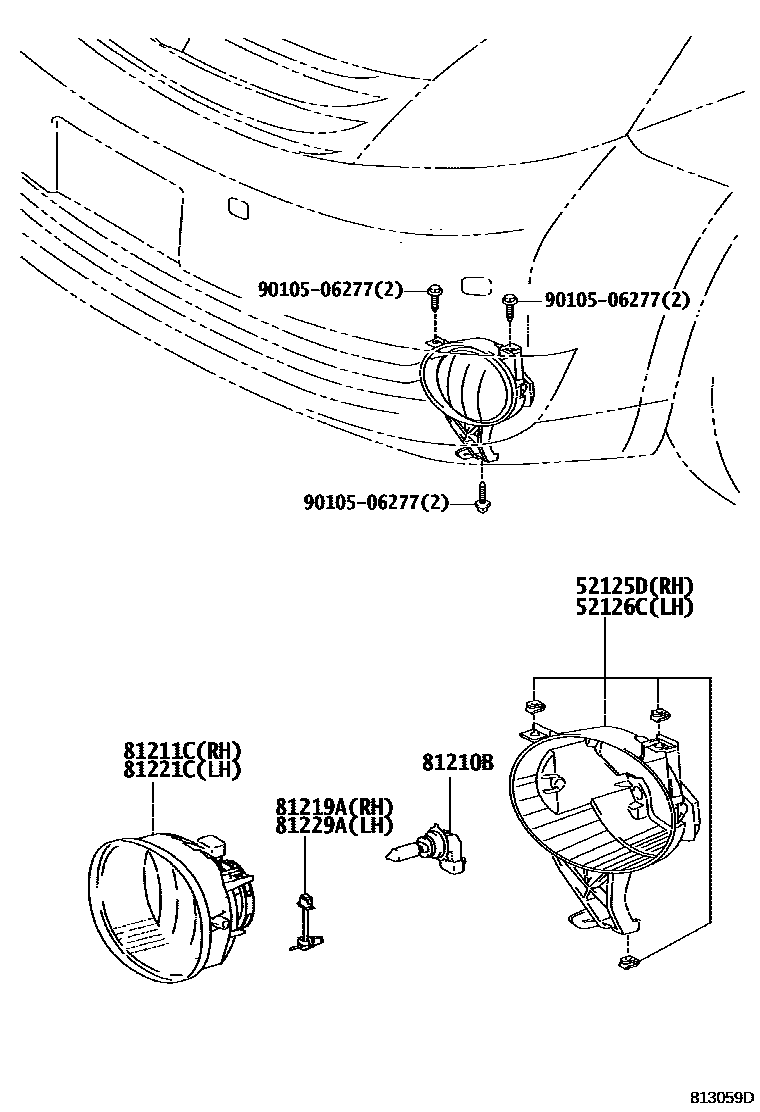

FOG LAMP

0001 1 0002 1 0003 1 0004 1 0005 1

52125DBRACKET, FOG LAMP MOUNTING, RH

main52125-42020iZGM1#..PLTNA200909-201801

main52125-44010iANM1#,ZNM10..L; ANM1#..G200409-200705

main52125-44020iANM1#,ZNM10..PLTNA200409-200705

52126CBRACKET, FOG LAMP MOUNTING, LH

main52126-42020iZGM1#..PLTNA200909-201801

main52126-44010iANM1#,ZNM10..L; ANM1#..G200409-200705

main52126-44020iANM1#,ZNM10..PLTNA200409-200705

81210BBULB, FOG LAMP

main90981-13047×2iANM1#,ZNM10..G,PLTNA; ANM1#,ZNM10..L200409-200705

main90981-13075×2iANM1#,ZNM10..G,PLTNA; ANM1#,ZNM10..L200705-200909

main90981-13081×2iZGM1#..G,PLTNA; ZGM1#..L200909-201310

main90981-13090×2iZGM1#..G,PLTNA; ZGM10,15..L201310

81211CLAMP UNIT, FOG LAMP, RH

main81211-12180iANM1#,ZNM10..PLTNA200409-200705

main81211-12230iZGM1#..G,PLTNA; ZGM10,15..L201310-201408

main81211-42050iANM1#,ZNM10..L; ANM1#..G200409-200705

main81211-47010iZGM1#..G,PLTNA; ZGM10,15..L201408

81219ABRACKET, FOG LAMP, RH

main81218-42050iANM1#,ZNM10..L; ANM1#..G200409-200705

81221CLAMP UNIT, FOG LAMP, LH

main81221-12180iANM1#,ZNM10..PLTNA200409-200705

main81221-12230iZGM1#..G,PLTNA; ZGM10,15..L201310-201408

main81221-42050iANM1#,ZNM10..L; ANM1#..G200409-200705

main81221-47010iZGM1#..G,PLTNA; ZGM10,15..L201408

81229ABRACKET, FOG LAMP, LH

main81228-42050iANM1#,ZNM10..L; ANM1#..G200409-200705

9010506277

main90105-06277

8 parts on this diagram · 5 diagrams in section
