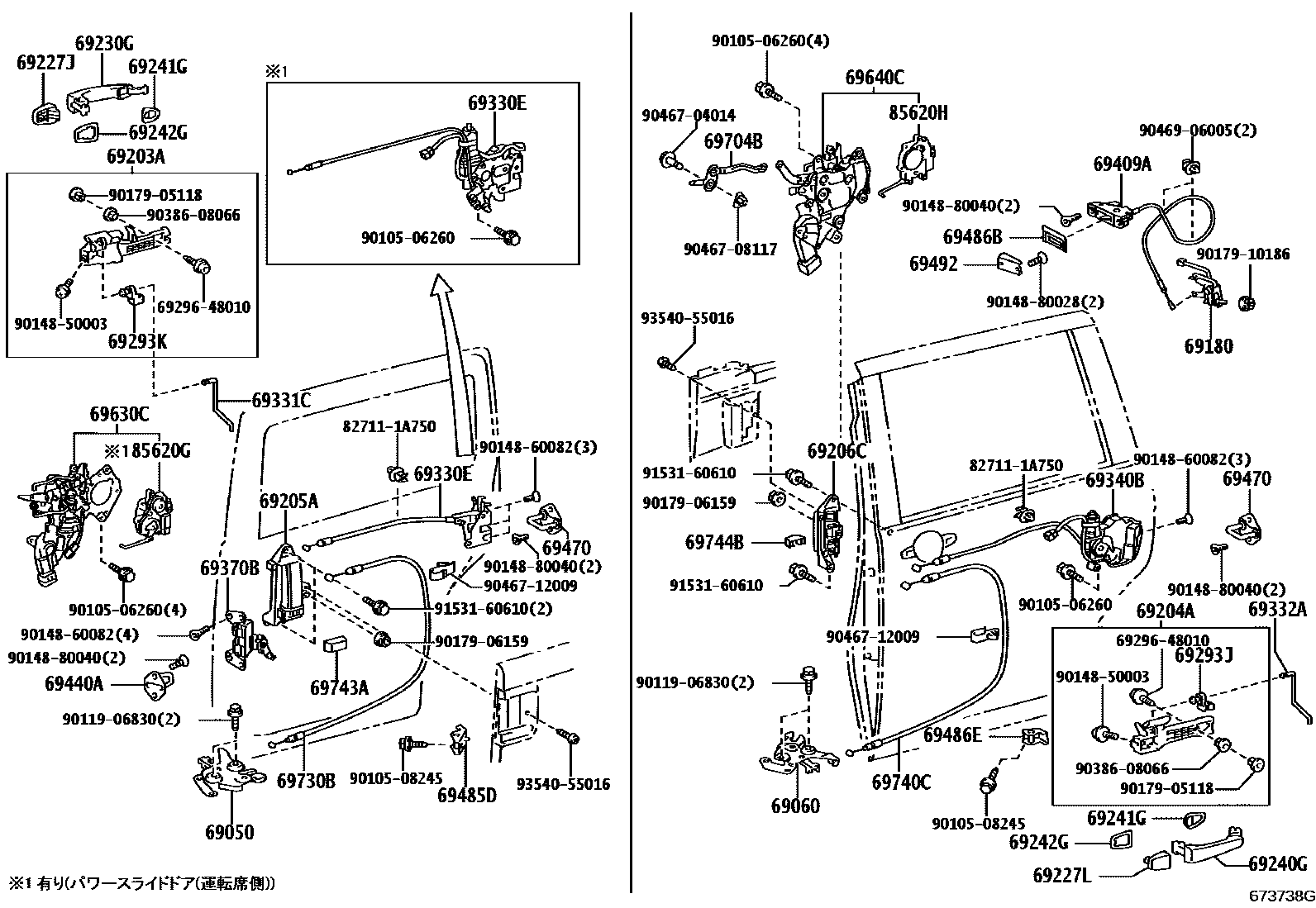

REAR DOOR LOCK & HANDLE
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
FAWN,TRIM4#
FAWN,TRIM4#
GREGE,TRIM4#
DK.CHARCOAL,TRIM1#
FAWN,TRIM4#
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
FAWN,TRIM4#
FAWN,TRIM4#
GREGE,TRIM4#
DK.CHARCOAL,TRIM1#
FAWN,TRIM4#
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,073
WHITE PEARL CS.,070
GRAY ME.,1D2
SILVER ME.,1F7
BLACK MC.,209
BORDEAUX MC.,3P2
DK. RED M.M.,3Q3
RED M.M.,3R3
BEIGE ME.,4M9
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
SILKY GOLD M.M.,5A4
LT.GREEN ME.,6U5
TURQUOISE M.M.,779
GRAYISH BLUE ME.,8N6
BLUE ME.,8P1
DK.BLUE MC.,8S6
GRAY ME.,1G2
LT.BLUE M.M.,8S7
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,073
WHITE PEARL CS.,070
GRAY ME.,1D2
SILVER ME.,1F7
BORDEAUX MC.,3P2
DK. RED M.M.,3Q3
RED M.M.,3R3
BEIGE ME.,4M9
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
SILKY GOLD M.M.,5A4
LT.GREEN ME.,6U5
TURQUOISE M.M.,779
GRAYISH BLUE ME.,8N6
BLUE ME.,8P1
DK.BLUE MC.,8S6
GRAY ME.,1G2
LT.BLUE M.M.,8S7
69230GHANDLE ASSY, SLIDE DOOR OUTSIDE, RH
WHITE PEARL CS.,073
WHITE PEARL CS.,070
GRAY ME.,1D2
SILVER ME.,1F7
BORDEAUX MC.,3P2
DK. RED M.M.,3Q3
RED M.M.,3R3
BEIGE ME.,4M9
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
SILKY GOLD M.M.,5A4
LT.GREEN ME.,6U5
TURQUOISE M.M.,779
GRAYISH BLUE ME.,8N6
BLUE ME.,8P1
DK.BLUE MC.,8S6
GRAY ME.,1G2
LT.BLUE M.M.,8S7
69240GHANDLE ASSY, SLIDE DOOR, OUTSIDE LH
WHITE PEARL CS.,073
WHITE PEARL CS.,070
GRAY ME.,1D2
SILVER ME.,1F7
BORDEAUX MC.,3P2
DK. RED M.M.,3Q3
RED M.M.,3R3
BEIGE ME.,4M9
BEIGE ME.,4T8
DK. BROWN M.M.,4U3
SILKY GOLD M.M.,5A4
LT.GREEN ME.,6U5
TURQUOISE M.M.,779
GRAYISH BLUE ME.,8N6
BLUE ME.,8P1
DK.BLUE MC.,8S6
GRAY ME.,1G2
LT.BLUE M.M.,8S7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH
69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH
69330ELOCK ASSY, SLIDE DOOR, RH
69331CROD, REAR DOOR LOCK OPEN, RH
69332AROD, REAR DOOR LOCK OPEN, LH
69340BLOCK ASSY, SLIDE DOOR, LH
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
69409ASTOPPER SUB-ASSY, SLIDE DOOR HALF OPEN
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486BCOVER, SLIDE DOOR HALF OPEN STOPPER
69486ESTRIKER, SLIDE DOOR OPEN, LH
69492STOPPER, SLIDE DOOR HALF OPEN
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69704BLINK SUB-ASSY, REAR DR LOCKING CONT W/CHILD LOCK LEVER, LH
69730BCABLE ASSY, SLIDE DOOR LOCK REMOTE CONTROL, RH
69740CCABLE ASSY, SLIDE DOOR LOCK REMOTE CONTROL, LH
69743AKNOB, REAR DOOR LOCK CONTROL, RH
MD.GRAY,TRIM1#
DK.CHARCOAL,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
69744BKNOB, REAR DOOR LOCK CONTROL, LH
MD.GRAY,TRIM1#
DK.CHARCOAL,TRIM1#
DK.GRAY,TRIM1#
FAWN,TRIM4#
GREGE,TRIM4#
85620GMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH
85620HMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
9010506260
main90105-06260
9010508245
main90105-08245
9011906830
main90119-06830
9014850003
main90148-50003
9014860082
main90148-60082
9014880028
main90148-80028
9014880040
main90148-80040
9017905118
main90179-05118
9017906159
main90179-06159
9017910186
main90179-10186
9038608066
main90386-08066
9046704014
main90467-04014
9046708117
main90467-08117
9046712009
main90467-12009
9046906005
main90469-06005
9153160610
main91531-60610
9354055016
main93540-55016
55 parts on this diagram · 1 diagram in section
