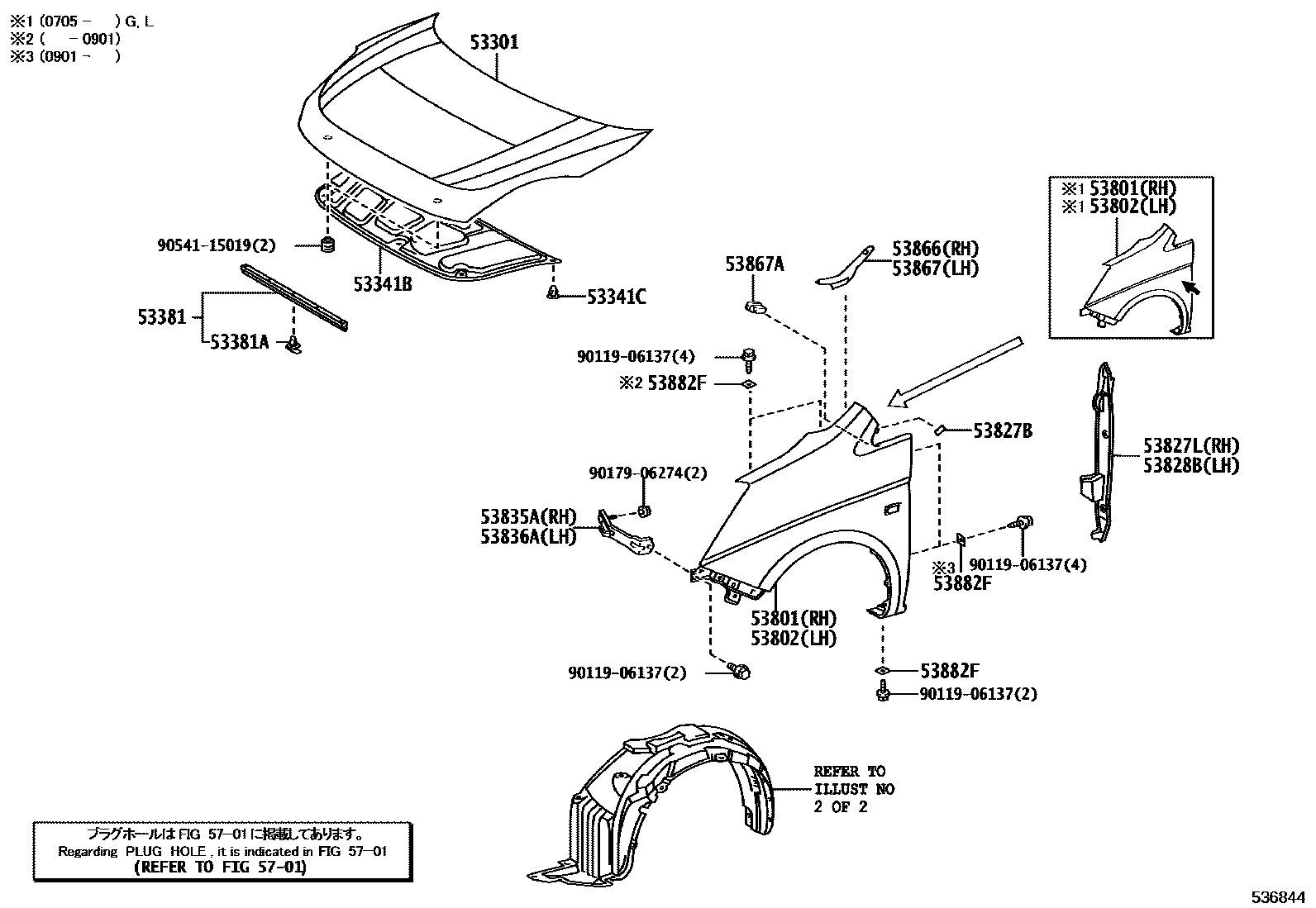

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-44050iANM1#,ZNM10200409-200909

53341BINSULATOR, HOOD

main53341-44040iANM1#,ZNM10200409-200907

main53341-44041iANM1#,ZNM10200908-200909

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×6iANM1#,ZNM10200409-200909

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-44030iANM1#,ZNM10200409-200909

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main67867-12150×5iANM1#,ZNM10200409-200909

53801FENDER SUB-ASSY, FRONT RH

main53801-44050iANM1#,ZNM10..G,L200409-200705

main53801-44060iANM1#,ZNM10..PLTNA200409-200909

main53801-44070iANM1#,ZNM10..G,L200705-200909

53802FENDER SUB-ASSY, FRONT LH

main53802-44050iANM1#,ZNM10..G,L200409-200705

main53802-44060iANM1#,ZNM10..PLTNA200409-200909

main53802-44070iZGM1#..G,L200909-201801

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-13060×2iZGM1#200909-201712

main53827-28060×2iZGM1#201712

main53882-58020×2iANM1#,ZNM10200409-200410

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-44030iANM1#,ZNM10200409-200909

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-44020iANM1#,ZNM10200409-200909

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-44020iANM1#,ZNM10200409-200909

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-44020iANM1#,ZNM10200409-200909

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-44010iANM1#,ZNM10200409-200811

main53866-44011iANM1#,ZNM10200812-200909

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-44010iANM1#,ZNM10200409-200811

main53867-44011iZGM1#200909

53867ARETAINER, FRONT FENDER

main53867-47020×2iANM1#,ZNM10200409-200909

53882FSEAL, FRONT FENDER

main53882-16030×6iANM1#,ZNM10200409-200901

5701HOLE PLUG

→ Go to FIG 57-01

9011906137

main90119-06137

9017906274

main90179-06274

9054115019

main90541-15019

20 parts on this diagram · 2 diagrams in section
