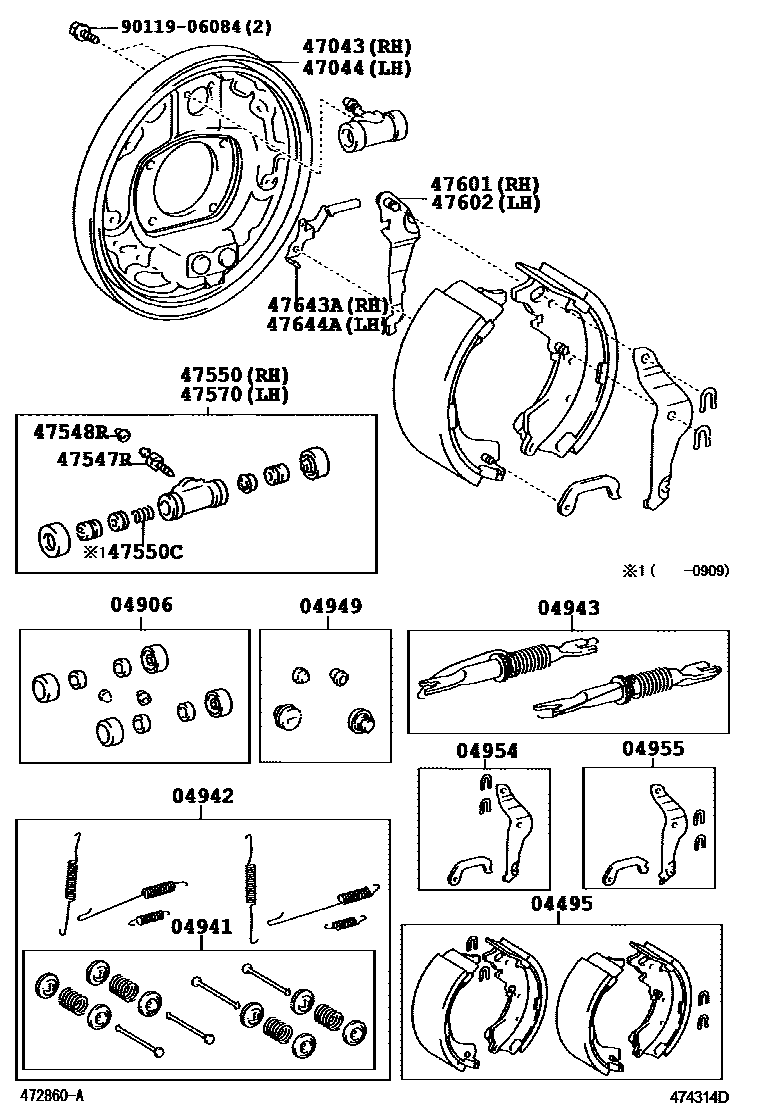

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-28151iZNM10200409-200909

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28040iZNM10200409-200909

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iZNM10200409-200909

04942SPRING KIT, REAR BRAKE

main04942-28020iZNM10200409-200909

04943STRUT KIT, REAR BRAKE, RH

main04943-28010iZNM10200409-200909

04949PLUG KIT, REAR BRAKE

main04949-28010iZNM10200409-200909

04954REACTION PLATE KIT, REAR BRAKE, RH

main04954-28010iZNM10200409-200909

04955REACTION PLATE KIT, REAR BRAKE, LH

main04955-28010iZNM10200409-200909

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28151iZNM10200409-200909

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28151iZNM10200409-200909

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030×2iZNM10200409-200909

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iZNM10200409-200909

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28060iZNM10200409-200909

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079×2iZNM10200409-200909

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iZNM10200409-200909

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28020iZNM10200409-200909

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28020iZNM10200409-200909

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-42010iZNM10200409-200909

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-42010iZNM10200409-200909

9011906084

main90119-06084

20 parts on this diagram · 1 diagram in section
