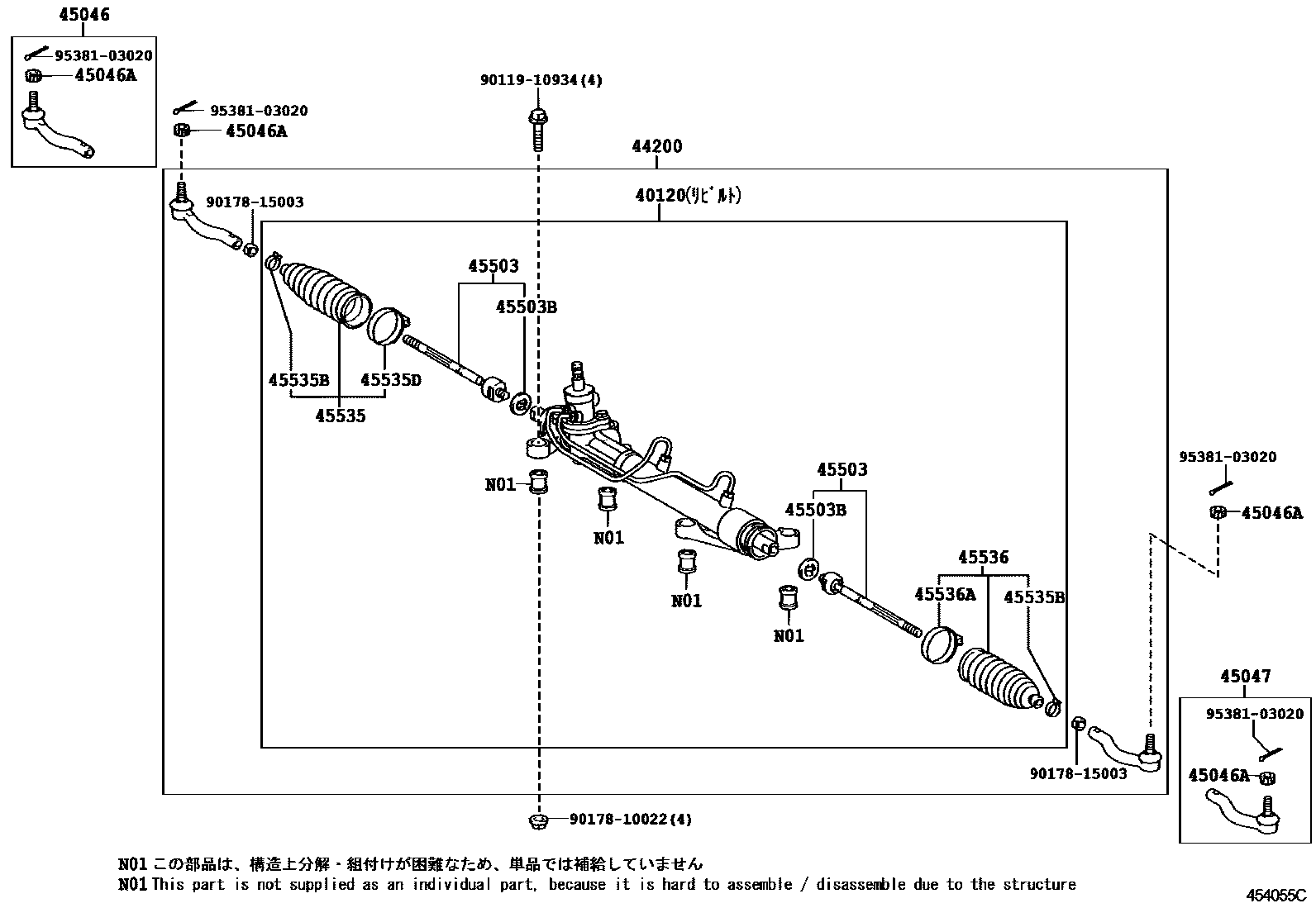

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-44250iANM10..PLTNA200409-200909

main40120-44260iANM15200409-200909

44200LINK ASSY, POWER STEERING

main44200-44300iANM10..PLTNA200409-200909

main44200-44310iANM15200409-200909

45046END SUB-ASSY, TIE ROD, RH

main45046-19265iZNM10;ANM10..G,L200409-200909

main45046-29255iANM15200409-200909

main45046-59115iZGM15200909

main45046-59205iZGM10,11200909

main45047-49025iANM10..PLTNA200409-200909

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iANM1#,ZNM10200409-200909

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iANM15200409-200909

main45046-49095iANM10..PLTNA200409-200909

main45046-59115iZGM15200909

main45047-19115iZNM10;ANM10..G,L200409-200909

main45047-59145iZGM10,11200909

45503END SUB-ASSY, STEERING RACK

main45503-12130×2iZNM10;ANM10..G,L200409-200909

main45503-49165×2iANM10..PLTNA200409-200909

main45503-49175×2iANM15200409-200909

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009×2iANM15;ANM10..PLTNA200409-200909

45535BOOT, STEERING RACK, NO.1

main45535-29015iZGM10,11200909

main45535-59025iZGM15200909

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iZGM1#200909

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iANM1#,ZNM10200409-200909

45536BOOT, STEERING RACK, NO.2

main45535-29015iZGM10,11200909

main45535-59025iANM1#,ZNM10200409-200909

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iANM1#,ZNM10200409-200909

9011910934

main90119-10934

9017810022

main90178-10022

9017815003

main90178-15003

9538103020

main95381-03020

16 parts on this diagram · 6 diagrams in section
