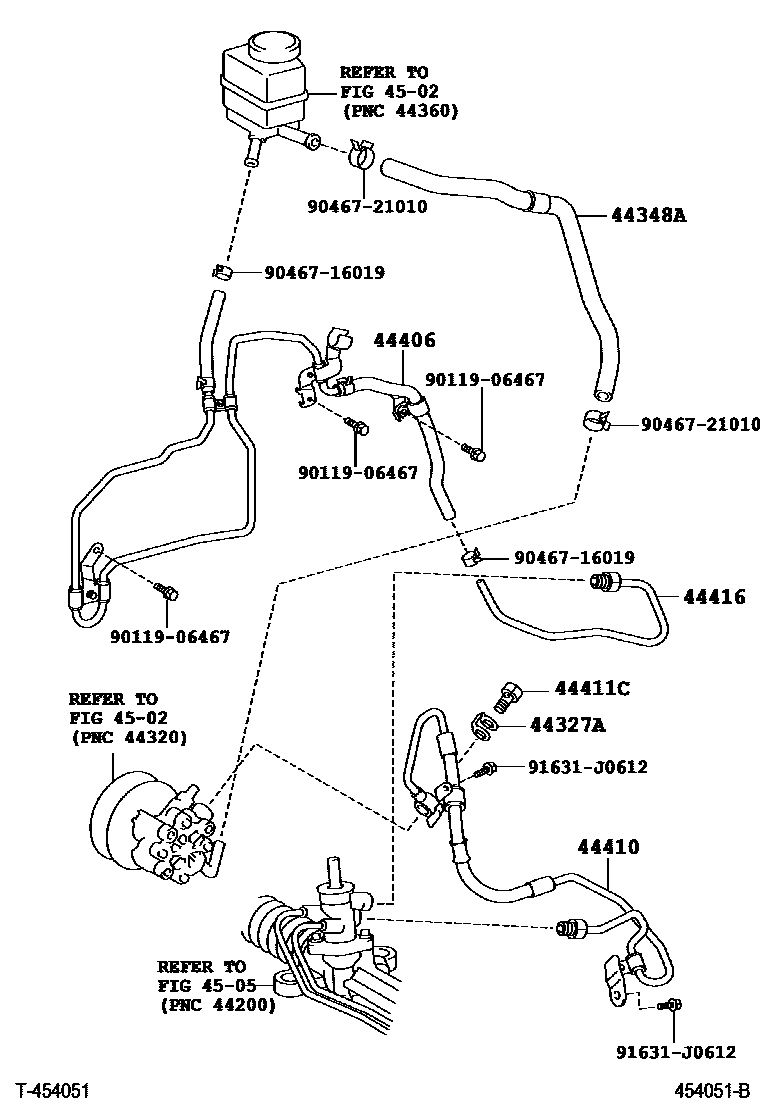

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iANM15;ANM10..PLTNA200409-200412

main44327-30030iANM15;ANM10..PLTNA200501-200909

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20640iANM15;ANM10..PLTNA200409-200412

main44348-44100iANM15;ANM10..PLTNA200501-200909

44406TUBE SUB-ASSY, RETURN

main44406-20840iANM10..PLTNA200409

main44406-21090iANM15200409

44410TUBE ASSY, PRESSURE FEED

main44410-2B340iANM10..PLTNA200409

main44410-44190iANM15200409

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iANM15;ANM10..PLTNA200409

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20250iANM10..PLTNA200409

main44416-20260iANM15200409

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906467

main90119-06467

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

12 parts on this diagram · 2 diagrams in section
