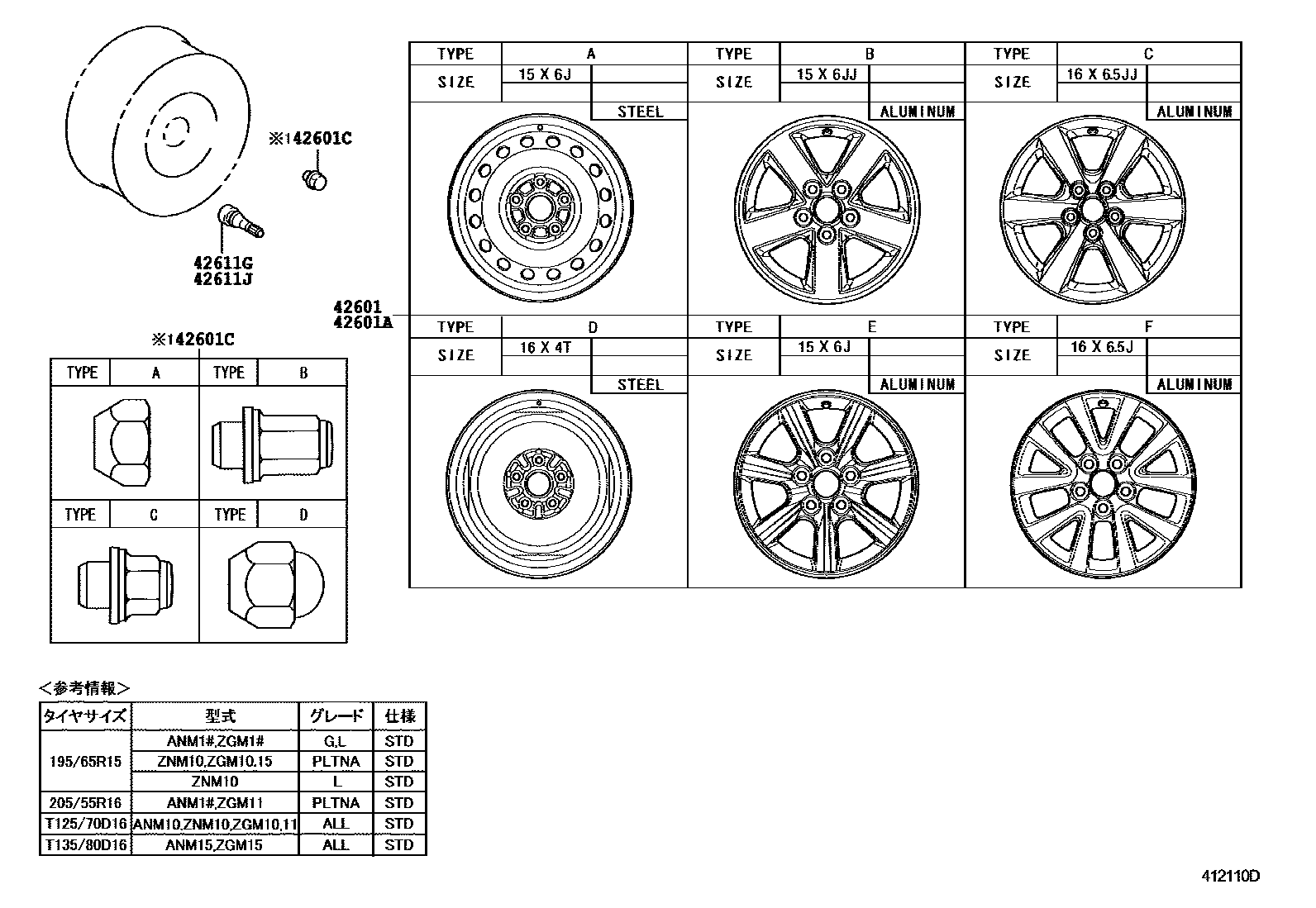

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-44130×4iANM1#,ZNM10..L; ANM1#..G;ZNM10..PLTNA200409-200705

main42611-44140×4supersedes 42611-44180iZGM10,15..L; ZGM11,15..G200909-201106

main42611-44180×4iANM1#,ZNM10..L200409-200909

main42611-44190×4iANM1#..PLTNA200409-200705

main42611-44210×4iANM1#..PLTNA200705-200909

main42611-44200×4iANM1#..PLTNA200512-200705

main4261A-44010×4iZGM11..PLTNA201010-201106

42601AWHEEL, DISC (FOR SPARE)

main42611-44100iANM1#,ZNM10200409-200909

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iANM1#,ZNM10..L200409-200705

main90942-01021×20iZGM10..G,L;ZGM11,15..L200909

main90942-01033×20supersedes 90942-01021iZGM10,15..L; ZGM11,15..G200909-201106

main90942-01058×20iANM1#,ZNM10..G,PLTNA; ANM1#,ZNM10..L200409-200705

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iANM1#,ZNM10200409-200909

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZGM1#200909-201206

5 parts on this diagram · 3 diagrams in section
