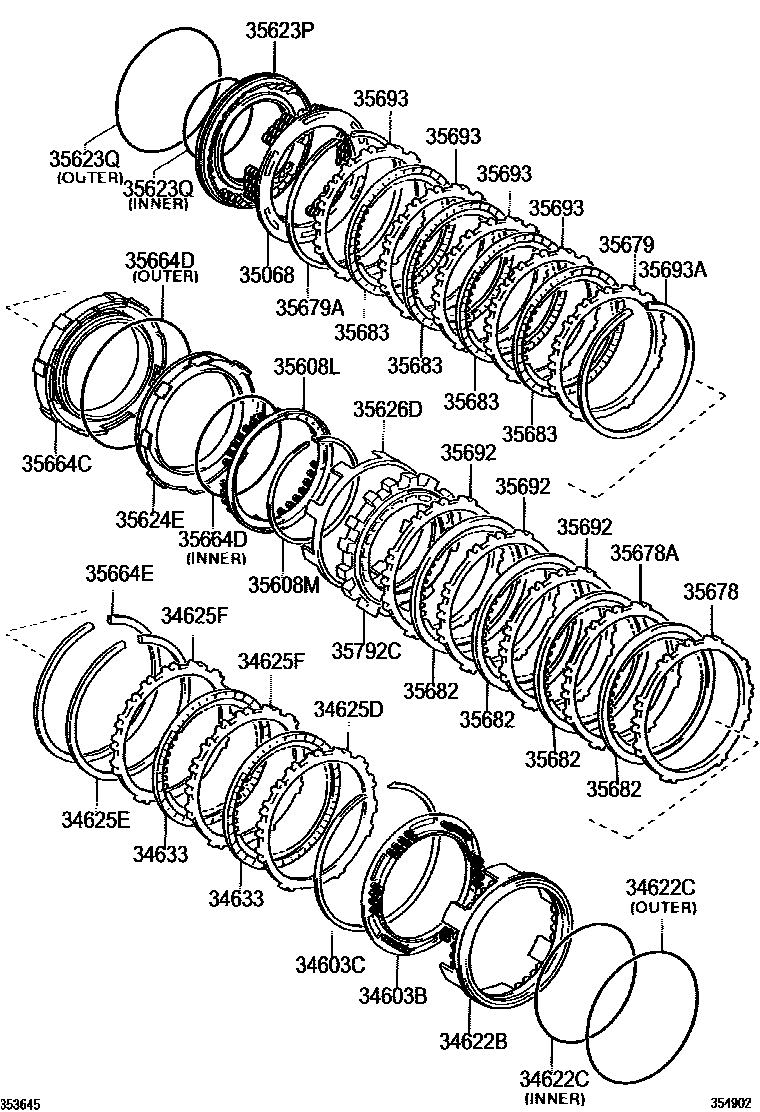

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)
34622BPISTON, 2ND COAST & OVERDRIVE BRAKE
34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE
34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)
34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2
34633DISC, 2ND COAST & OVERDRIVE BRAKE
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608MRING, SNAP(FOR 2ND BRAKE PISTON RETURN SPRING)
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)
35624EPISTON, 2ND BRAKE
35626DSLEEVE, 2ND BRAKE PISTON
35664CCYLINDER, 2ND BRAKE
35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)
35678FLANGE, BRAKE(FOR 2ND BRAKE)
35678AFLANGE, BRAKE, NO.1(FOR 2ND BRAKE)
35679FLANGE, BRAKE(FOR 1ST & REVERSE)
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
35682DISC, BRAKE(FOR 2ND BRAKE)
35692PLATE, BRAKE(FOR 2ND BRAKE)
35693PLATE, BRAKE (FOR 1ST & REVERSE)
35693ARING, SNAP(FOR 1ST & REVERSE PLATE)
35792CCLUTCH, 1 WAY, NO.2
28 parts on this diagram · 1 diagram in section
