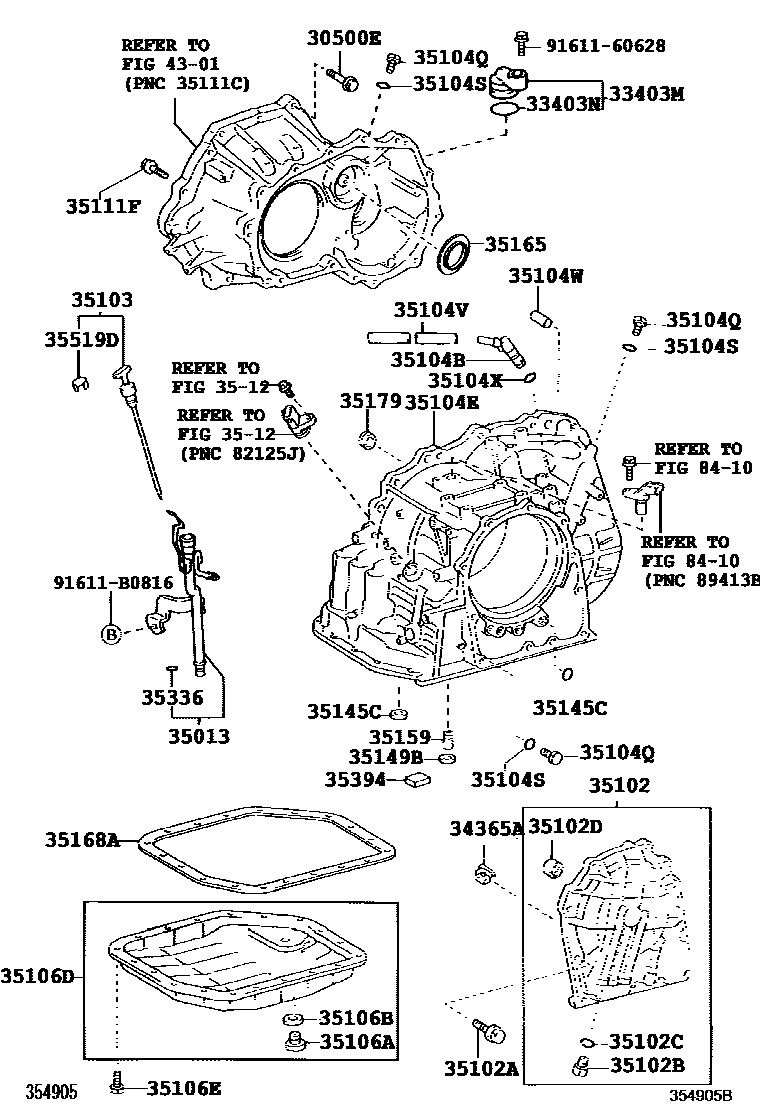

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91619-61255×2iZNM10200409

main91642-81055×2iZNM10200409

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iZNM10200409-200909

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iZNM10200409

34365ARETAINER, OUTER RACE

main34365-52012iZNM10200409

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20840iZNM10200409

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020iZNM10200409

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365×11iZNM10200409

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iZNM10200409

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iZNM10200409-200909

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007iZNM10200409

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-32190iZNM10200409

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03166iZNM10200409

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20130iZNM10200409-200604

main35104-20131iZNM10200604-200909

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5iZNM10200409

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5iZNM10200409-200909

35104VHOSE (FOR BREATHER PLUG)

main35121-32020iZNM10200409

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2iZNM10200409

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iZNM10200409-200909

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iZNM10200409

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iZNM10200409

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52020iZNM10200409

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iZNM10200409

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×14iZNM10200409

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35145CGASKET, TRANSAXLE CASE

main35145-21010×5iZNM10200409-200909

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iZNM10200409

35159GASKET, BRAKE DRUM

main35159-21010iZNM10200409

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52030iZNM10200604

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52020iZNM10200409

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iZNM10200409-200909

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iZNM10200409

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iZNM10200409

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iZNM10200409

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9161160628

main91611-60628

91611B0816

main91611-B0816

37 parts on this diagram · 1 diagram in section
