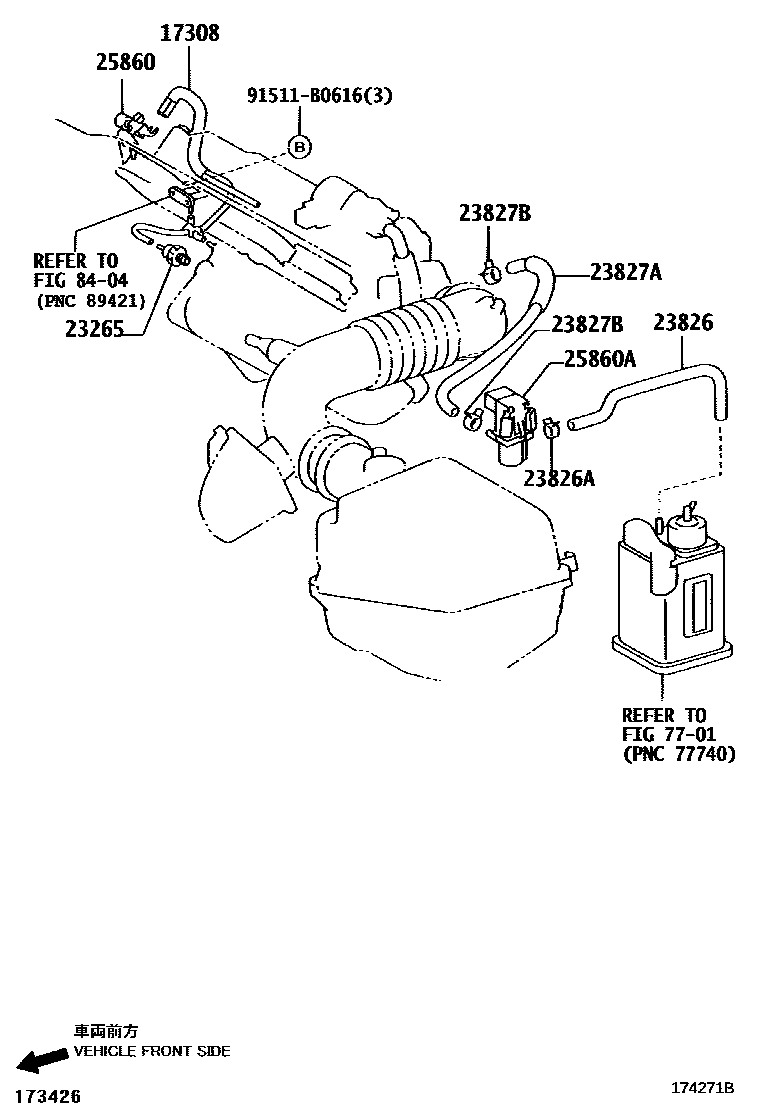

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-28010i1AZFSE..ANM1#200409

23265FILTER, GAS, NO.1

main90917-11022i2ZRFAE,3ZRFAE..ZGM1#200909-201206

main90917-11037i1AZFSE..ANM1#200409

main90917-11038i2ZRFAE,3ZRFAE..ZGM1#201206

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-22100i1AZFSE..ANM1#; 1ZZFE..ZNM10200409-200909

main23826-37050i2ZRFAE,3ZRFAE..ZGM1#200909-201206

main23826-37220i2ZRFAE,3ZRFAE..ZGM1#201206

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100i1ZZFE..ZNM10200409-200909

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-28200i1AZFSE..ANM1#200409

main23827-37030i2ZRFAE,3ZRFAE..ZGM1#200909-201206

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300×2i1AZFSE..ANM1#200409

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28070i1AZFSE..ANM1#200409

main90910-12281i2ZRFAE,3ZRFAE..ZGM1#200909-201206

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12257i1ZZFE..ZNM10200409-200909

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

91511B0616

main91511-B0616

11 parts on this diagram · 4 diagrams in section
