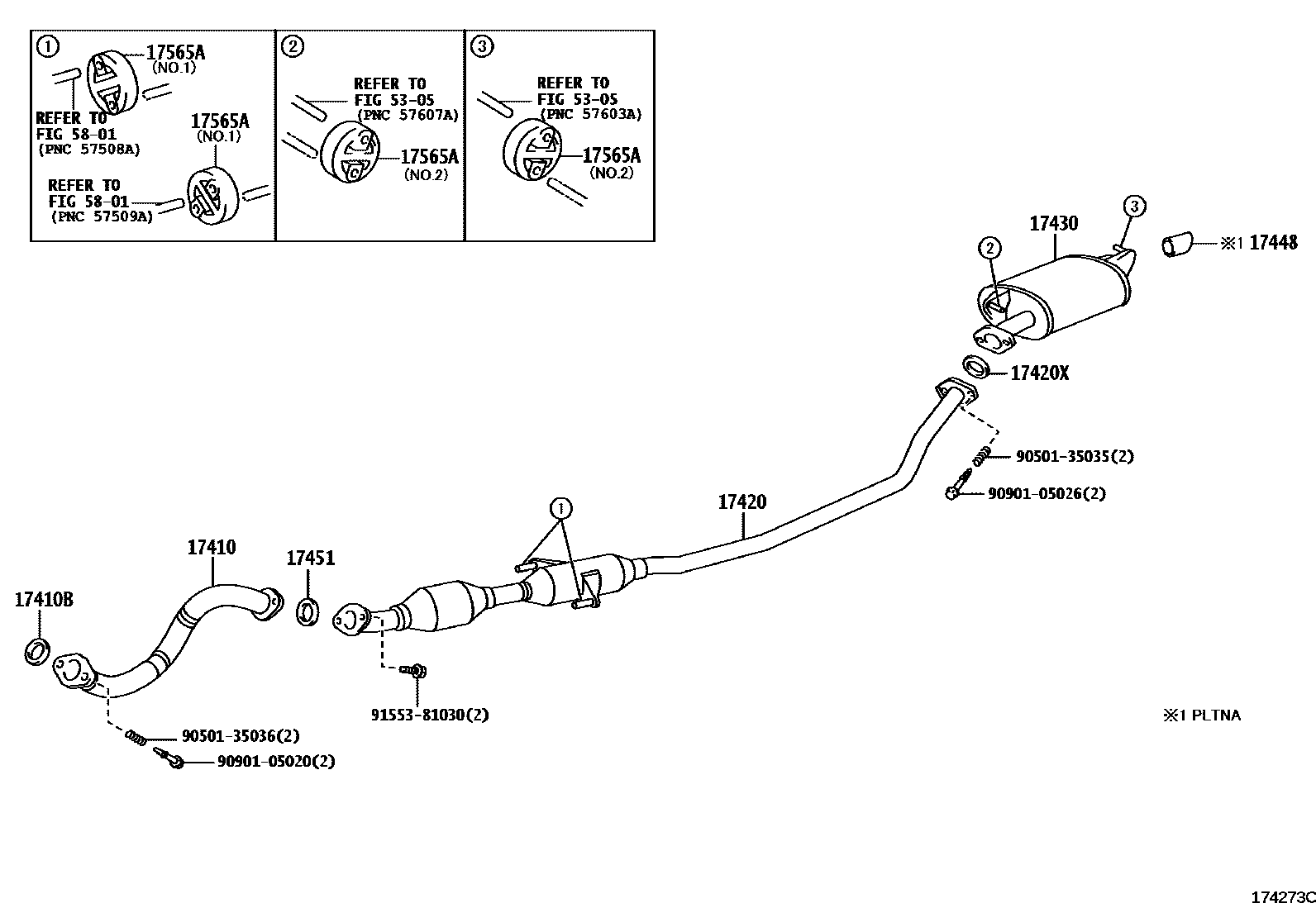

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-22530i1ZZFE..ZNM10200409-200909

main17410-28200i1AZFSE..ANM10200409-200909

main17410-28510i1AZFSE..ANM15200409-200909

main17410-37180i2ZRFAE..ZGM15200909

main17410-37390i2ZRFAE..ZGM10200909-201206

main17410-37400i3ZRFAE..ZGM11200909-201206

main17410-37750i2ZRFAE..ZGM10201206

main17410-37760i3ZRFAE..ZGM11201206

17410BGASKET, EXHAUST PIPE

main17451-21070i2ZRFAE..ZGM15200909

main17451-22070i1ZZFE..ZNM10200409-200909

main17451-28040i2ZRFAE,3ZRFAE..ZGM10,11200909

main17451-74040i1AZFSE..ANM1#200409-200909

17420PIPE ASSY, EXHAUST, CENTER

main17420-28530i1AZFSE..ANM10200409-200512

main17420-28540i1AZFSE..ANM15200409-200512

main17420-28730i1AZFSE..ANM10200512-200604

main17420-28731i1AZFSE..ANM10200605-200909

main17420-28740i1AZFSE..ANM15200512-200909

main17420-37060i2ZRFAE..ZGM15200909-200912

main17420-37061i2ZRFAE..ZGM15201001-201206

main17420-37160i2ZRFAE..ZGM15201206

17420XGASKET, EXHAUST PIPE, CENTER

main17451-28030i1AZFSE,1ZZFE..ANM1#,ZNM10200409-200712

main17451-28031i1AZFSE,1ZZFE..ANM1#,ZNM10200801-200909

main17451-37010i2ZRFAE,3ZRFAE..ZGM10,11200909

main90917-06045i2ZRFAE..ZGM15200909

17430PIPE ASSY, EXHAUST, TAIL

main17430-22480i1ZZFE..ZNM10200409-200909

main17430-28630i1AZFSE..ANM10200409-200605

main17430-28631i1AZFSE..ANM10200606-200909

main17430-28640i1AZFSE..ANM15200409-200605

main17430-28641i1AZFSE..ANM15200606-200909

main17430-37400i2ZRFAE,3ZRFAE..ZGM10,11..G,L200909-201205

main17430-37401i2ZRFAE,3ZRFAE..ZGM10,11..G,L201206

main17430-37410i2ZRFAE..ZGM15..G,L200909-201202

main17430-37411i2ZRFAE..ZGM15..G,L201203

main17430-37420i2ZRFAE,3ZRFAE..ZGM10,11..PLTNA200909-201205

main17430-37421i2ZRFAE,3ZRFAE..ZGM10,11..PLTNA201206

main17430-37430i2ZRFAE..ZGM15..PLTNA200909-201202

main17430-37431i2ZRFAE..ZGM15..PLTNA201203

17448BAFFLE, TAILPIPE

main17448-74080i1AZFSE,1ZZFE..ANM1#,ZNM10..PLTNA200409-200909

17451GASKET, EXHAUST PIPE

main17451-21080i2ZRFAE..ZGM15200909

main90917-06078i1AZFSE..ANM1#200409-200909

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22030×2i1AZFSE,1ZZFE..ANM10,ZNM10200409-200909

main17565-22040×4i1AZFSE,1ZZFE..ANM10,ZNM10; 1AZFSE..ANM15200409-200909

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

9155381030

main91553-81030

15 parts on this diagram · 5 diagrams in section
