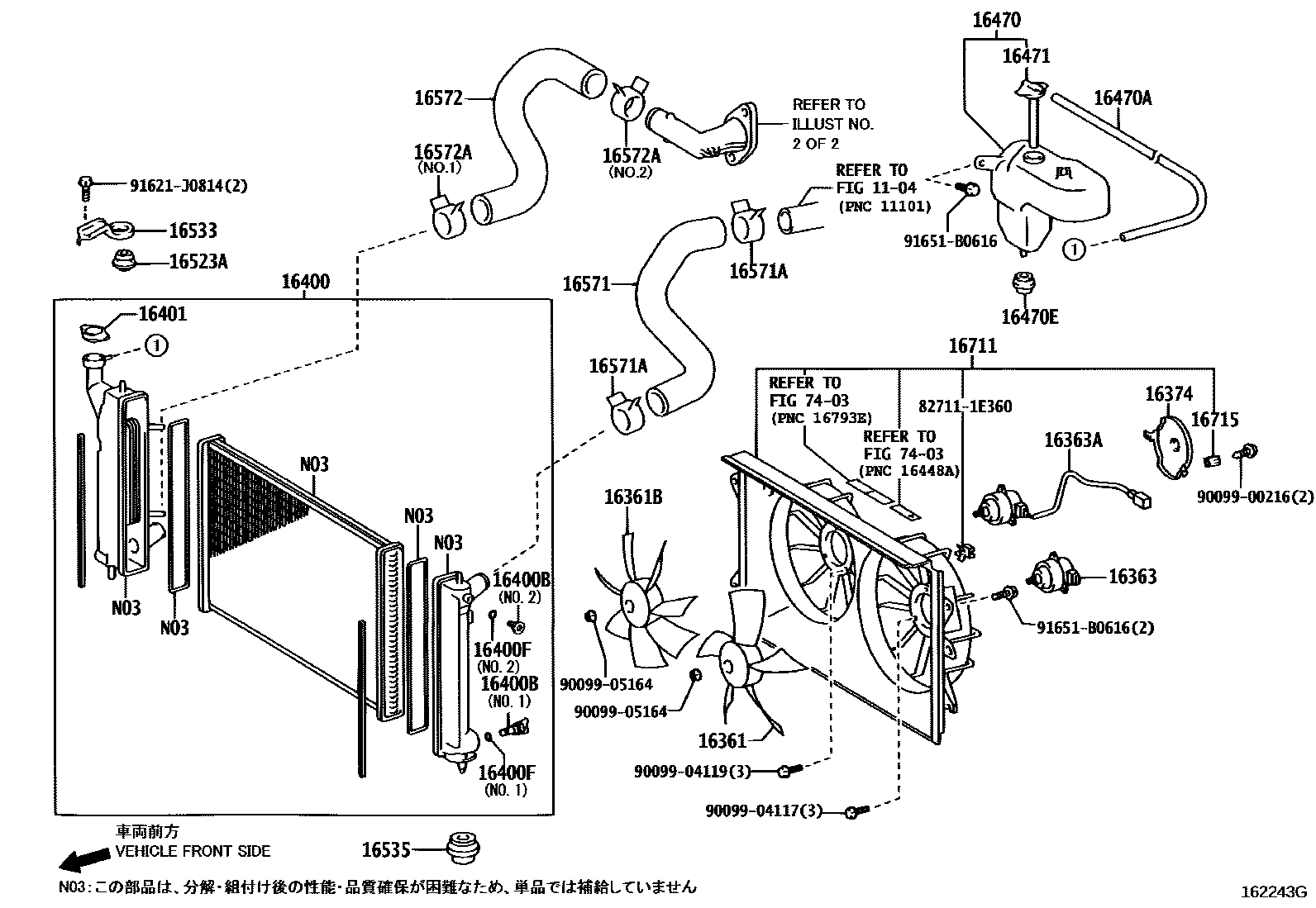

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1104

16361FAN

main16361-21060i1ZZFE..ZNM10200409-200909

main16361-22051i1AZFSE..ANM1#200409

main16361-37040i2ZRFAE,3ZRFAE..ZGM1#200909

16361BFAN, NO.2

main16361-28081i1AZFSE..ANM1#200409

main16361-28330i2ZRFAE,3ZRFAE..ZGM1#200909

16363MOTOR, COOLING FAN

main16363-21030i2ZRFAE,3ZRFAE..ZGM1#200909-201607

main16363-23010i1AZFSE..ANM1#200409

main16363-28150i1ZZFE..ZNM10200409-200909

main16363-37020i2ZRFAE,3ZRFAE..ZGM1#201607

16363AMOTOR, COOLING FAN, NO.2

main16363-28210i1AZFSE..ANM1#200409-201607

sub16363-37090

main16363-37090i2ZRFAE,3ZRFAE..ZGM1#201607

16374INSULATOR, COOLING FAN MOTOR

main16366-28120i1AZFSE..ANM1#200409

16400RADIATOR ASSY

main16400-22230i2ZRFAE,3ZRFAE..ZGM1#200409-200909

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1ZZFE..ZNM10200409-200909

main16417-28530i2ZRFAE,3ZRFAE..ZGM1#200409-200909

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-20290i1ZZFE..ZNM10200409-200909

main16492-21050i1AZFSE..ANM1#200409-200909

16401CAP SUB-ASSY, RADIATOR

main16401-20353i2ZRFAE,3ZRFAE..ZGM1#200807-201701

sub16401-36030

main16401-36030i2ZRFAE,3ZRFAE..ZGM1#201702

main16401-72090i1AZFSE..ANM1#200409-200806

sub16401-20353

16470TANK ASSY, RADIATOR RESERVE

main16470-22060i2ZRFAE,3ZRFAE..ZGM1#200409-200909

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-37070i2ZRFAE,3ZRFAE..ZGM1#200909-201310

main16472-37080i2ZRFAE,3ZRFAE..ZGM1#201310

main90445-12049i1AZFSE..ANM1#200409-200909

sub90445-12080

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-18010i1AZFSE..ANM1#200409-200909

16471CAP SUB-ASSY, RESERVE TANK

main16405-22040i1ZZFE..ZNM10200409-200909

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i1ZZFE..ZNM10200409-200909

16533SUPPORT, RADIATOR, UPPER

main16533-22060i1ZZFE..ZNM10200409-200909

16535SUPPORT, RADIATOR, LOWER

main16535-20010i1ZZFE..ZNM10200409-200909

main16535-28030i1AZFSE..ANM1#200409

16571HOSE, RADIATOR, INLET

main16571-22130i1ZZFE..ZNM10200409-200909

main16571-28070i1AZFSE..ANM1#200409

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1AZFSE..ANM1#200409

main90466-37002i1ZZFE..ZNM10200409-200909

main90467-34004i1ZZFE..ZNM10200409-200909

main96136-43901i2ZRFAE,3ZRFAE..ZGM1#200909

main96136-44301i2ZRFAE,3ZRFAE..ZGM1#200909

16572HOSE, RADIATOR, OUTLET

main16572-22090i1ZZFE..ZNM10200409-200909

main16572-28040i1AZFSE..ANM1#200409

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i1AZFSE..ANM1#200409-200909

main90467-37005i1AZFSE..ANM1#200409-200909

main96136-44301i2ZRFAE,3ZRFAE..ZGM1#200909

16711SHROUD, FAN

main16711-22120i1ZZFE..ZNM10200409-200605

sub16711-22121

main16711-22121i1ZZFE..ZNM10200606-200909

main16711-28170i1AZFSE..ANM1#200409

main16711-37090i2ZRFAE,3ZRFAE..ZGM1#200909

16715BRACKET, FAN SHROUD

main88688-18030i1AZFSE..ANM1#200409

7403

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009900216

main90099-00216

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

91621J0814

main91621-J0814

91651B0616

main91651-B0616

31 parts on this diagram · 9 diagrams in section
