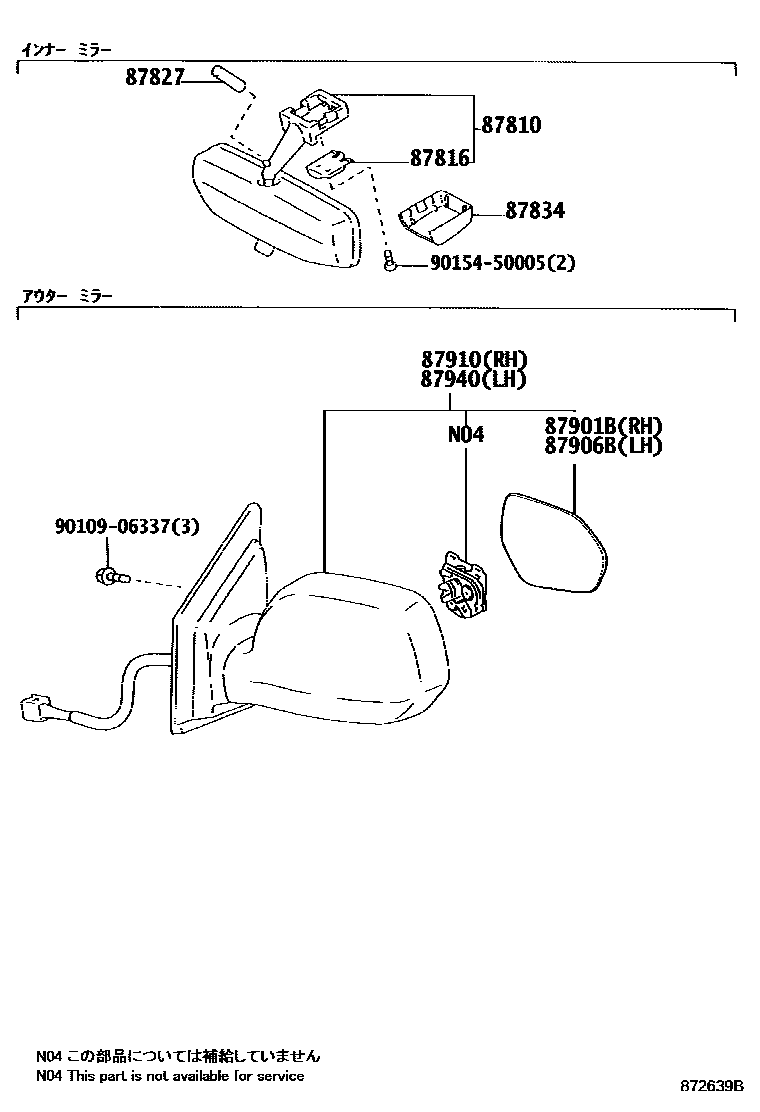

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-B4iSXM1#200004-200104

LT.BLUISH GRAY,TRIM1#

main87810-14170-C0iSXM15200104-200208

BLACK,TRIM1#

main87810-14170-E3iCXM10,SXM1#199805-200104

ORCHID BROWN,TRIM0#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iACM1#,CXM10,SXM15200104

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-44010iCXM10199805-200104

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-A1iCXM10,SXM1#199805-200104

IVORY,TRIM0#

main87834-20080-B3iSXM1#200004-200104

LT.BLUISH GRAY,TRIM1#

main87834-20080-B7iSXM15200104-200208

BLUE GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-44010iCXM10,SXM1#199805-200104

main87931-44190iACM10,SXM15200109-200207

main87931-44210iACM1#,CXM10200208-200409

main87931-44260iACM1#..07S200212-200309

main87931-46060iACM1#,CXM10200104-200409

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-44010iCXM10,SXM1#199805-200104

main87961-44160iACM1#..07S200310-200409

main87961-44210iACM1#,CXM10200208-200409

main87961-44260iACM1#..07S200212-200309

main87961-46060iSXM15200104-200208

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-44060-A0iCXM10,SXM1#199805-200104

WHITE PM.,057

main87910-44060-A1iSXM1#199910-200004

main87910-44060-B0iCXM10,SXM1#199805-200104

SILVER GR.SF.,1B9

main87910-44060-B1iCXM10,SXM1#200004-200104

SILVER ME.,199

main87910-44060-C0iCXM10,SXM1#199805-200104

BLACK,202

main87910-44060-D0iCXM10,SXM1#199805-200104

RED MC.,3M8

main87910-44060-F0iSXM1#200010-200104

main87910-44060-G0iCXM10,SXM1#199805-200104

DK GREEN MICA,6M1

main87910-44060-H0iCXM10,SXM1#199805-200104

DK.TURQUOISE MC.,760

main87910-44060-J0iSXM1#199810-199903

main87910-44160-A0iSXM15200104-200208

WHITE PM.,042

main87910-44160-B0iSXM15200104-200208

SILVER ME.,1C0

main87910-44160-C0iACM1#,CXM10200104-200402

BLACK,202

main87910-44160-D0iSXM15200104-200208

RED MC.,3M8

main87910-44160-D1iACM1#,CXM10200104-200402

LT.ROSE M.M.,3Q1

main87910-44160-F0iSXM15200104-200208

CHAMPAGNE ME.,583

main87910-44160-G0iACM1#,CXM10200104-200402

DK GREEN MICA,6M1

main87910-44160-J0iACM1#200208-200405

main87910-44161-A0iACM1#200402-200409

WHITE PM.,042

main87910-44161-B0iACM1#,CXM10200402-200409

SILVER ME.,1C0

main87910-44161-C0iACM1#,CXM10200402-200409

BLACK,202

main87910-44161-D0iACM1#,CXM10200402-200409

RED MC.,3M8

main87910-44161-D1iACM1#,CXM10200402-200409

LT.ROSE M.M.,3Q1

main87910-44161-F0iACM1#,CXM10200402-200409

CHAMPAGNE ME.,583

main87910-44161-G0iACM1#,CXM10200402-200409

DK GREEN MICA,6M1

main87910-44190-A0iACM10,SXM15200109-200207

main87910-44190-B0iACM1#..07S200212-200309

main87910-44190-D0iACM10,SXM15200109-200207

main87910-44190-G0iACM1#..07S200309-200409

main87910-44190-J0iACM1#..07S200212-200309

main87910-44230-A0iACM1#200208-200402

main87910-44230-B0iACM1#,CXM10200208-200402

main87910-44230-C0iACM1#,CXM10200208-200402

main87910-44230-D0iACM1#,CXM10200208-200402

main87910-44230-D1iACM1#,CXM10200208-200402

main87910-44230-F0iACM1#,CXM10200208-200402

main87910-44230-G0iACM1#,CXM10200208-200402

main87910-44230-J0iACM1#200208-200405

main87910-44231-A0iACM1#200402-200409

main87910-44231-B0iACM1#,CXM10200402-200409

main87910-44231-C0iACM1#,CXM10200402-200409

main87910-44231-D0iACM1#,CXM10200402-200409

main87910-44231-D1iACM1#,CXM10200402-200409

main87910-44231-F0iACM1#,CXM10200402-200409

main87910-44231-G0iACM1#,CXM10200402-200409

main87910-44260-A0iACM1#..07S200310-200409

main87910-44260-B0iACM1#..07S200212-200309

main87910-44260-G0iACM1#..07S200310-200409

main87910-44260-J0iACM1#..07S200212-200309

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-44060-A0iSXM1#199805-200104

WHITE PM.,057

main87940-44060-A1iSXM1#200010-200104

main87940-44060-B0iCXM10,SXM1#199805-200104

SILVER GR.SF.,1B9

main87940-44060-B1iSXM1#200004-200104

SILVER ME.,199

main87940-44060-C0iCXM10,SXM1#199805-200104

BLACK,202

main87940-44060-D0iCXM10,SXM1#199805-200104

RED MC.,3M8

main87940-44060-F0iSXM1#200010-200104

main87940-44060-G0iCXM10,SXM1#199805-200104

DK GREEN MICA,6M1

main87940-44060-H0iCXM10,SXM1#199805-200104

DK.TURQUOISE MC.,760

main87940-44060-J0iSXM1#199810-199903

main87940-44150-A0iSXM15200104-200208

WHITE PM.,042

main87940-44150-B0iACM1#,CXM10200104-200402

SILVER ME.,1C0

main87940-44150-C0iSXM15200104-200208

BLACK,202

main87940-44150-D0iSXM15200104-200208

RED MC.,3M8

main87940-44150-D1iACM1#,CXM10200104-200402

LT.ROSE M.M.,3Q1

main87940-44150-F0iSXM15200104-200208

CHAMPAGNE ME.,583

main87940-44150-G0iSXM15200104-200208

DK GREEN MICA,6M1

main87940-44150-J0iACM1#200208-200405

main87940-44151-A0iACM1#200402-200409

WHITE PM.,042

main87940-44151-B0iACM1#,CXM10200402-200409

SILVER ME.,1C0

main87940-44151-C0iACM1#,CXM10200402-200409

BLACK,202

main87940-44151-D0iACM1#,CXM10200402-200409

RED MC.,3M8

main87940-44151-D1iACM1#,CXM10200402-200409

LT.ROSE M.M.,3Q1

main87940-44151-F0iACM1#,CXM10200402-200409

CHAMPAGNE ME.,583

main87940-44151-G0iACM1#,CXM10200402-200409

DK GREEN MICA,6M1

main87940-44160-A0iACM1#..07S200309-200409

main87940-44160-B0iACM1#..07S200212-200309

main87940-44160-D0iACM10,SXM15200109-200207

main87940-44160-G0iACM1#..07S200309-200409

main87940-44160-J0iACM1#..07S200212-200309

main87940-44230-A0iACM1#200208-200402

main87940-44230-B0iACM1#,CXM10200208-200402

main87940-44230-C0iACM1#,CXM10200208-200402

main87940-44230-D0iACM1#,CXM10200208-200402

main87940-44230-D1iACM1#,CXM10200208-200402

main87940-44230-F0iACM1#,CXM10200208-200402

main87940-44230-G0iACM1#,CXM10200208-200402

main87940-44230-J0iACM1#200208-200405

main87940-44231-A0iACM1#200402-200409

main87940-44231-B0iACM1#,CXM10200402-200409

main87940-44231-C0iACM1#,CXM10200402-200409

main87940-44231-D0iACM1#,CXM10200402-200409

main87940-44231-D1iACM1#,CXM10200402-200409

main87940-44231-F0iACM1#,CXM10200402-200409

main87940-44231-G0iACM1#,CXM10200402-200409

main87940-44260-A0iACM1#..07S200212-200309

main87940-44260-B0iACM1#..07S200310-200409

main87940-44260-G0iACM1#..07S200310-200409

main87940-44260-J0iACM1#..07S200212-200309

9010906337

main90109-06337

9015450005

main90154-50005

10 parts on this diagram · 1 diagram in section
