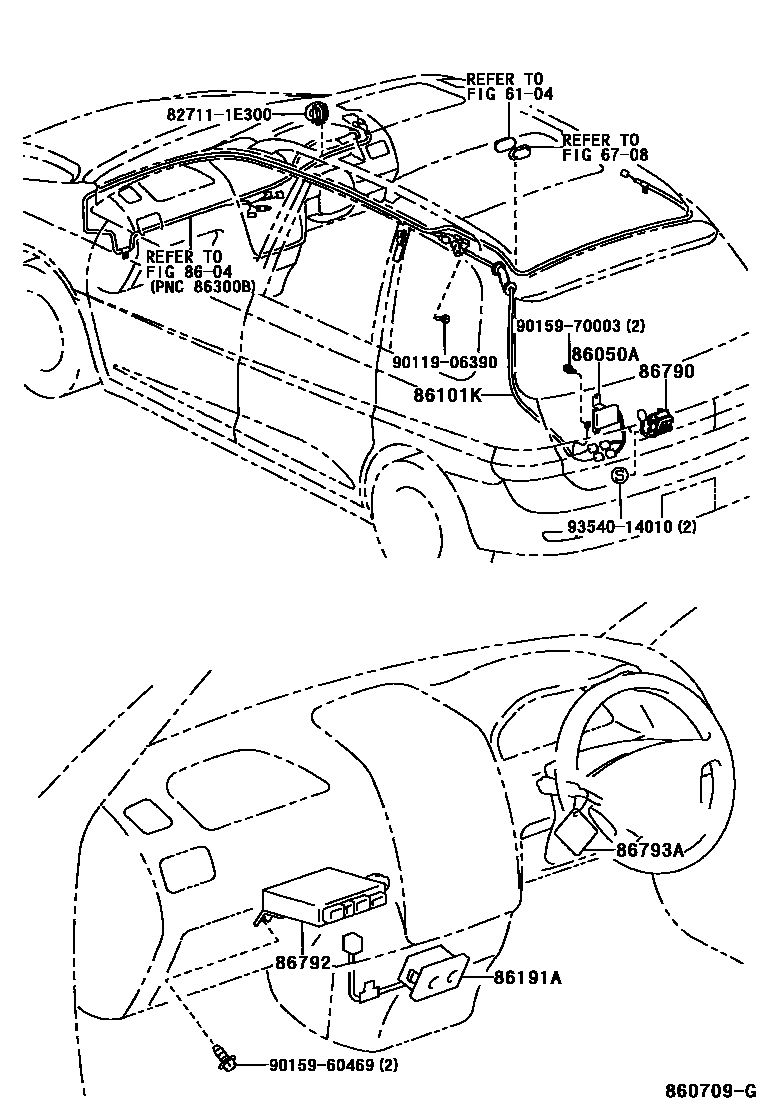

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

8604ANTENNA

→ Go to FIG 86-04

86050AANTENNA ASSY, TELEVISION

main86050-44011iCXM10,SXM1#199805-200104

main86050-44080iACM1#,CXM10,SXM15200104

86101KCORD SUB-ASSY, TELEVISION ANTENNA

main86101-44060iCXM10,SXM1#199805-200104

main86101-44230iACM10,CXM10,SXM15200104-200106

main86101-44280iACM1#,CXM10,SXM15200106

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

main86191-44010iCXM10,SXM1#199805-200104

86790CAMERA ASSY, TELEVISION

main86790-44020iCXM10,SXM1#199805-200104

main86790-44070iACM1#,CXM10,SXM15200104

86792CONTROLLER, TELEVISION CAMERA

main86792-44010iCXM10,SXM1#199805-200004

main86792-44040iACM1#,CXM10,SXM15200104

86793ALABEL, TELEVISION CAMERA INFORMATION

main86793-13010iCXM10,SXM1#199805-200104

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9011906390

main90119-06390

9015960469

main90159-60469

9015970003

main90159-70003

9354014010

main93540-14010

14 parts on this diagram · 2 diagrams in section
