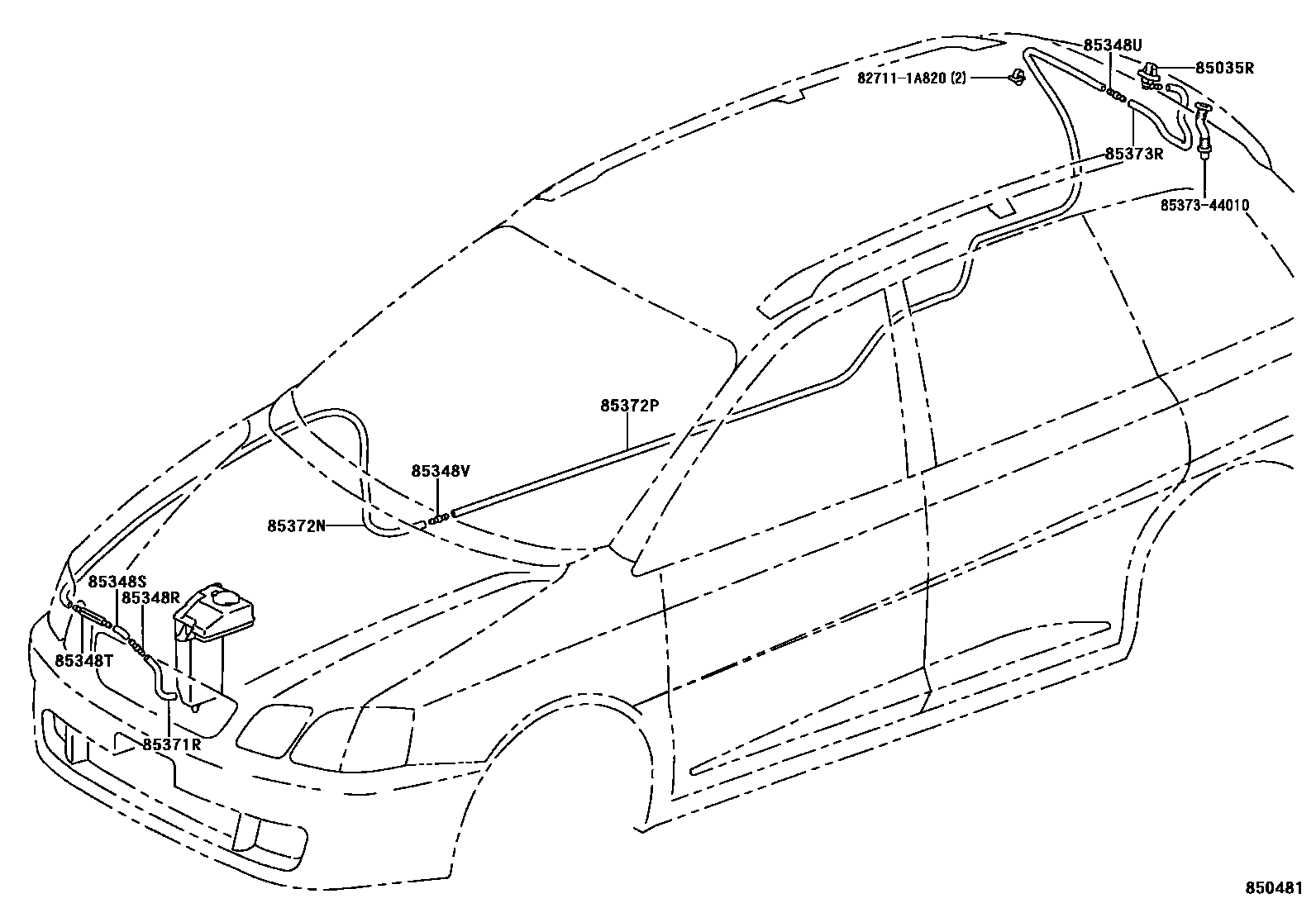

Toyota GAIA — REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
827111A820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537344010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
12 parts on this diagram · 2 diagrams in section
REAR WASHER for Toyota GAIA
This section contains 14 genuine Toyota parts for the REAR WASHER system of the Toyota GAIA. Key components include: WINDSHIELD WASHER, NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2.
