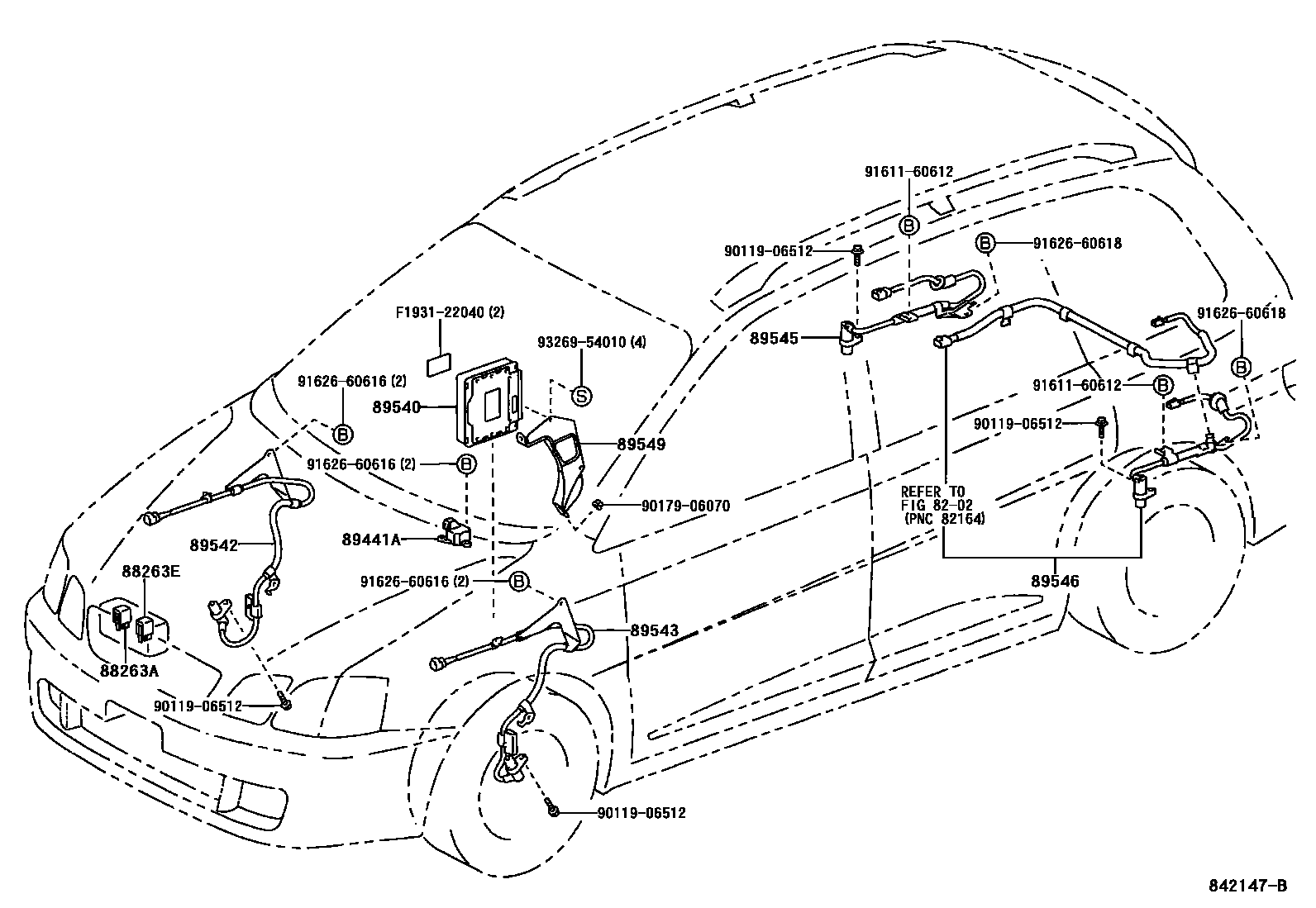

ABS & VSC

0001 1 0002 1 0003 1

8202WIRING & CLAMP

→ Go to FIG 82-02

88263ARELAY, SKID CONTROL

main88263-24030iCXM10,SXM1#199805-200104

main88263-32070iACM15,SXM15200104

88263ERELAY, SKID CONTROL NO.2

main88263-14110iSXM15199805-200104

89441ASENSOR, DECELERATION

main89441-42010iSXM15199805-200104

89540COMPUTER ASSY, SKID CONTROL

main89540-44070iCXM10,SXM10199805-200104

main89540-44140iSXM15200104-200208

main89540-44170iACM15200208

main89541-44030iSXM15199805-199903

main89541-44031iSXM15199903-199912

main89541-44032iSXM15199912-200104

89542SENSOR, SPEED, FRONT RH

main89542-20130iCXM10,SXM1#199805-199905

main89542-44010iCXM10,SXM1#199905-200104

89543SENSOR, SPEED, FRONT LH

main89543-20130iCXM10,SXM1#199805-199905

main89543-44010iCXM10,SXM1#199905-200104

89545SENSOR, SPEED, REAR RH

main89545-44010iSXM15199805-200104

89546SENSOR, SPEED, REAR LH

main89546-44020iSXM15199805-199807

main89546-44021iSXM15199807-200104

89549BRACKET, SKID CONTROL COMPUTER

main89549-44030iCXM10,SXM1#199805-200104

9011906512

main90119-06512

9017906070

main90179-06070

9161160612

main91611-60612

9162660616

main91626-60616

9162660618

main91626-60618

9326954010

main93269-54010

F193122040

mainF1931-22040

17 parts on this diagram · 3 diagrams in section
