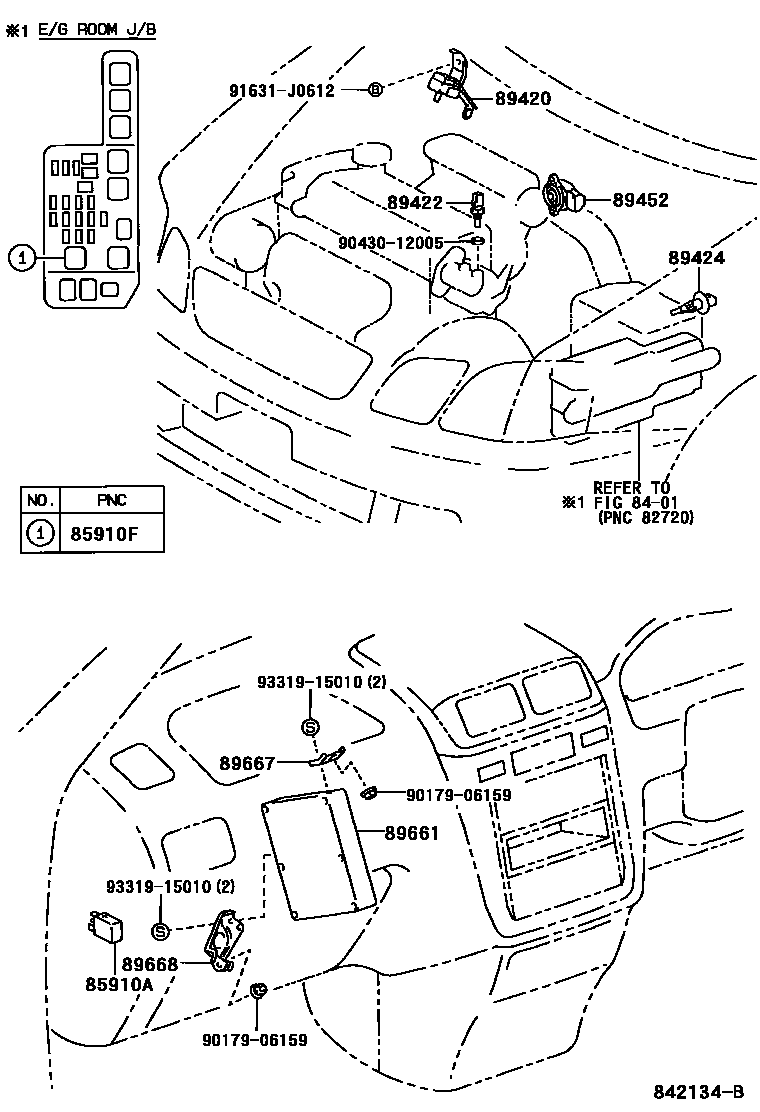

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iSXM1#199805-200104

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iSXM1#199805-200104

main90987-02012iACM1#,SXM15200104

89420SENSOR ASSY, VACUUM

main89420-44040iSXM1#199805-200104

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iSXM1#199805-200104

main89422-22030iSXM15200104-200208

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iSXM1#199805-200104

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-33030iSXM1#199805-200104

89661COMPUTER, ENGINE CONTROL

main89661-44100iSXM10199805-200104

main89661-44110iSXM15199805-200104

main89661-44310iACM10200104

main89661-44340iACM15200208

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-44030iSXM1#199805-200104

main89667-44080iACM1#200104

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-44030iSXM1#199805-200104

main89668-44120iACM1#200104

9017906159

main90179-06159

9043012005

main90430-12005

91631J0612

main91631-J0612

9331915010

main93319-15010

14 parts on this diagram · 2 diagrams in section
