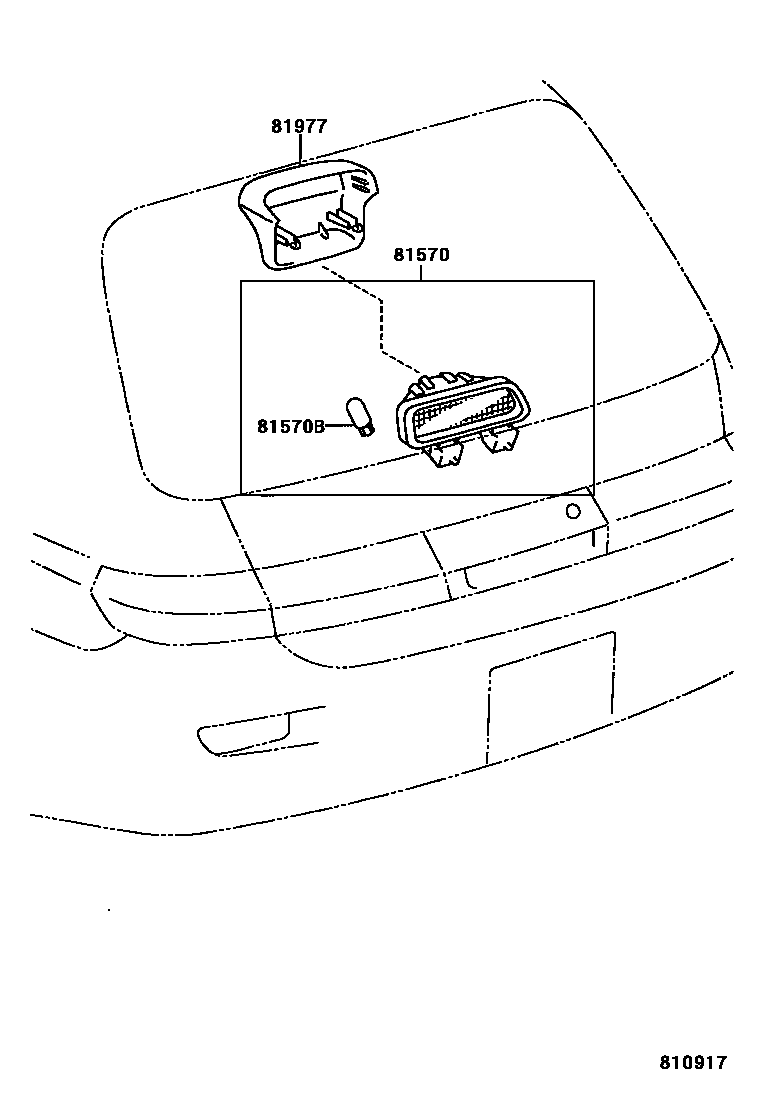

CENTER STOP LAMP

0001 1 0002 1�� ����� ����

81570LAMP ASSY, CENTER STOP

main81570-44030-B0iCXM10,SXM1#199805-200104

DK.CHARCOAL,TRIM0#

main81570-44050iSXM1#200001-200104

81570BBULB (FOR CENTER STOP LAMP)

main90981-13043iCXM10,SXM1#199805-200104

81977COVER, CENTER STOP LAMP

main81977-44030-A0iCXM10,SXM1#199805-200104

IVORY,TRIM0#

3 parts on this diagram · 2 diagrams in section
