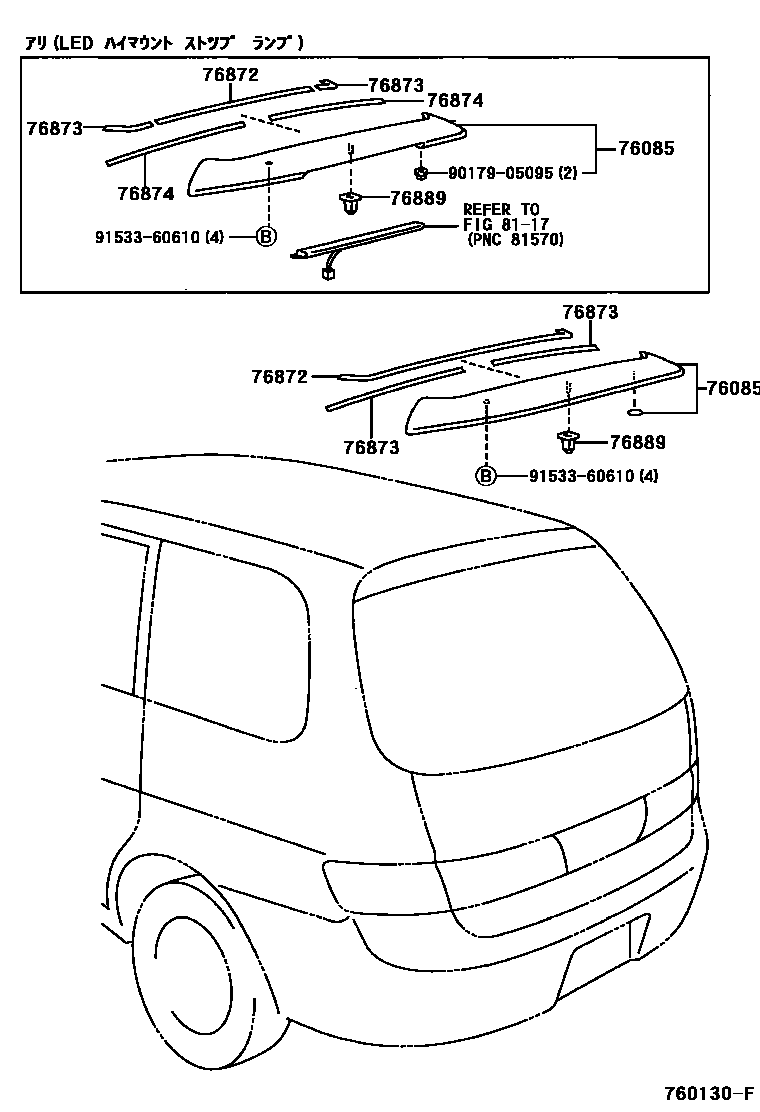

MUDGUARD & SPOILER

0001 1 0002 1

76085SPOILER SUB-ASSY, REAR

main76085-44900iCXM10,SXM1#199805-200104

main76871-44903iSXM1#200004-200104

76872PROTECTOR, REAR SPOILER, NO.1

main76872-44010iACM1#,CXM10,SXM15200104

76873PROTECTOR, REAR SPOILER, NO.2

main76873-44030×2iCXM10,SXM1#199805-200104

main76873-44080×2iSXM15200104-200208

76874PROTECTOR, REAR SPOILER, NO.3

main76873-44030×2iSXM1#200004-200104

76889CLIP, REAR SPOILER, NO.2

main76889-44020iACM1#,CXM10,SXM15200104

8117CENTER STOP LAMP

→ Go to FIG 81-17

9017905095

main90179-05095

9153360610

main91533-60610

8 parts on this diagram · 2 diagrams in section
