513110
›

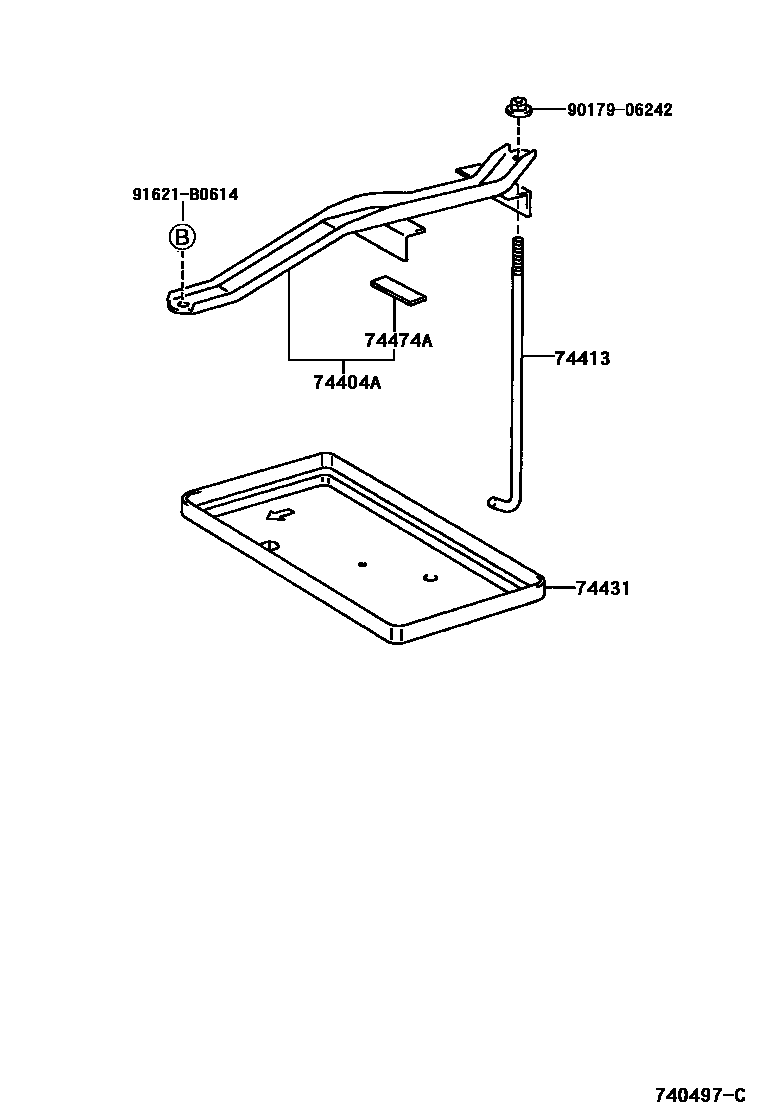

BATTERY CARRIER
BATTERY CARRIER
74404A
CLAMP SUB-ASSY, BATTERY
main
74404-44011
i
SXM1#
199805-200104
main
74404-44030
i
CXM10
199805-200104
74413
BOLT, BATTERY CLAMP
main
74451-10060
i
ACM1#,CXM10,SXM15
199805-200104
74431
TRAY, BATTERY
main
74431-44011
i
SXM1#
199805-200104
main
74431-44040
i
CXM10
199805-200104
74474A
SPACER, BATTERY, NO.2
main
74474-22010
i
ACM1#,SXM15
200104
9017906242
main
90179-06242
91621B0614
main
91621-B0614
6 parts on this diagram · 1 diagram in section
