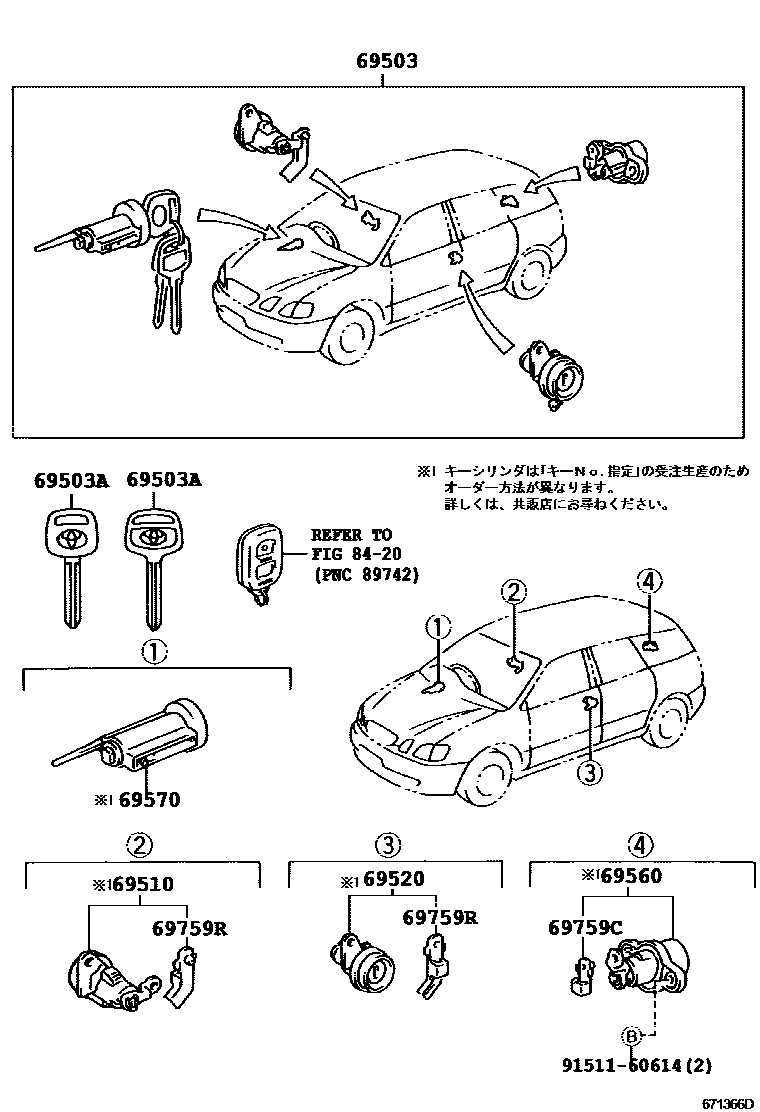

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-44050iCXM10,SXM1#199805-200104

69503AKEY, BLANK

main90999-00185iCXM10,SXM1#199805-200104

main90999-00186×2iSXM15200104-200208

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-44010iCXM10,SXM1#199805-200104

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-44020iACM1#,CXM10,SXM15200104-200409

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-44020iCXM10,SXM1#199805-200104

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-44030iCXM10,SXM1#199805-200104

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24090iCXM10,SXM1#199805-200104

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-44010iCXM10,SXM1#199805-200104

main69759-44020iACM1#,CXM10,SXM15200104

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9151160614

main91511-60614

10 parts on this diagram · 2 diagrams in section
