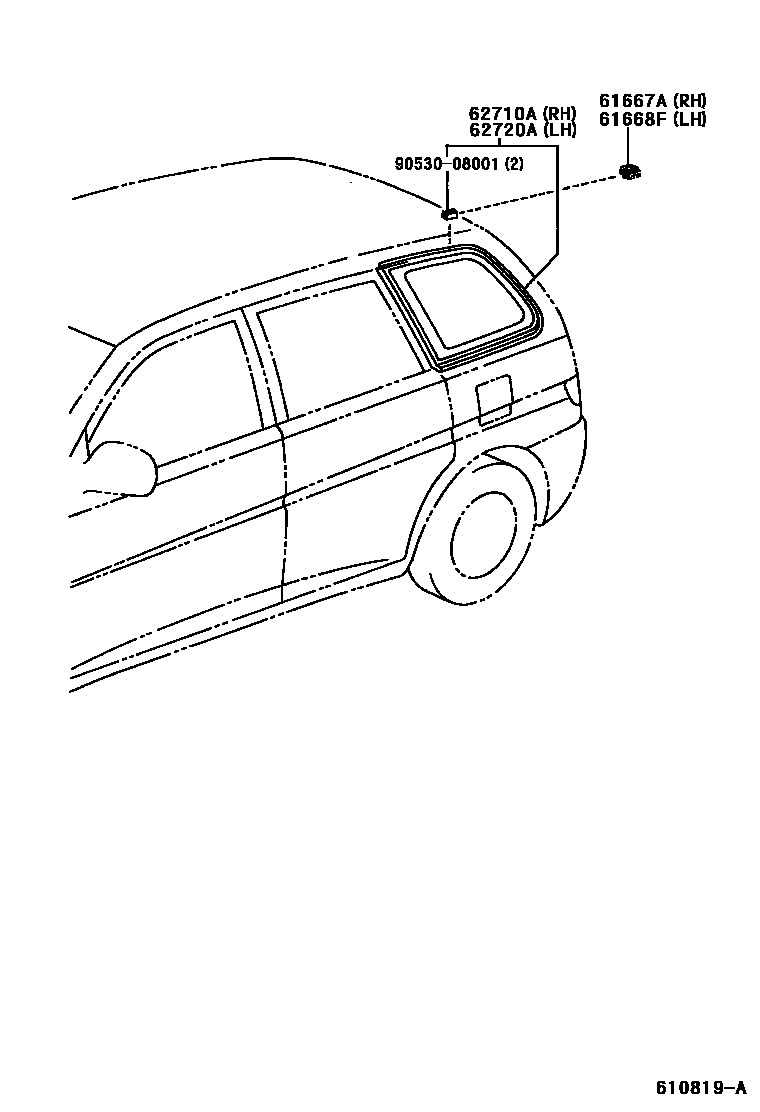

QUARTER WINDOW

61667ASPACER QUARTER PANEL, NO.1

main61667-14030iCXM10,SXM1#199805-200104

61668FSPACER, QUARTER PANEL, NO.2

main61667-14030iCXM10,SXM1#199805-200104

62710AWINDOW ASSY, QUARTER, RH

main62710-44040iCXM10,SXM1#199805-200104

main62710-44050iCXM10,SXM1#199805-200104

main62710-44060iCXM10,SXM1#199805-200104

main62710-44070iCXM10,SXM1#199805-200104

main62710-44260iSXM1#200004-200104

main62710-44270iSXM1#200004-200104

main62710-44380iACM1#,CXM10,SXM15200104

main62710-44390iACM1#,CXM10,SXM15200104

62720AWINDOW ASSY, QUARTER, LH

main62720-44040iCXM10,SXM1#199805-200104

main62720-44050iCXM10,SXM1#199805-200104

main62720-44240iSXM1#200004-200104

main62720-44370iACM1#,CXM10,SXM15200104

9053008001

main90530-08001

5 parts on this diagram · 1 diagram in section
