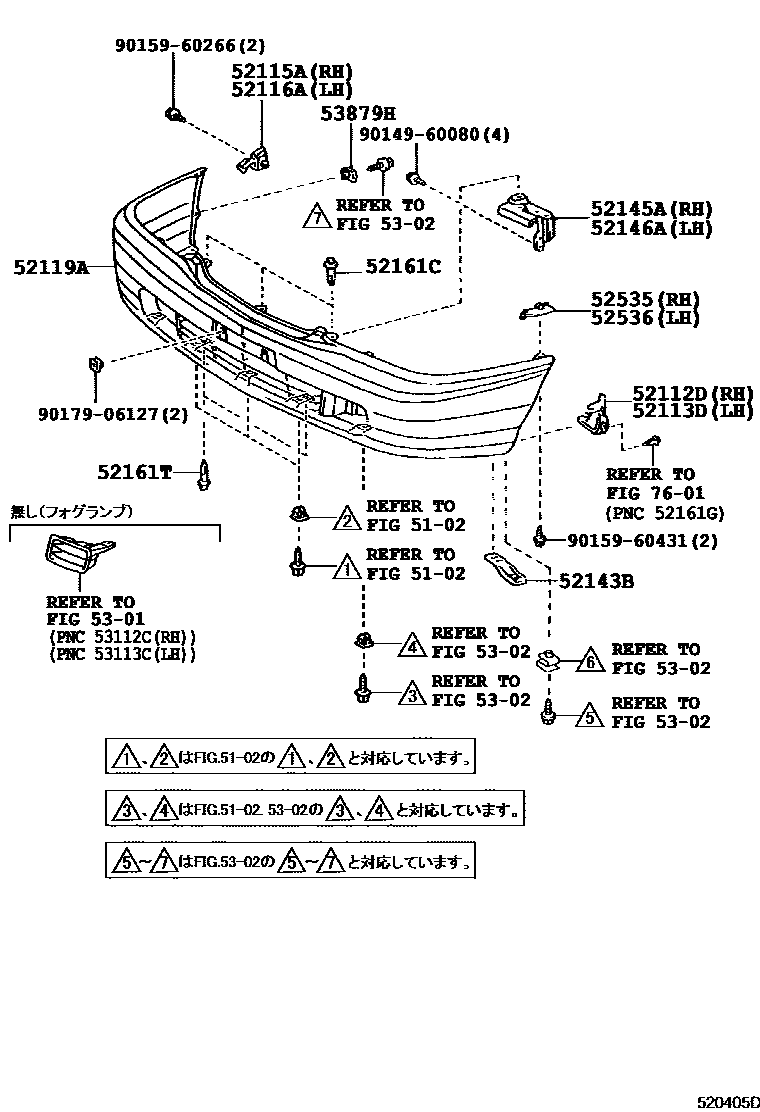

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52112DEXTENSION, FRONT BUMPER, RH
52113DEXTENSION, FRONT BUMPER, LH
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
WHITE PM.,057
SILVER GR.SF.,1B9
SILVER ME.,1C0
BLACK,202
RED MC.,3M8
LT.ROSE M.M.,3Q1
DK GREEN MICA,6M1
DK.TURQUOISE MC.,760
52143BBRACKET, FRONT BUMPER SIDE
52145ASTAY, FRONT BUMPER, NO.2 RH
52146ASTAY, FRONT BUMPER, NO.2 LH
52161CPIECE, FRONT BUMPER
MOON GRAY,057 ,1B9
52161TPIECE, FRONT BUMPER
BLACK,057 ,1B9 ,199 ,202 ,3M8 ,6M1 ,760; BLACK,1B9 ,202 ,3M8 ,6M1 ,760
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
5301RADIATOR GRILLE
5302HOOD & FRONT FENDER
53879HRETAINER, FRONT FENDER LINER
7601MUDGUARD & SPOILER
9014960080
main90149-60080
9015960266
main90159-60266
9015960431
main90159-60431
9017906127
main90179-06127
21 parts on this diagram · 2 diagrams in section
