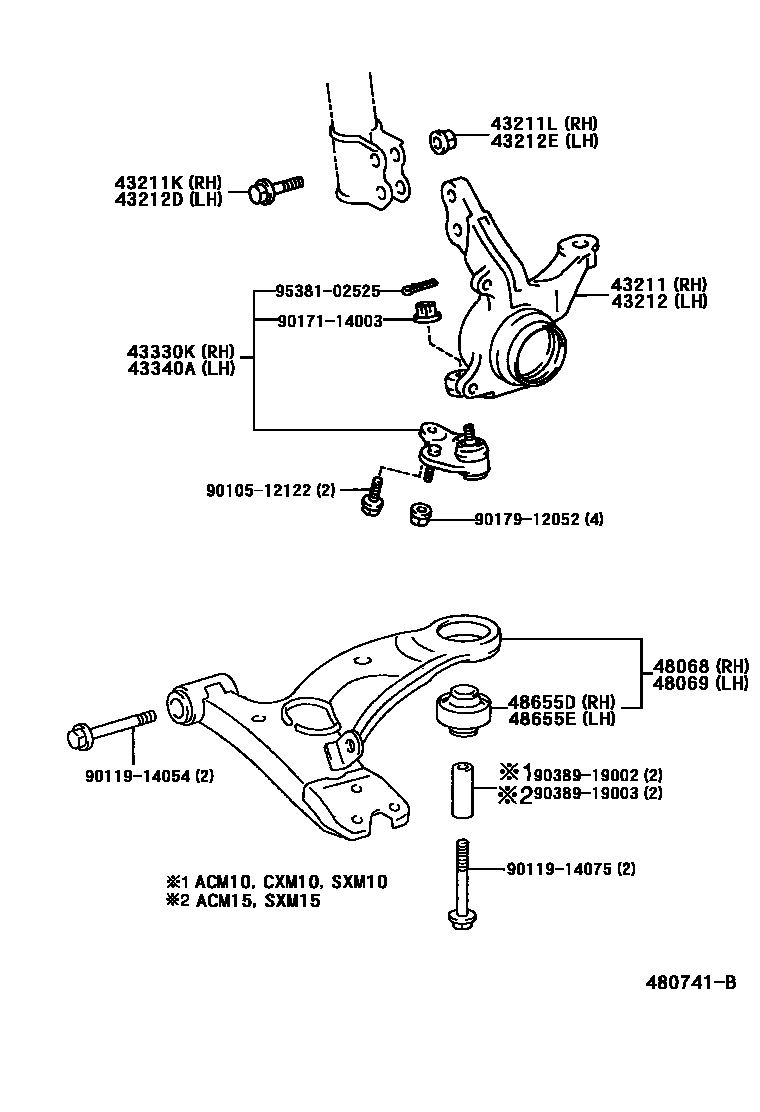

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-44010iCXM10,SXM10199805-199905

main43211-44011iCXM10,SXM10199905-200104

main43211-44030iSXM15199805-199905

main43211-44031iSXM15199905-200104

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001×2iCXM10,SXM1#199805-200104

main90105-15004iACM1#,CXM10,SXM15200104

main90105-15005iCXM10,SXM1#199805-200104

main90105-15006iCXM10,SXM1#199805-200104

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006×2iCXM10,SXM1#199805-200104

43212KNUCKLE, STEERING, LH

main43212-44010iCXM10,SXM10199805-199905

main43212-44011iCXM10,SXM10199905-200104

main43212-44030iSXM15199805-199905

main43212-44031iSXM15199905-200104

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001×2iACM1#,CXM10,SXM15200104

main90105-15004iCXM10,SXM1#199805-200104

main90105-15005iCXM10,SXM1#199805-200104

main90105-15006iCXM10,SXM1#199805-200104

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006×2iCXM10,SXM1#199805-200104

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29375iCXM10,SXM1#199805-200104

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29375iCXM10,SXM1#199805-200104

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-44010iACM10,CXM10200104

main48068-44020iACM15,SXM15200104

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-44010iACM10,CXM10200104

main48069-44020iACM15,SXM15200104

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-44010iACM10,CXM10200104

main48655-44020iSXM15199805-200104

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-44010iCXM10,SXM10199805-200104

main48655-44020iSXM15199805-200104

9010512122

main90105-12122

9011914054

main90119-14054

9011914075

main90119-14075

9017114003

main90171-14003

9017912052

main90179-12052

9038919002

main90389-19002

9038919003

main90389-19003

9538102525

main95381-02525

20 parts on this diagram · 2 diagrams in section
