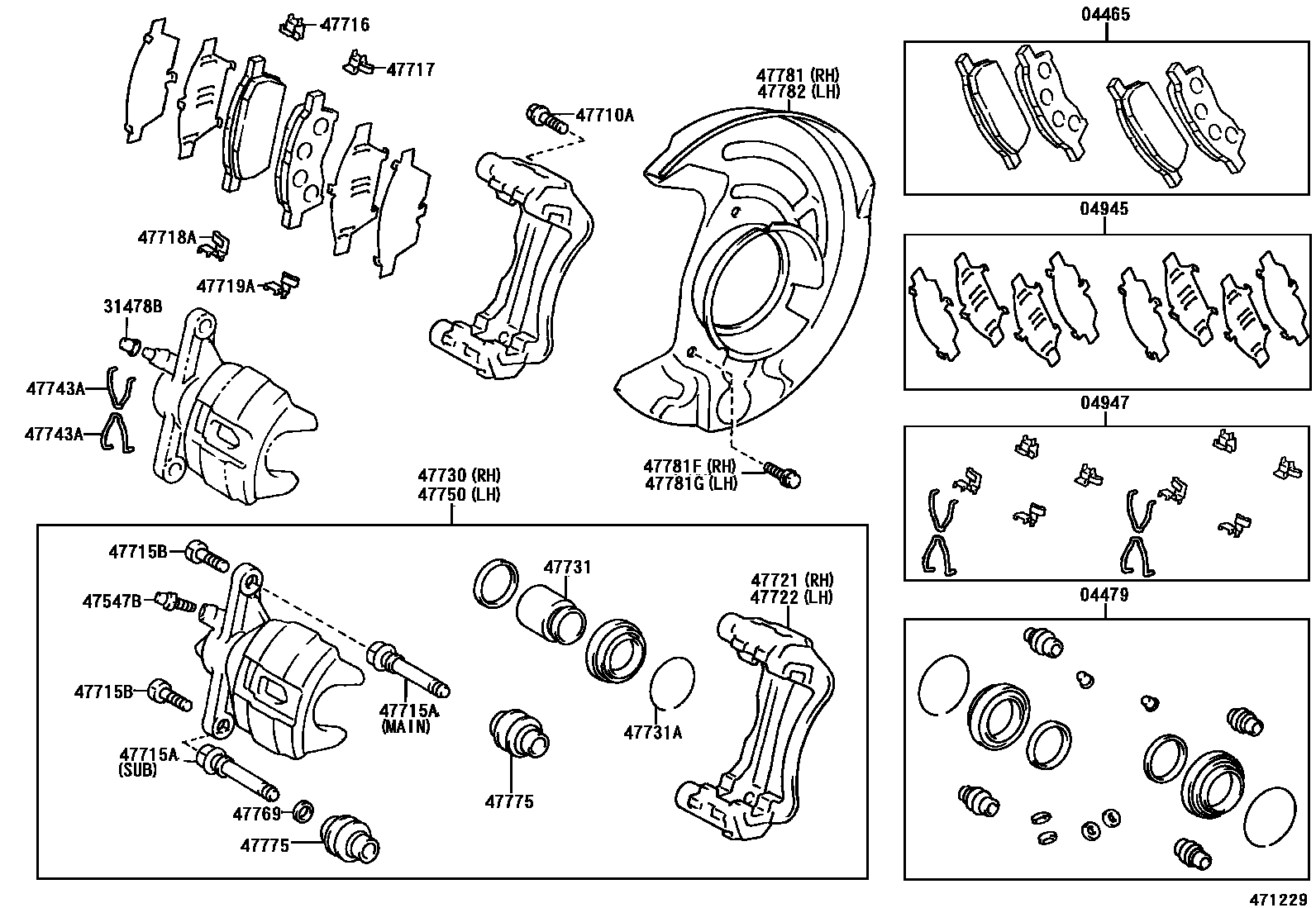

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-33120iACM1#,CXM10200208-200409

sub04465-33121

main04465-33121iACM10,CXM10,SXM15200104-200208

main04465-44030iCXM10,SXM1#199805-200104

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-44010iCXM10,SXM1#199805-200104

sub04479-44040

main04479-44050iACM1#,CXM10,SXM15200104

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33040iACM10,CXM10,SXM15200104-200207

main04945-44010iCXM10,SXM1#199805-200104

main04945-44030iACM1#,CXM10200208-200409

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33040iCXM10,SXM1#199805-200104

main04947-33160iACM1#,CXM10,SXM15200104

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCXM10,SXM1#199805-200104

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iACM1#,CXM10,SXM15200104-200409

main47547-27030iCXM10,SXM1#199805-200104

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iACM1#,CXM10,SXM15199805-200409

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48050iACM1#,CXM10200303-200409

main47715-22070iCXM10,SXM1#199805-200104

main47715-22080iCXM10,SXM1#199805-200104

main47715-48010iACM1#,CXM10,SXM15200104-200303

main47715-48020iACM1#,CXM10,SXM15200104-200303

main47715-48050iACM1#,CXM10200303-200409

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iCXM10,SXM1#199805-200104

main90105-08346iACM1#,CXM10,SXM15200104-200409

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33010iCXM10,SXM1#199805-200104

main47716-33080iACM1#,CXM10,SXM15200104-200409

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020iCXM10,SXM1#199805-200104

main47717-33070iACM1#,CXM10,SXM15200104-200409

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-33010iCXM10,SXM1#199805-200104

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-33020iCXM10,SXM1#199805-200104

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33080iACM1#,CXM10,SXM15200104-200303

sub47721-33081

main47721-33081iACM1#,CXM10200303-200409

main47721-44010iCXM10,SXM1#199805-200104

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-33080iACM1#,CXM10,SXM15200104-200303

sub47721-33081

main47721-33081iACM1#,CXM10200303-200409

main47722-44010iCXM10,SXM1#199805-200104

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33120iACM1#,CXM10,SXM15200104-200308

main47730-33161iACM1#,CXM10200308-200409

main47730-44010iCXM10,SXM1#199805-200104

47731PISTON, FRONT DISC BRAKE

main47731-33050iACM1#,CXM10,SXM15200104-200409

main47731-44010iCXM10,SXM1#199805-200104

sub47731-33010

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iCXM10,SXM1#199805-200104

main90522-67001iACM1#,CXM10,SXM15200104-200409

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-50030iCXM10,SXM1#199805-200104

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33120iACM1#,CXM10,SXM15200104-200307

main47750-33161iACM1#,CXM10200308-200409

main47750-44010iCXM10,SXM1#199805-200104

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020iACM1#,CXM10,SXM15200104-200409

main47769-50010iCXM10,SXM1#199805-200104

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iCXM10,SXM1#199805-200104

sub47775-50010

main47775-33020iACM1#,CXM10,SXM15200104-200409

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33010iCXM10,SXM1#199805-200104

main47781-33020iSXM15200104-200409

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227iCXM10,SXM1#199805-200409

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227iCXM10,SXM1#199805-200409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33010iCXM10,SXM1#199805-200104

main47782-33020iSXM15200104-200409

26 parts on this diagram · 2 diagrams in section
