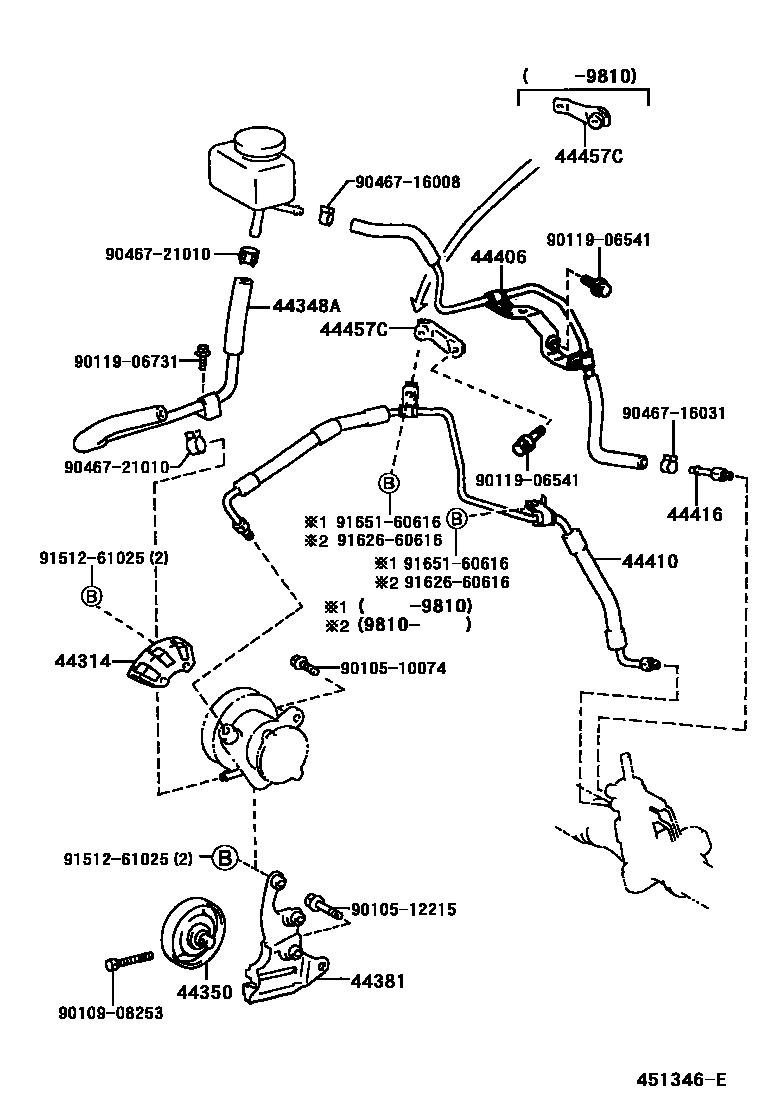

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44314COVER, PULLEY

main44314-44010iCXM10200104

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-44010iSXM10199805-200104

main44348-44020iSXM15199805-200104

main44348-44030iCXM10199805-200104

main44348-44031iCXM10200104

main44348-44080iACM1#200104

44350PULLEY ASSY, POWER STEERING IDLE

main44350-20060iCXM10200104

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-20030iCXM10199805-200104

44406TUBE SUB-ASSY, RETURN

main44406-44011iSXM10199805-200104

main44406-44021iSXM15199805-200104

main44406-44022iSXM15200104-200208

main44406-44060iCXM10199805-200104

main44406-44150iACM10200104

main44406-44170iACM15200208

44410TUBE ASSY, PRESSURE FEED

main44410-44010iSXM10199805-200104

main44410-44020iSXM15199805-200104

main44410-44050iCXM10199805-199810

main44410-44051iCXM10200104

main44410-44150iACM10200104

main44410-44160iACM15200208

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iCXM10,SXM1#199805-200104

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-44010iCXM10199805-199810

main44457-44011iCXM10199810-200104

main44457-44020iACM1#,SXM15; CXM10200104

9010510074

main90105-10074

9010512215

main90105-12215

9010908253

main90109-08253

9011906541

main90119-06541

9011906731

main90119-06731

9046716008

main90467-16008

9046716031

main90467-16031

9046721010

main90467-21010

9151261025

main91512-61025

9162660616

main91626-60616

9165160616

main91651-60616

19 parts on this diagram · 6 diagrams in section
