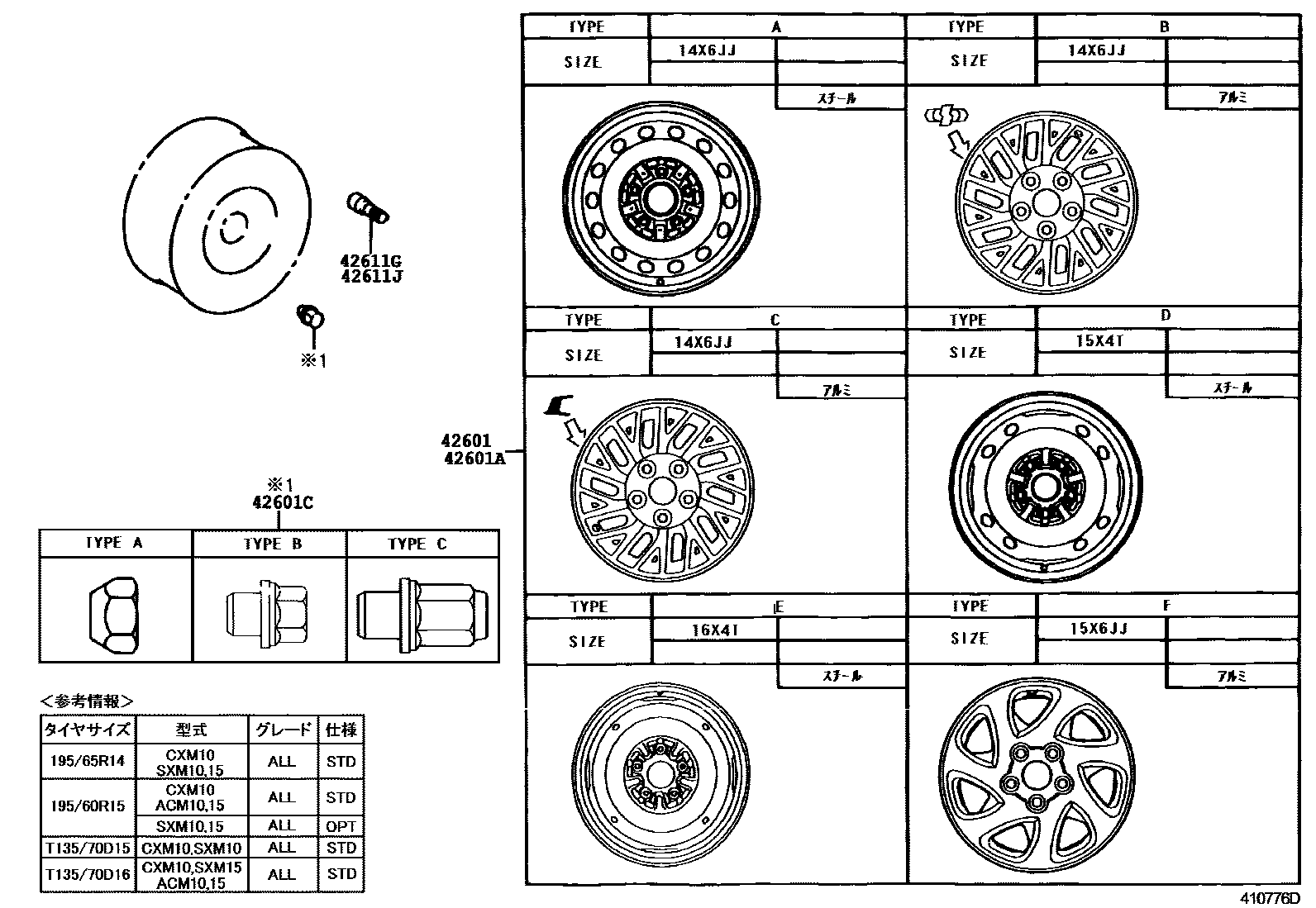

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-33010-01×4iACM1#,CXM10,SXM15200104

main42611-33110×4iACM1#,CXM10,SXM15200104

main42611-44010×4iCXM10,SXM1#199805-200104

main42611-44020×4iCXM10,SXM1#199805-200104

main42611-44030×4iCXM10,SXM1#199805-200104

main42611-44050×4iSXM1#199904-200009

main42611-44120×4iACM1#,SXM15200104

42601AWHEEL, DISC (FOR SPARE)

main42611-17130iCXM10,SXM10199805-200104

main42611-28210iSXM15199805-200104

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iACM1#,CXM10,SXM15200104

main90942-01058×20iSXM1#200005-200104

main90942-01062×20iCXM10,SXM1#199805-200104

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iACM1#,CXM10,SXM15200104

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iCXM10,SXM1#199805-200104

5 parts on this diagram · 3 diagrams in section
