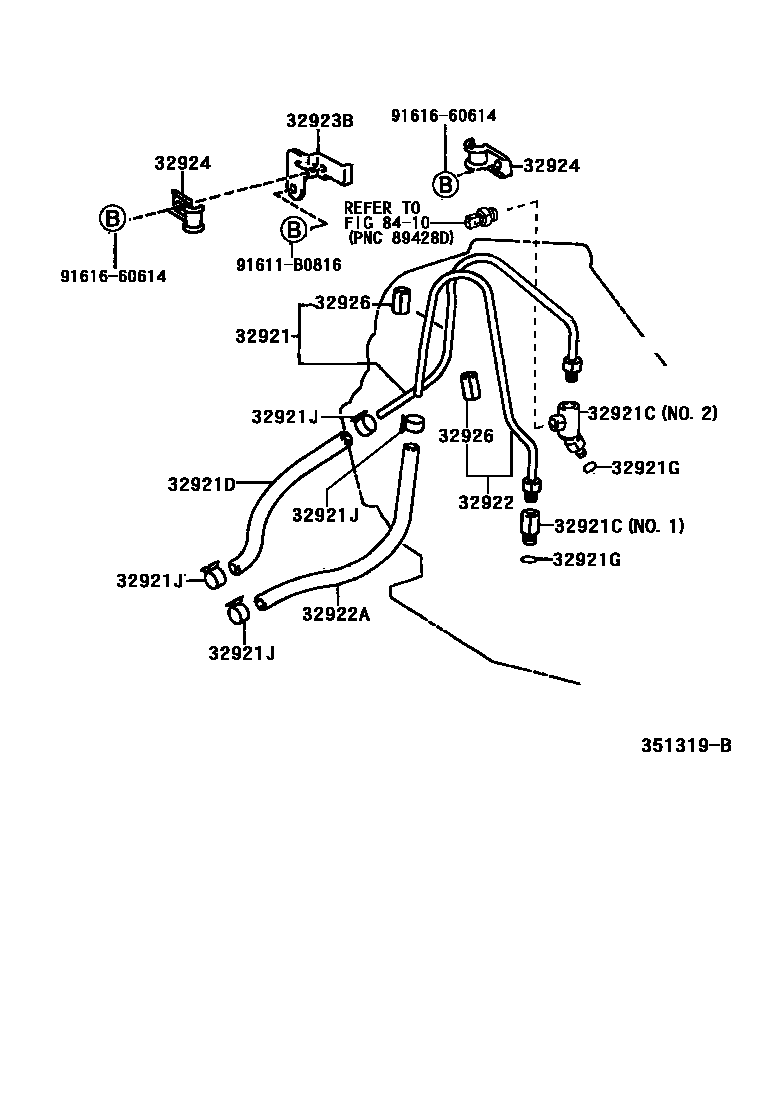

Toyota GAIA — OIL COOLER & TUBE (ATM)
32921TUBE, OIL COOLER INLET, NO.1
32921CUNION(FOR OIL COOLER TUBE)
32921DHOSE(FOR OIL COOLER INLET)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921JCLIP(FOR OIL COOLER HOSE)
32922TUBE, OIL COOLER OUTLET, NO.1
32922AHOSE(FOR OIL COOLER OUTLET)
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32924CLAMP, OIL COOLER TUBE, NO.2
32926CUSHION, OIL COOLER TUBE(ATM)
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
91611B0816
9161660614
13 parts on this diagram · 3 diagrams in section
OIL COOLER & TUBE (ATM) for Toyota GAIA
This section contains 15 genuine Toyota parts for the OIL COOLER & TUBE (ATM) system of the Toyota GAIA. Key components include: TUBE, OIL COOLER INLET, NO.1, UNION(FOR OIL COOLER TUBE), HOSE(FOR OIL COOLER INLET), RING, O(FOR OIL COOLER TUBE UNION), CLIP(FOR OIL COOLER HOSE).
