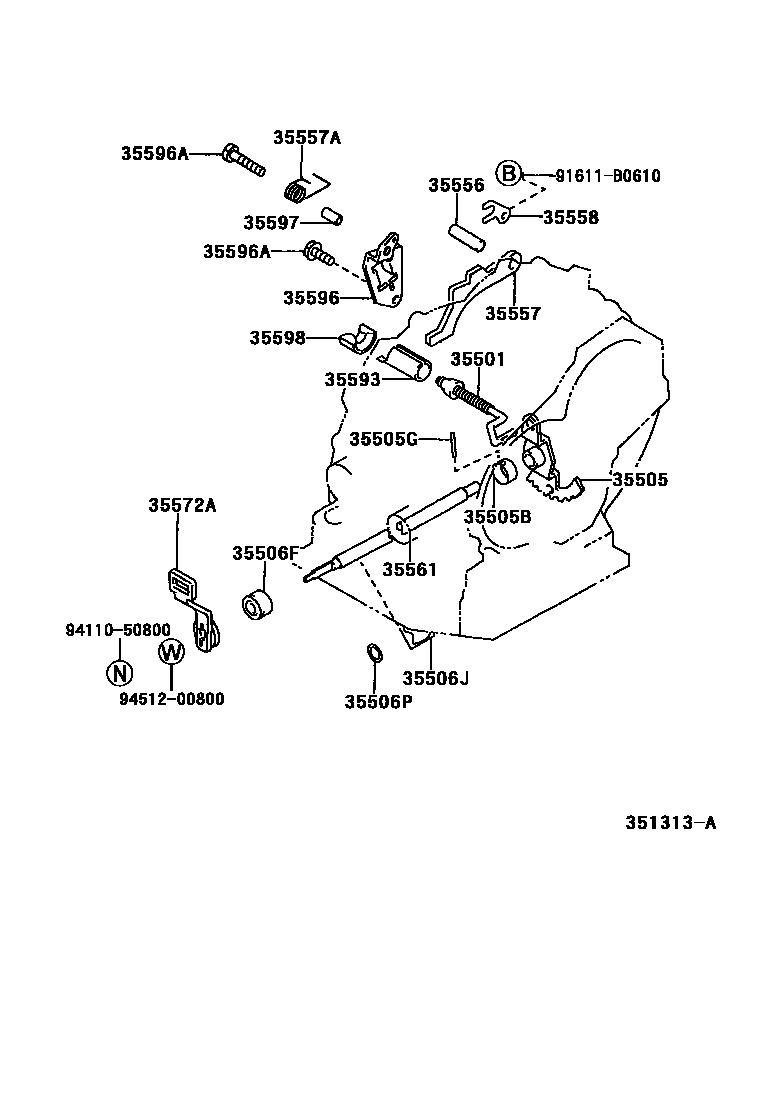

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A241E,A243F,A247E,A248F 0002 1A247E 0003 1A243F 0004 1A241E

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iCXM10,SXM1#199805-200104

main35501-12030iACM15200309-200409

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-10030iCXM10,SXM15200204-200409

main35505-20040iCXM10,SXM15200104-200204

main35505-44010iSXM10199805-200104

main35505-44020iACM15200309-200409

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iCXM10,SXM1#199805-200104

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACM10; CXM10; SXM15200104-200409

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iCXM10,SXM1#199805-200104

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-11001iACM10; CXM10; SXM15200104-200409

35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

main90201-12028iACM15200104-200309

35556SHAFT, PARKING LOCK PAWL

main35556-12020iACM10; CXM10; SXM15200104-200409

35557PAWL, PARKING LOCK

main35557-12020iCXM10,SXM1#199805-200104

main35557-12030iACM15200104-200309

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iCXM10,SXM1#199805-200104

main90949-03060iACM10200104-200409

35558CLAMP, PAWL SHAFT

main35558-12010iACM10; CXM10; SXM15200104-200409

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iCXM10,SXM15199805-200104

main35561-12030iSXM10199805-200104

main35561-12040iACM15200104-200309

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12120iCXM10199805-200104

main35572-44020iSXM15199805-200104

main35572-44030iSXM10199805-200104

main35572-44040iACM1#200104-200409

35593SLEEVE, CAM GUIDE

main35593-12010iCXM10,SXM1#199805-200104

35596PLATE, PAWL STOPPER

main35596-12010iCXM10,SXM1#199805-200104

35596ABOLT (FOR PAWL STOPPER PLATE)

main90105-08068iCXM10,SXM1#199805-200104

main90105-08070iCXM10; SXM15200104-200409

main90105-08333iACM10; CXM10; SXM15200104-200409

35597SLEEVE, SPRING GUIDE

main35597-12010iCXM10,SXM1#199805-200104

35598SLEEVE, PARKING LOCK

main35598-12010iCXM10,SXM1#199805-200104

91611B0610

main91611-B0610

9411050800

main94110-50800

9451200800

main94512-00800

21 parts on this diagram · 4 diagrams in section
