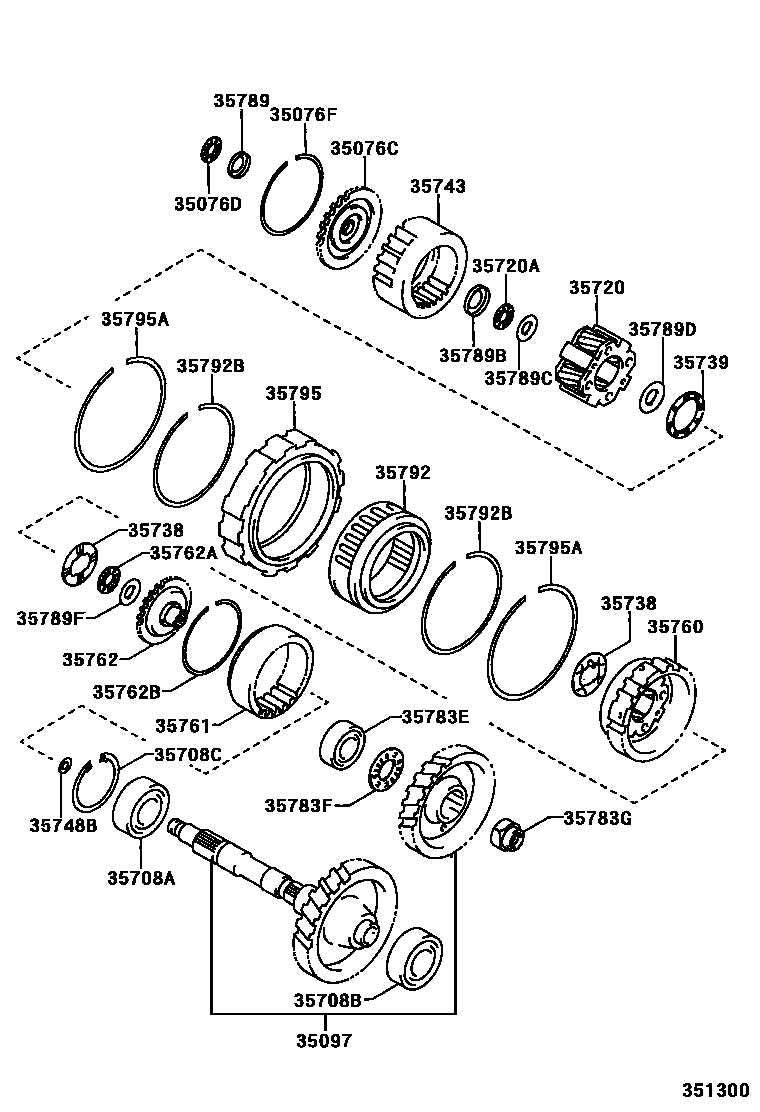

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A241E,A243F 0002 1A247E,A248F

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iSXM10199805-200104

main35076-32030iCXM10,SXM15200104-200409

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iCXM10,SXM15200202-200409

main90374-22005iCXM10,SXM15200104-200202

main90374-25007iSXM10199805-199909

main90374-25009iSXM10199909-200104

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iCXM10,SXM1#199805-200104

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12050iACM10200104-200409

main35097-20050iSXM15199805-200104

main35097-20060iCXM10199805-200104

main35097-20070iACM15200208-200409

35708ABEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT FRONT)

main90363-40024iCXM10,SXM15200104

35708BBEARING, RADIAL BALL (FOR INTERMEDIATE SHAFT REAR)

main90363-40024iCXM10200104

main90363-40042iSXM15200104-200208

35708CRING, HOLE SNAP (FOR INTERMEDIATE SHAFT FRONT BEARING)

main90521-76003iCXM10,SXM15199805-200104

35720GEAR ASSY, FRONT PLANETARY

main35720-17010iCXM10,SXM1#199805-200104

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iCXM10,SXM15200202-200206

main90374-22004iSXM10199805-199909

main90374-22005iCXM10,SXM15199805-200104

main90374-22009iACM1#,CXM10200206-200409

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-32010×2iCXM10,SXM1#199805-200104

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-32011iCXM10,SXM1#199805-200104

35743GEAR, FRONT PLANETARY RING

main35743-32040iCXM10,SXM1#199805-200104

35748BRING, INTERMEDIATE SHAFT OIL SEAL

main35748-32010iCXM10,SXM1#199805-200104

35760GEAR ASSY, REAR PLANETARY

main35760-32010iACM10,SXM15200104-200204

main35760-32030iCXM10200104-200204

35761GEAR, REAR PLANETARY RING

main35761-32010iCXM10,SXM15199805-200104

35762FLANGE, REAR PLANETARY RING GEAR

main35762-32010iCXM10,SXM15199805-200104

35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)

main90374-24002iCXM10,SXM15200104

35762BRING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90521-90001iCXM10,SXM15200104

35783EBEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR)

main90365-37001iCXM10200110-200401

main90365-37004iACM1#200401-200409

main90365-38004iCXM10200401-200409

35783FBEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR)

main90374-41001iCXM10,SXM1#199805-200104

35783GNUT(FOR COUNTER DRIVEN GEAR)

main90179-20013iCXM10,SXM15200104-200409

main90179-22021iSXM10199805-200104

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iSXM10199805-200104

main35789-32050iCXM10,SXM15199805-200104

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-32040iCXM10,SXM15200104

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iCXM10,SXM1#199805-200104

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-32070iCXM10,SXM15200104

35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)

main35789-32080iCXM10,SXM15200104

35792CLUTCH, 1 WAY, NO.2

main35792-20020iCXM10,SXM1#199805-200104

main35792-20030iACM10200104-200110

main35792-44010iACM1#200110-200409

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010×2iCXM10200110-200409

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iACM1#200104-200409

main35795-32010iCXM10,SXM1#199805-199908

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011×2iCXM10200110-200409

30 parts on this diagram · 2 diagrams in section
