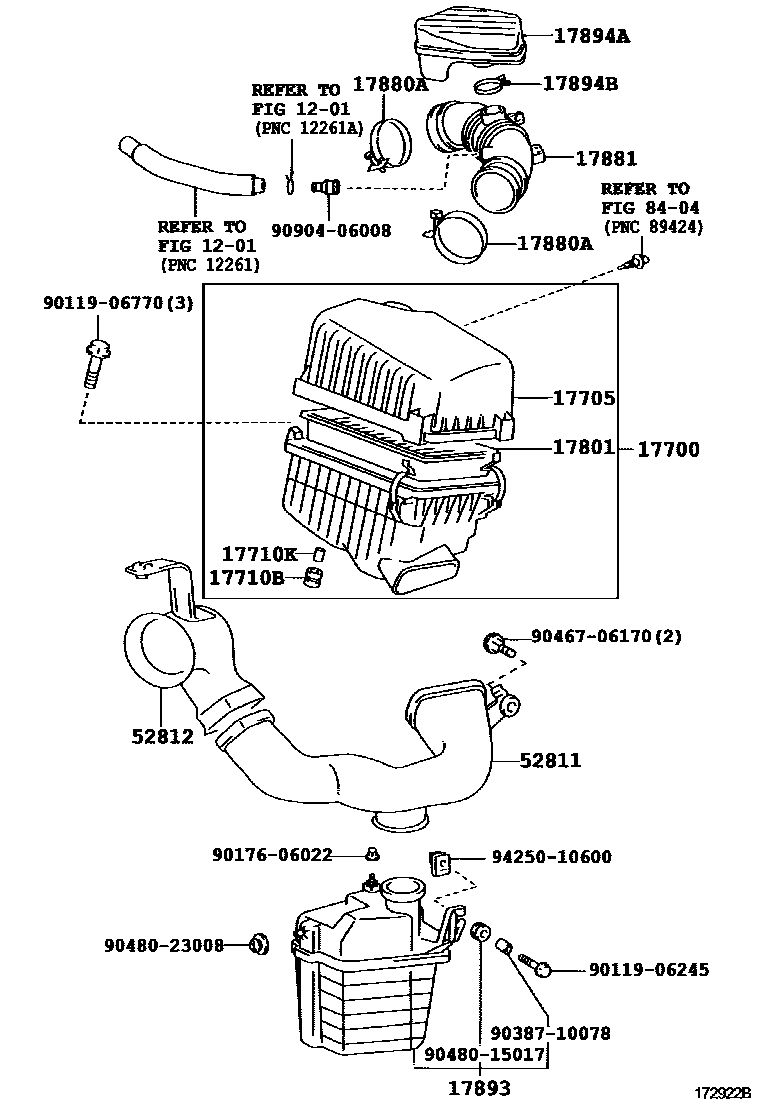

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201

17700CLEANER ASSY, AIR

main17700-64421i3CTE..CXM10199805-200104

main17700-74581i3SFE..SXM1#199805-200208

main17700-74720i1AZFSE..ACM1#200104

17705CAP SUB-ASSY, AIR CLEANER

main17705-64291i3CTE..CXM10199805-200104

main17705-74411i3SFE..SXM1#199805-200208

main17705-74520i1AZFSE..ACM1#200104

17710BGROMMET

main90480-11014i1AZFSE..ACM1#199805-200208

17710KCOLLAR(FOR AIR CLEANER)

main90387-09064i3SFE..SXM1#199805-200208

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64060i3CTE..CXM10199805-200104

sub17801-64070

main17801-74020i3SFE..SXM15199805-200208

17880HOSE ASSY, AIR CLEANER

main17880-64390i3CTE..CXM10199805-200104

main17880-74621i3SFE..SXM1#199805-200208

17880ACLAMP, HOSE

main96111-10710i3SFE..SXM1#199805-200208

main96111-10750i1AZFSE..ACM1#200104

17881HOSE, AIR CLEANER, NO.1

main17881-28130i1AZFSE..ACM1#200104

17893RESONATOR, INTAKE AIR

main17893-16130i3SFE..SXM15199805-200208

main17893-74430i1AZFSE..ACM1#200104

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28010i1AZFSE..ACM1#200104

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10480i1AZFSE..ACM1#200104

52811DUCT, COOL AIR INTAKE, NO.1

main52811-44030iSXM1#199805-200104

main52811-44130iSXM15200104-200208

52812DUCT, COOL AIR INTAKE, NO.2

main52812-44010iSXM1#199805-200104

main52812-44050iSXM15200104-200208

8404

9011906245

main90119-06245

9011906770

main90119-06770

9017606022

main90176-06022

9038710078

main90387-10078

9046706170

main90467-06170

9048015017

main90480-15017

9048023008

main90480-23008

9090406008

main90904-06008

9425010600

main94250-10600

24 parts on this diagram · 4 diagrams in section
