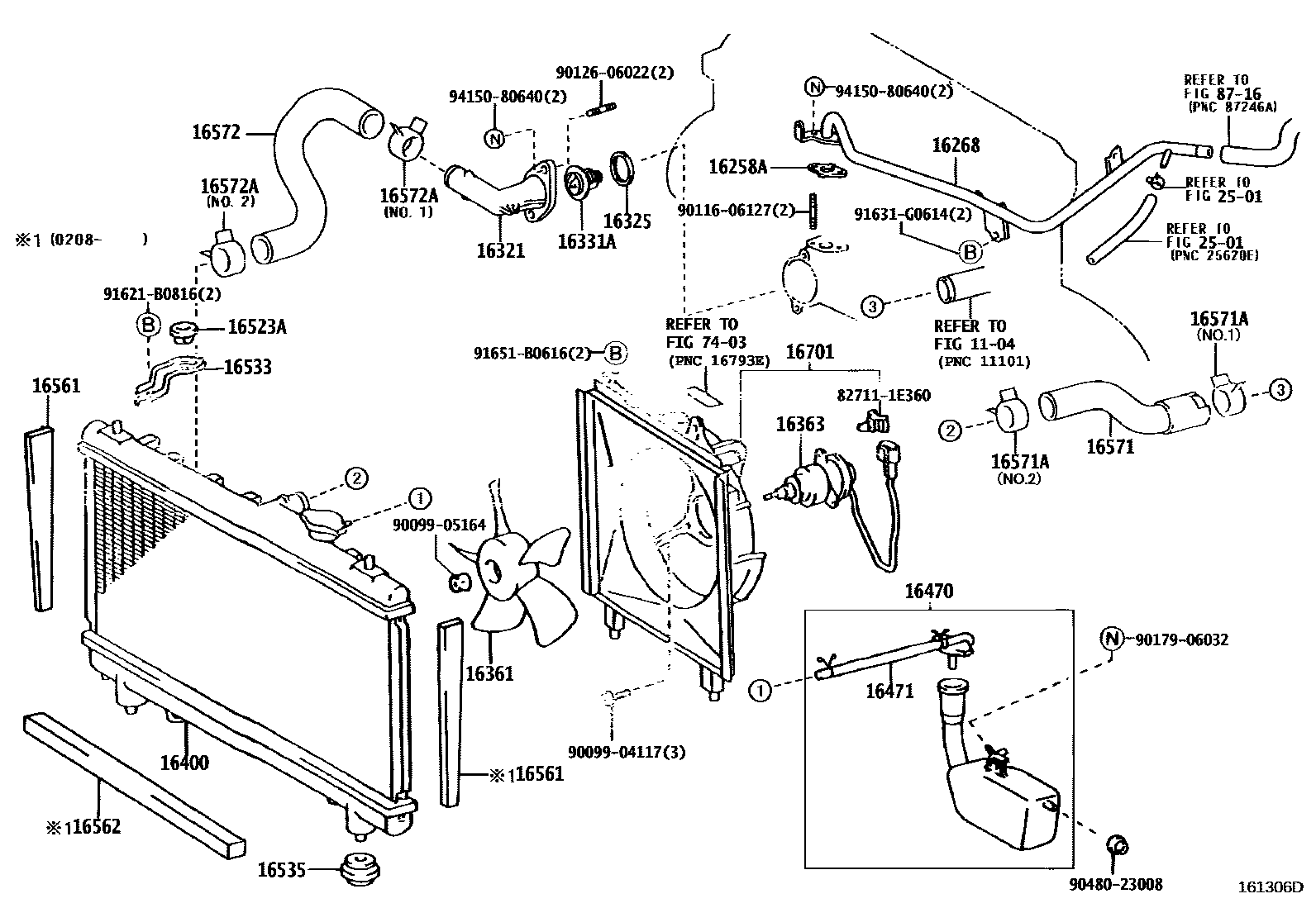

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16258AGASKET(FOR HEATER RETURN)

main16258-28010i1AZFSE..ACM1#200104-200303

main16258-28011i1AZFSE..ACM1#200304-200307

main16258-28030i1AZFSE..ACM1#200308-200409

16268PIPE, WATER BY-PASS, NO.1

main16268-28020i1AZFSE..ACM1#200104-200409

main16268-64100i3CTE..CXM10199805-200104

main16268-74190i3SFE..SXM1#199805-200104

16321INLET, WATER

main16321-28010i1AZFSE..ACM1#200104-200409

main16321-64090i3CTE..CXM10199805-200104

main16321-74050i3SFE..SXM1#199805-200104

16325GASKET, WATER INLET HOUSING, NO.1

main16325-28010i1AZFSE..ACM1#200308-200409

main16325-62010i1AZFSE..ACM1#200104-200308

main16325-63011i3CTE..CXM10; 3SFE..SXM1#199805-200104

16331ATHERMOSTAT

main90916-03046i3CTE..CXM10199805-200104

main90916-03090i3SFE..SXM15200104-200208

main90916-03127i1AZFSE..ACM1#200104-200409

16361FAN

main16361-64080i3CTE..CXM10200104

main16361-74140i3SFE..SXM15200104-200208

16363MOTOR, COOLING FAN

main16363-64150i3CTE..CXM10199805-200104

main16363-74310i3SFE..SXM1#199805-199911

main16363-74311i3SFE..SXM15200104-200208

16400RADIATOR ASSY

main16400-28390i1AZFSE..ACM1#200208-200409

main16400-6A170i3CTE..CXM10199805-200104

main16400-7A262i1AZFSE..ACM10; 3SFE..SXM15200104-200208

16470TANK ASSY, RADIATOR RESERVE

main16470-74350i3SFE..SXM1#199805-200104

16471CAP SUB-ASSY, RESERVE TANK

main16405-74330i3SFE..SXM1#199805-200104

16523ACUSHION, RADIATOR SUPPORT

main16523-74010×2i3CTE..CXM10; 3SFE..SXM1#199805-200104

16533SUPPORT, RADIATOR, UPPER

main16505-64020i3CTE..CXM10200104

main16533-74251×2i1AZFSE..ACM1#200104

16535SUPPORT, RADIATOR, LOWER

main16535-64050×2i3CTE..CXM10200104

main16535-64120×2i1AZFSE..ACM1#200107

main16535-74210×2i1AZFSE..ACM10; 3SFE..SXM15200104-200107

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-28010×2i1AZFSE..ACM1#200208

main16561-64020×2i3CTE..CXM10199805-200104

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-64020i3CTE..CXM10199805-200104

16571HOSE, RADIATOR, INLET

main16571-28150i1AZFSE..ACM1#200104

main16571-64300i3CTE..CXM10200104

main16571-74371i3SFE..SXM1#199805-200104

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1AZFSE..ACM1#200104

main90466-41001×2i3CTE..CXM10199805-200104

main90466-41008×2i3CTE..CXM10200104-200409

main90467-34003×2i3SFE..SXM1#199805-200104

main90467-34004×2i3SFE..SXM15200104-200208

16572HOSE, RADIATOR, OUTLET

main16572-28110i1AZFSE..ACM10200104-200208

main16572-28180i1AZFSE..ACM1#200208

main16572-64290i3CTE..CXM10200104

main16572-74300i3SFE..SXM1#199805-200104

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-37002i1AZFSE..ACM1#200104

main90466-41001×2i3CTE..CXM10199805-200104

main90466-41008×2i3CTE..CXM10200104-200409

main90467-34003i3SFE..SXM1#199805-200104

main90467-34004×2i3SFE..SXM15200104-200208

main90467-34006i3SFE..SXM1#199805-200104

16701SHROUD SUB-ASSY, FAN

main16711-74581i3SFE..SXM1#199805-200104

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904117

main90099-04117

9009905164

main90099-05164

9011606127

main90116-06127

9012606022

main90126-06022

9017906032

main90179-06032

9048023008

main90480-23008

91621B0816

main91621-B0816

91631G0614

main91631-G0614

91651B0616

main91651-B0616

9415080640

main94150-80640

35 parts on this diagram · 8 diagrams in section
