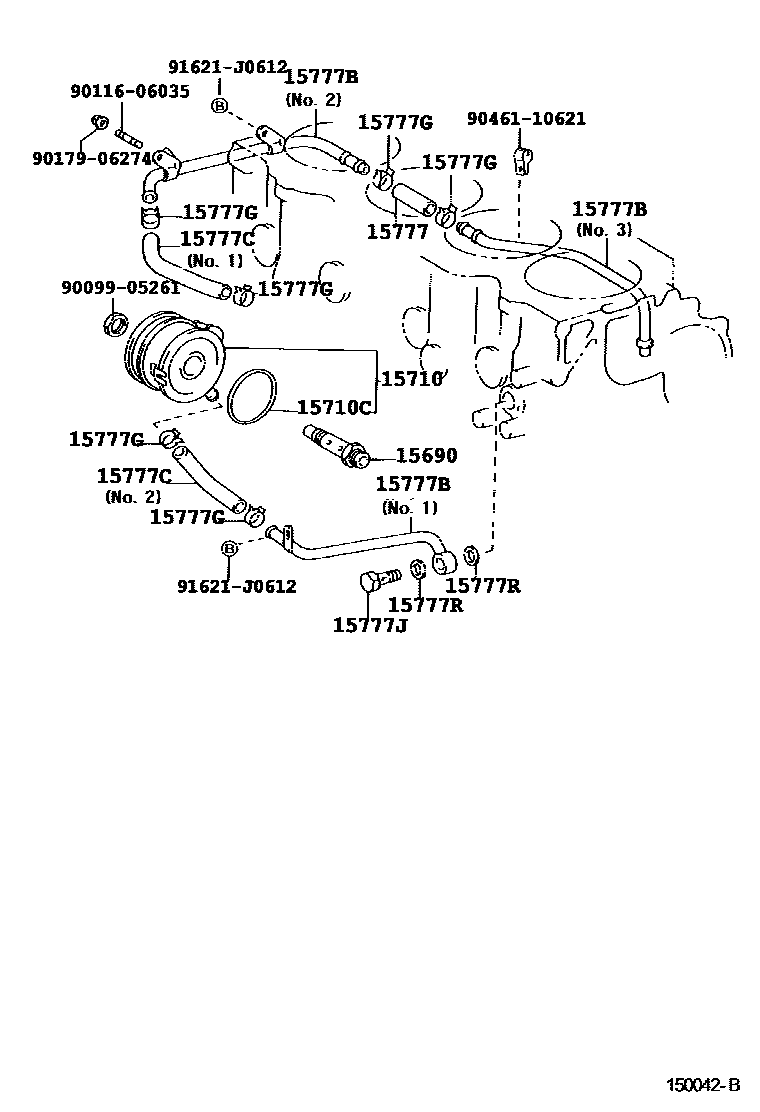

ENGINE OIL COOLER

15690VALVE ASSY, OIL COOLER RELIEF

main15695-64010i3CTE..CXM10199805-200104

15710COOLER ASSY, OIL

main15710-64150i3CTE..CXM10199805-200104

15710CGASKET(FOR OIL COOLER)

main90301-67004i3CTE..CXM10199805-200104

15777HOSE, OIL COOLER

main90445-21006i3CTE..CXM10199805-200104

15777BPIPE, OIL COOLER

main15767-64090i3CTE..CXM10199805-200104

main15768-64120i3CTE..CXM10200104-200409

main15769-64011i3CTE..CXM10199805-200104

15777CHOSE, OIL COOLER

main15777-64060i3CTE..CXM10199805-200104

main15778-64040i3CTE..CXM10199805-200104

15777GCLAMP OR CRIP, HOSE

main90467-20005×6i3CTE..CXM10199805-200104

main96134-41900×6i3CTE..CXM10200104-200409

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i3CTE..CXM10199805-200104

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20014×2i3CTE..CXM10199805-200104

9009905261

main90099-05261

9011606035

main90116-06035

9017906274

main90179-06274

9046110621

main90461-10621

91621J0612

main91621-J0612

14 parts on this diagram · 1 diagram in section
