CAMSHAFT & VALVE

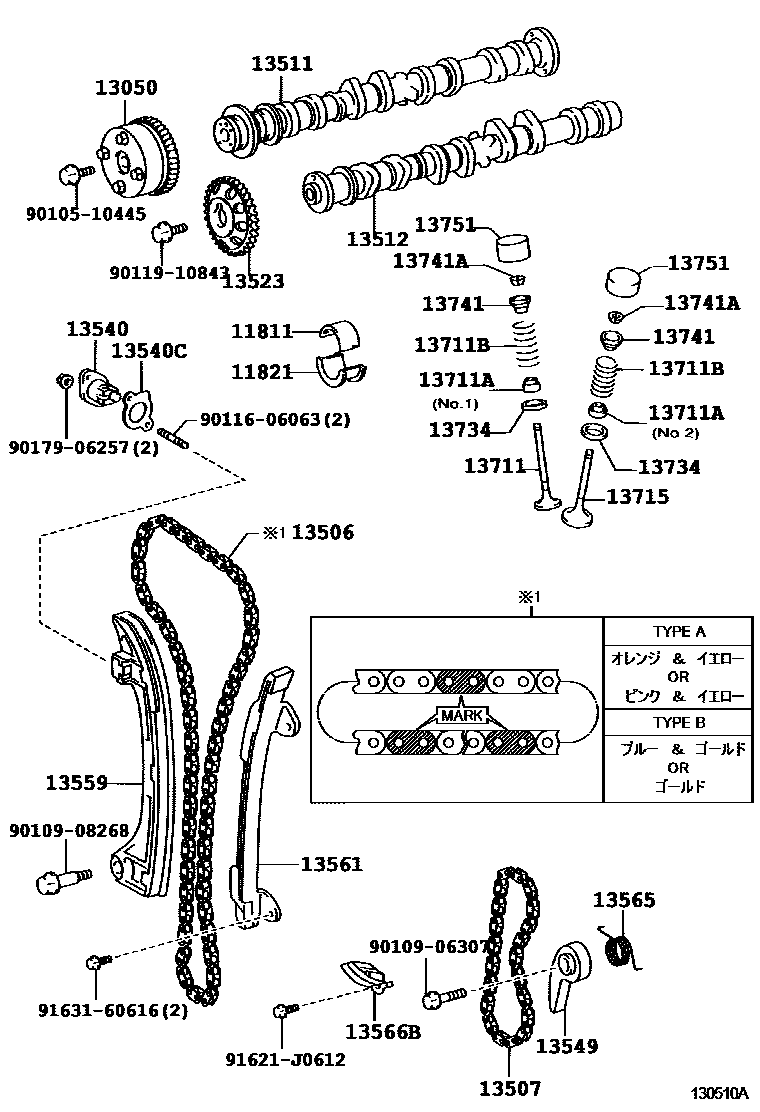

Parts diagram

11811BEARING, CAMSHAFT, NO.1

main11811-28010-01i200104-200409

MARK 1

main11811-28010-02i200104-200409

MARK 2

main11811-28010-03i200104-200409

MARK 3

11821BEARING, CAMSHAFT, NO.2

main11821-28010-01i200104-200409

MARK 1

main11821-28010-02i200104-200409

MARK 2

main11821-28010-03i200104-200409

MARK 3

13050GEAR ASSY, CAMSHAFT TIMING

main13050-28020i200104-200409

13506CHAIN SUB-ASSY

main13506-28010i200104-200409

main13506-28020i200104-200409

13507CHAIN SUB-ASSY, NO.2

main13507-28010i200104-200409

13511CAMSHAFT

main13501-28020i200104-200409

main13501-74050i199805-200104

main13511-64100i199805-200104

13512CAMSHAFT, NO.2

main13502-28010i200104-200409

main13502-74030i200104-200208

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i200104-200409

13540TENSIONER ASSY, CHAIN, NO.1

main13540-28010i200104-200409

13540CGASKET(FOR CHAIN TENSIONER)

main13552-28010i200104-200409

13549PLATE, CHAIN TENSIONER

main13549-28011i200104-200105

main13549-28012i200105-200409

13559SLIPPER, CHAIN TENSIONER

main13559-28010i200104-200409

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-28010i200104-200409

13565SPRING, CHAIN DAMPER

main13565-28011i200104-200105

main13565-28012i200105-200409

13566BGUIDE, TIMING CHAIN

main13566-28010i200104-200409

13711VALVE, INTAKE

main13711-28010×8i200104-200409

main13711-64030×4i199805-200104

main13711-74080×8i199805-200104

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02088×8i199805-200010

main90913-02090×8i199805-200104

main90913-02101×8i200104-200409

main90913-02103×8i200010-200104

main90913-02111×8i200104-200211

main90913-02112×8i200211-200409

main90913-02116×8i199805-200104

13711BSPRING, COMPRESSION(FOR INNER)

main90501-43002×8i200104-200409

main90501-43003×8i199805-200104

main90504-37002×16i199805-200104

main90905-01066×16i200104-200409

13715VALVE, EXHAUST

main13715-28010×8i200104-200409

main13715-64040×4i200104-200409

main13715-74080×8i200104-200208

13734SEAT, VALVE SPRING

main13734-74010×16i200104-200409

13741RETAINER, VALVE SPRING

main13741-22020×16i200104-200107

main13741-22021×16i200107-200409

main13741-43010×8i200104-200409

main13741-50020×16i200104-200208

13741ALOCK, VALVE SPRING RETAINER

main90913-03014×16i200104-200409

main90913-03021×32i200104-200208

main90913-03028×32i200104-200409

13751LIFTER, VALVE

main13751-46030i200104-200409

main13751-46040i200104-200409

main13751-46050i200104-200409

main13751-46060i200104-200409

main13751-46070i200104-200409

main13751-46080i200104-200409

main13751-46090i200104-200409

main13751-46100i200104-200409

main13751-46110i200104-200409

main13751-46120i200104-200409

main13751-46130i200104-200409

main13751-46140i200104-200409

main13751-46150i200104-200409

main13751-46160i200104-200409

main13751-46170i200104-200409

main13751-46180i200104-200409

main13751-46190i200104-200409

main13751-46200i200104-200409

main13751-46210i200104-200409

main13751-46220i200104-200409

main13751-46230i200104-200409

main13751-46240i200104-200409

main13751-46250i200104-200409

main13751-46260i200104-200409

main13751-46270i200104-200409

main13751-46280i200104-200409

main13751-46290i200104-200409

main13751-46300i200104-200409

main13751-46310i200104-200409

main13751-46320i200104-200409

main13751-46330i200104-200409

main13751-46340i200104-200409

main13751-46350i200104-200409

main13751-46360i200104-200409

main13751-46370i200104-200409

main13751-64011×8i200104-200409

main13751-74020×16i199805-200104

9010510445

main90105-10445

9010906307

main90109-06307

9010908268

main90109-08268

9011606063

main90116-06063

9011910843

main90119-10843

9017906257

main90179-06257

91621J0612

main91621-J0612

9163160616

main91631-60616

31 parts on this diagram · 3 diagrams in section
