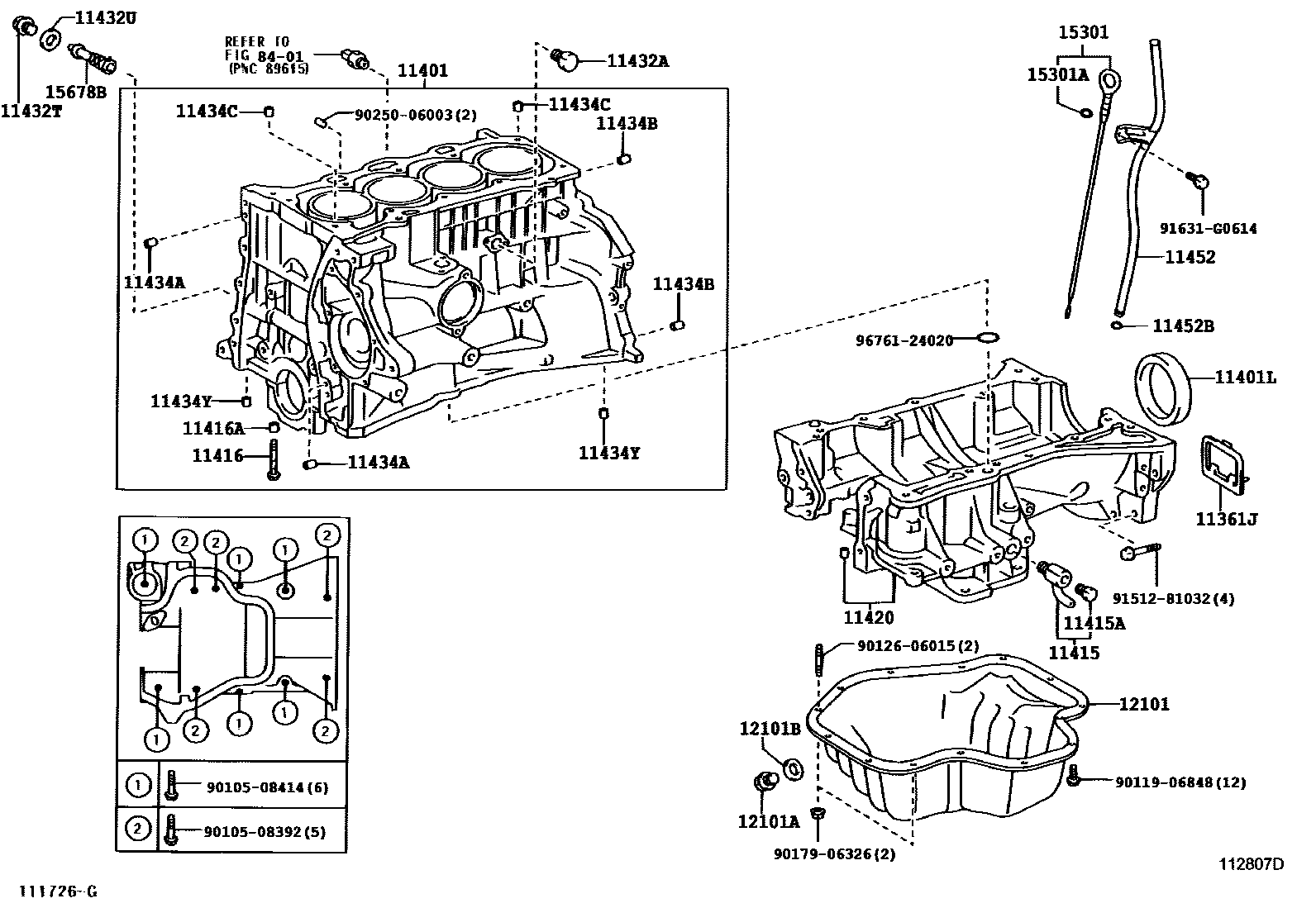

CYLINDER BLOCK

0001 1 0002 1 0003 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i1AZFSE..ACM1#200104

11401BLOCK SUB-ASSY, CYLINDER

main11401-69795i3CTE..CXM10199805-199812

main11401-69796i3CTE..CXM10199812-199908

main11401-69797i3CTE..CXM10199908-200011

main11401-69798i3CTE..CXM10200104-200409

main11401-79805i3SFE..SXM10199805-200104

main11401-80015i3SFE..SXM15200104-200208

main11410-29115i1AZFSE..ACM1#200104-200311

main11410-29195i1AZFSE..ACM1#200311-200409

11401LSEAL, ENGINE REAR OIL

main90311-89003i1AZFSE..ACM1#200104-200409

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i3SFE..SXM1#199805-200104

main90910-09120i1AZFSE..ACM1#200104-200409

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i3SFE..SXM1#199805-200104

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028×10i3SFE..SXM1#199805-200104

main90910-02061×10i3CTE..CXM10199805-199812

main90910-02124×10i1AZFSE..ACM1#200104-200409

main90910-02135×10i3CTE..CXM10199812-200104

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i1AZFSE..ACM1#200104-200409

11420CRANKCASE ASSY, STIFFENING

main11421-28020i1AZFSE..ACM1#200112-200409

main11421-28900i1AZFSE..ACM10200104-200112

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFSE..ACM1#200104-200409

main90345-52003i3CTE..CXM10199805-200104

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i1AZFSE..ACM1#200104-200409

main90341-22001i3CTE..CXM10200104-200409

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14009i1AZFSE..ACM1#200104-200303

main90430-14011i1AZFSE..ACM1#200304-200409

main90430-18001i3CTE..CXM10199805-200104

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08074i1AZFSE..ACM1#200104-200301

main90250-08120×2i1AZFSE..ACM1#200302-200409

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i1AZFSE..ACM1#200104-200409

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14003×2i1AZFSE..ACM1#200104-200409

main90253-14004×2i3CTE..CXM10199805-200104

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074×2i1AZFSE..ACM1#200104-200409

11452GUIDE, OIL LEVEL GAGE

main11452-28010i1AZFSE..ACM1#200104-200301

main11452-28011i1AZFSE..ACM1#200301-200409

main11452-64030i3CTE..CXM10199805-200104

main11452-74031i3SFE..SXM1#199805-200104

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1AZFSE..ACM1#200104-200409

12101PAN SUB-ASSY, OIL

main12101-28050i1AZFSE..ACM1#200104-200409

main12101-64141i3CTE..CXM10199805-200104

main12101-74150i3SFE..SXM15200104-200208

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1AZFSE..ACM1#; 3CTE..CXM10200104-200409

main90341-12026i3CTE..CXM10; 3SFE..SXM1#199805-200104

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3CTE..CXM10; 3SFE..SXM1#199805-200104

15301GAGE SUB-ASSY, OIL LEVEL

main15301-28020i1AZFSE..ACM1#200104-200301

main15301-28050i1AZFSE..ACM1#200301-200304

main15301-28051i1AZFSE..ACM1#200304-200409

main15301-64090i3CTE..CXM10199805-200104

main15301-74010i3SFE..SXM15200104-200208

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1AZFSE..ACM1#200304-200409

15678BFILTER, OIL CONTROL VALVE

main15678-28010i1AZFSE..ACM1#200104-200409
