SHORT BLOCK ASSEMBLY

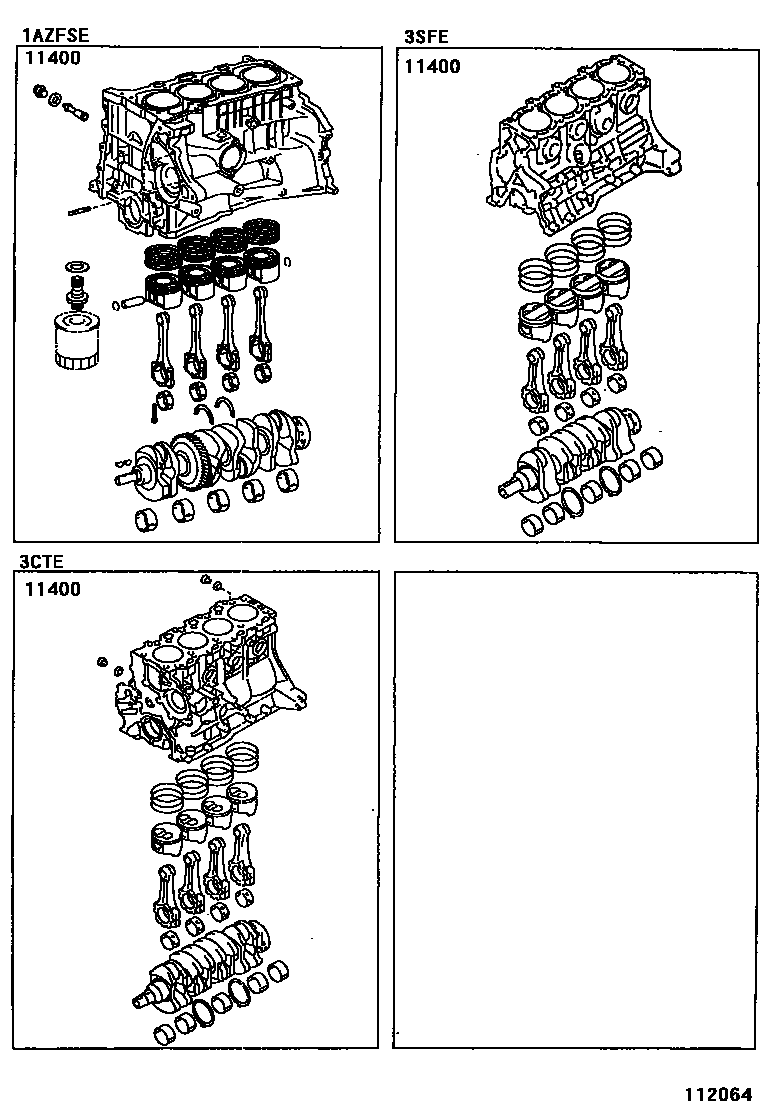

Parts diagram

11400BLOCK ASSY, SHORT

main11400-28060i200104-200409

main11400-64570i199805-199808

main11400-64571i199808-199901

main11400-64572i199901-200104

main11400-64680i200311-200409

main11400-74360i200104-200208

main11400-74370i199805-200104

1 parts on this diagram · 1 diagram in section
